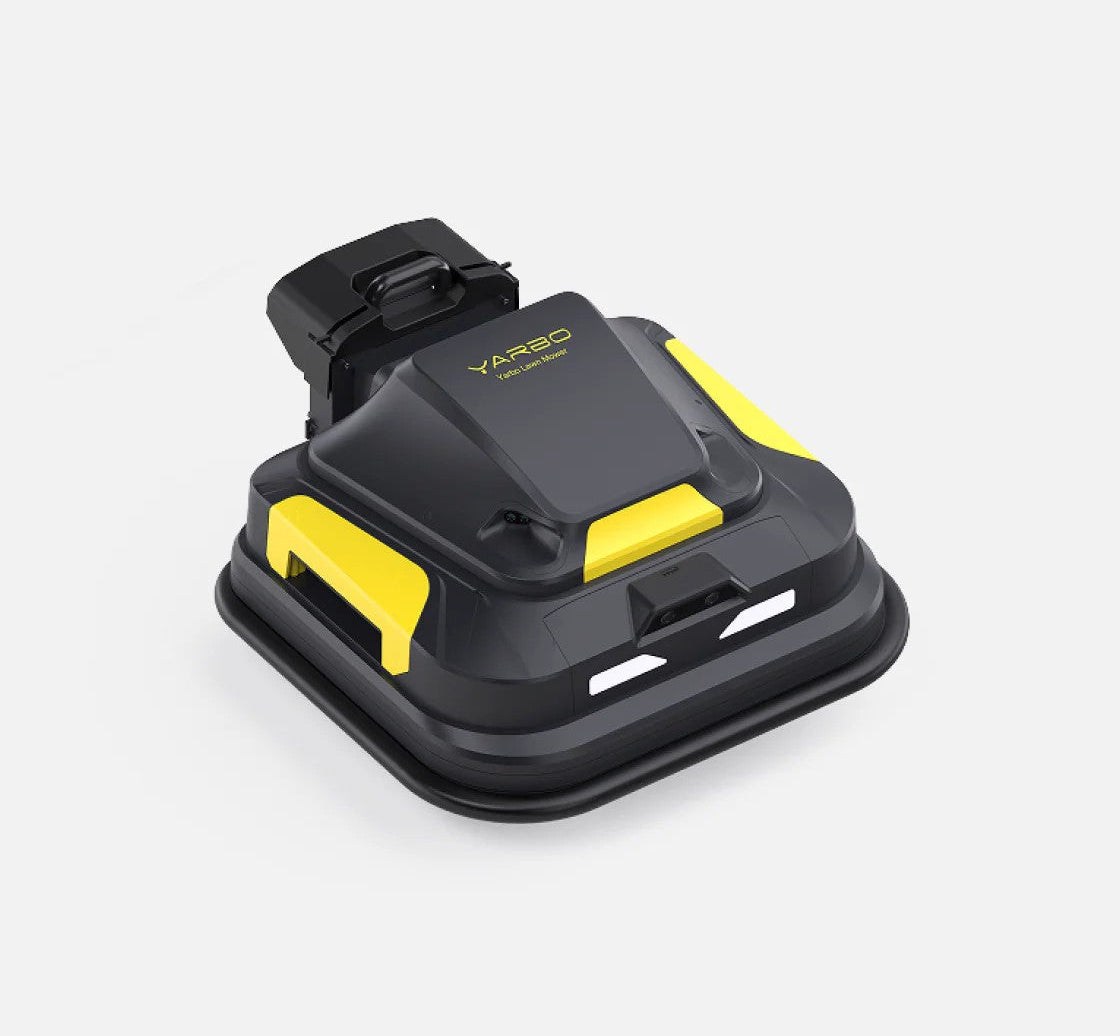

Intelligent, Wire-Free Estate Mowing. Transform your Yarbo Core into a fully autonomous, precision lawn care system. The Standard Yarbo Lawn Mower Module is engineered for expansive residential properties up to 6 acres, delivering a clean 20-inch cutting width via high-efficiency dual 5-blade cutting discs.
Driven by an advanced Spatial AI navigation suite featuring 6 integrated cameras and 4 ultrasonic radars, this module maps complex properties flawlessly—navigating seamlessly around trees, pathways, and playsets while tackling steep 70% (35°) slopes with ease.
- Dual 5-Blade Cutting Discs: Delivers an industry-leading 20-inch cutting swath per pass, deploying ten total precision blades across dual spinning discs for a manicured, professional stripe finish.
- Advanced Spatial AI Safety Suite: Equipped with ultimate 360° situational awareness. A robust array of 6 onboard cameras, 4 ultrasonic radar sensors, and a mechanical bumper map surrounding obstacles in real-time to completely protect pets and property.

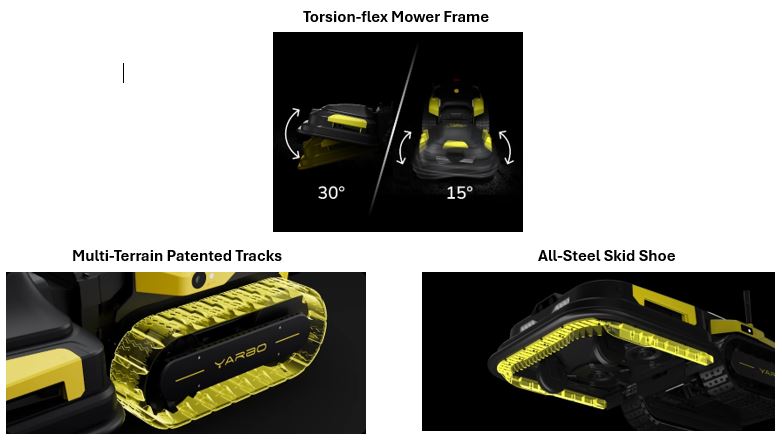

- Flawless Multi-Terrain Navigation: Effortlessly transitions across varied estate landscapes—conquering rolling hills, sudden lawn bumps, dense tree roots, and specialized boundary pathways without any buried perimeter wires.
- Smart Auto-Resume Recharging: When the battery reaches 20%, the system automatically drives back to its dock, fast-charges, and heads back out to pick up exactly where it left off for completely hands-free yard maintenance.
- App-Controlled Electronic Deck Height: Adjust your grass length dynamically from 1.2 inches up to a plush 4.0 inches directly from your iOS or Android device to adapt to changing seasonal turf conditions.
Specification & Manuals
Yarbo Lawn Mower Quick Start Guide
|
Feature |
Specification |
Technical Advantage |
|
Compatibility |

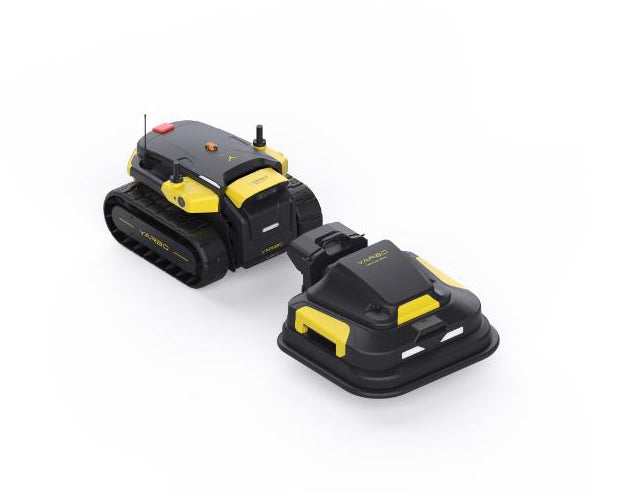

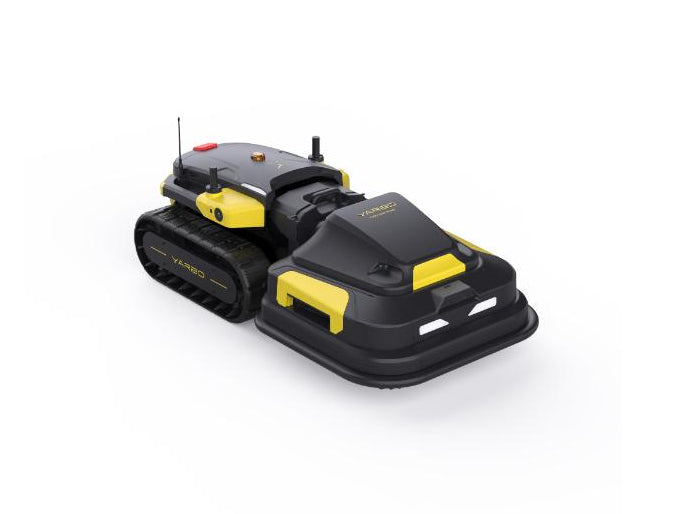

Yarbo Core Chassis (Y Series) |
Interchangeable modular design |
|
Max Mowing Capacity |
6 Acres (25,000 m2) |
Ideal for large estate properties |
|
Daily Operational Cap |
1.7 Acres (6,880 m2) Per Day |
Continuous cyclical maintenance |
|
Cutting Motor Power |
Dual 150W High-Efficiency Motors |
Optimized balance of power & battery runtime |
|
Cutting Architecture |
Dual Discs (5 Blades Per Disc) |
10-blade total count for golf-course finishes |
|
Cutting Width |
20 Inches (500 mm) |
Wide-path design for rapid property clearance |
|
Adjustable Deck Height |
1.2 in to 4.0 in (30–102 mm) |
App-controlled electronic linear motorized adjustments |
|
Spatial AI Radar Suite |
6 Cameras + 4 Ultrasonic Radars |
Advanced 360° object tracking & collision avoidance |
|
Mowing Time Per Charge |
120 Minutes Continuous |
Industry-leading coverage per battery cycle |
|
Max Climbing Grade |
70% / 35° Incline Slope |
Maintains tracking on steep hills and ditches |
|
Module Weight |
68.12 lbs (30.9 kg) |
Lightweight, tool-free quick attachment design |
|
Operating Temperature |
-13°F to 113°F (-25°C to 45°C) |
Rugged all-weather thermal optimization |
