Precision and Power in the Palm of Your Hand
The Milwaukee M12 FUEL™ Barrel Grip Jig Saw (2545-20) is engineered for the professional who demands the power of a corded saw with the maneuverability of a compact 12V platform. Designed for carpenters, remodelers, and cabinet installers, this saw delivers the fastest 12V blade speed under load without compromising on control.
Key Features & Professional Benefits
- POWERSTATE™ Brushless Motor: Delivers 3,000 strokes per minute (SPM) with a 7/8" stroke length, providing the muscle to cut through hardwoods and metals without stalling.
- Advanced Barrel Grip Design: The ergonomic, low-profile shape offers superior control and a closer-to-the-work feel, making it the go-to choice for both standard and inverted (underside) cuts.
- REDLINK PLUS™ Intelligence: Built-in digital communication protects your tool from overloads and overheating, ensuring maximum performance and a longer motor life.
- 5-Level Orbital Action: Quickly toggle between aggressive, fast wood removal and smooth, precise finish cuts with the easy-to-adjust orbital lever.
- Variable Speed Control: A 5-setting dial (800 – 3,000 SPM) allows you to perfectly match the blade speed to your specific material, from delicate laminates to thick steel.
- Tool-Free Blade Changes: Features a quick-eject T-Shank blade clamp, allowing you to swap hot blades safely and instantly without touching them.
- Enhanced Visibility & Cleanliness: Includes a switchable LED light and an integrated dust blower to keep your cut line visible at all times. The blower can be turned off when connected to a vacuum system via the included shroud.
- Built-In Blade Storage: Never hunt for a spare; the on-board storage compartment keeps your extra T-shank blades right where you need them.
What’s Included:
- (1) M12 FUEL™ Barrel Grip Jig Saw (2545-20)
- (1) Non-Marring Shoe Cover & Splinter Guard
- (1) Dust Cover & Vacuum Shroud
- (1) Hex Wrench (On-board storage)
Note: Battery and Charger sold separately.
Specifications & Manual
|
Category |
Specification |
|
Model Number |
2545-20 |
|
Motor Type |
POWERSTATE™ Brushless |
|
Power Source |
M12™ REDLITHIUM™ (Cordless) |
|
Strokes Per Minute |
800 – 3,000 SPM (Variable Speed Dial) |
|
Stroke Length |
0.875 in (7/8") |
|
Orbital Action |
Yes (5-Position Adjustment) |
|
Blade Type |
T-Shank (Tool-Free Quick Eject) |
|
Bevel Capacity |
0°, 15°, 30°, 45° (Bevels to 90°) |
|
Handle Design |
Ergonomic Barrel Grip |
|
Tool Weight |
3.4 lbs |
|
Overall Length |
8.9 in |
|
Overall Height |
7.2 in |
|
Overall Width |
2.9 in |
|
Body Material |
Glass-Filled Nylon (Impact Resistant) |
|
Intelligence |
REDLINK PLUS™ (Overload Protection) |
Frequently Asked Questions
Does this jig saw include a battery and charger?
No, the 2545-20 is sold as a "Tool Only" (Bare Tool). This is ideal for users who already own Milwaukee M12™ batteries and chargers. If you are new to the platform, we recommend pairing this with an M12™ REDLITHIUM™ HIGH OUTPUT™ battery kit for the best performance.
Can I use U-Shank blades with this saw?
No. The M12 FUEL™ Jig Saw is designed specifically for T-Shank blades. T-Shank is the professional standard, providing a more secure grip and better power transfer from the motor to the material.
Is the "Barrel Grip" better than a "D-Handle" saw?

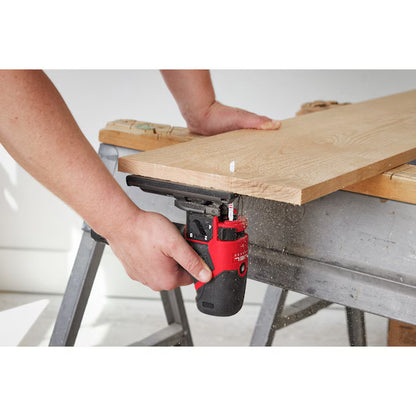

It depends on your preference! Barrel Grip saws (like this one) are favored by professionals for precision work and curved cuts because they allow your hand to be closer to the material. They are also significantly easier to control when cutting from underneath the material (inverted cutting).
How do I change the blade?
This tool features a Tool-Free Quick Eject system. Simply rotate the lever on the front of the tool to release the old blade—it will eject automatically so you don't have to touch a hot blade—and slide the new T-shank blade into place.
Can I turn off the dust blower?
Yes! Unlike many other jig saws, the M12 FUEL™ has an on/off switch for the dust blower. This is incredibly helpful when you are connected to a vacuum system (using the included shroud) and don't want the air blowing dust away from the suction.
What is the maximum bevel angle?
The durable aluminum base plate can be adjusted to 45 degrees in either direction. It features positive detents at 0°, 15°, 30°, and 45° for quick and accurate setup.
