The Mandatory Brain for Nationwide Plug-and-Play Solar Compliance.

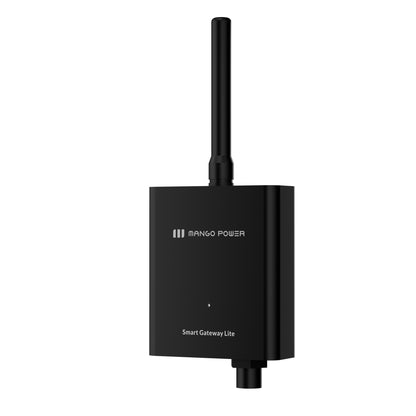

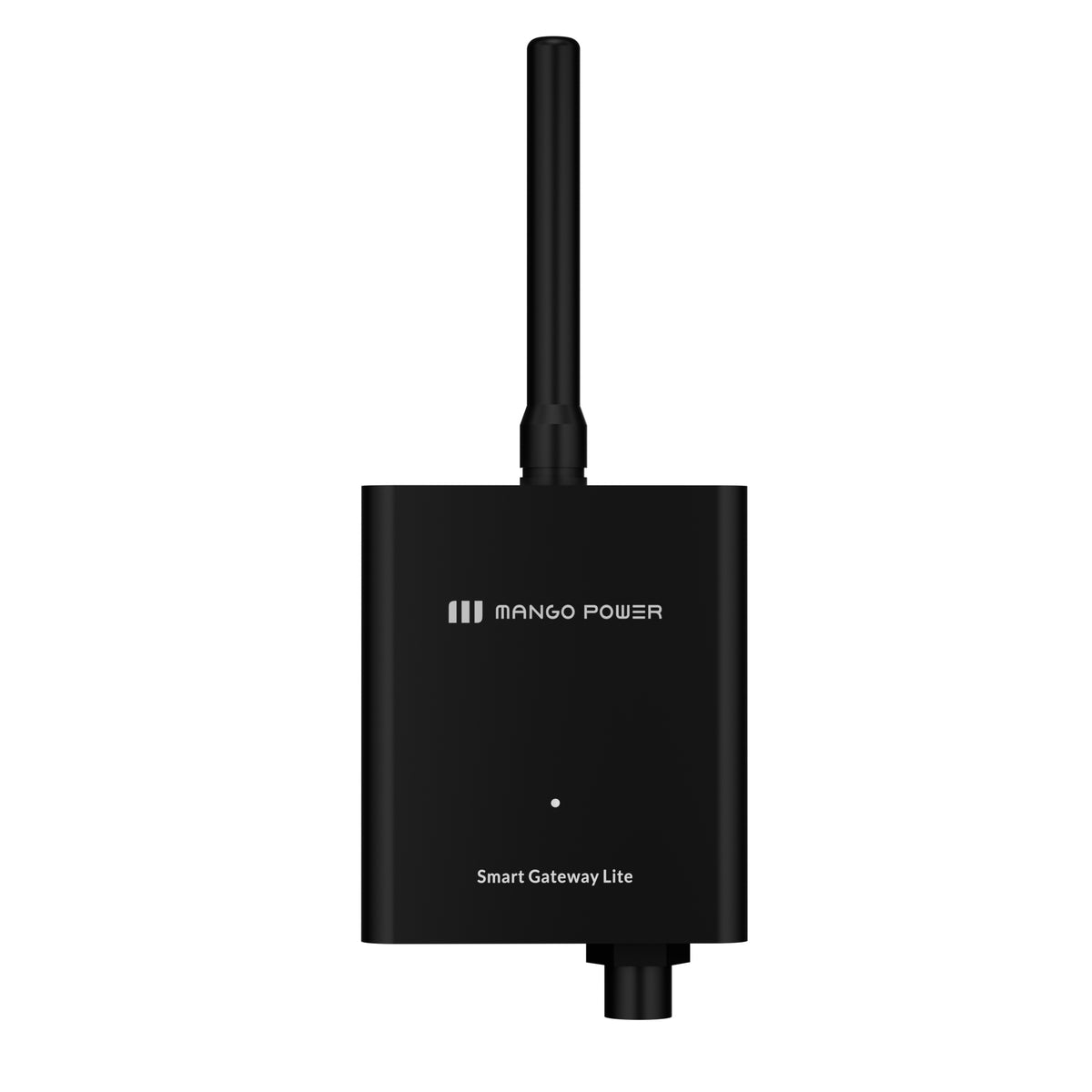

The Mango Power Smart Gateway Lite is the essential grid-interface accessory required to operate Mango Power S PIPV systems anywhere outside the state of Utah. Functioning as an ultra-fast dynamic energy controller, this hardware transforms your property into a fully monitored smart microgrid.
Engineered with an ultra-fast ≤ 0.25s zero-export response time, it instantly detects and blocks excess solar energy from backfeeding into the public utility lines—ensuring absolute compliance with strict local anti-backflow regulations. Featuring whole-home energy tracking with ± 0.5% revenue-grade accuracy, it lets you monitor generation and household consumption patterns in real time via the smartphone app to maximize long-term utility savings.
- Essential Nationwide Utility Compliance: A mandatory grid safeguard. Required for all Mango Power S installations outside of Utah to enable vital zero-export anti-backflow protection and meet strict local utility interconnection approvals.
- Ultra-Fast ≤ 0.25-Second Zero-Export Control: High-velocity grid defense. Runs a blistering quarter-second response loop to immediately sense excess generation and throttle output to match real-time home demand, eliminating backflow headaches.
- ± 0.5% Revenue-Grade Monitoring Accuracy: Commercial-precision energy analytics. Tracks every single watt your household consumes or generates with absolute accuracy, transferring the data natively to your smartphone app.
- Error-Proof Auto-Detecting Installation: Prevents costly setup mistakes. The smart architecture automatically cross-checks your Current Transformers (CTs) and phase configurations during physical placement, instantly alerting you if a line is inverted.
- Flexible Plug-in or Hardwired Architecture: Adapts perfectly to your electrical environment. Supports quick-connect plug-in layouts as well as standard hardwired configurations next to your main panel to match your home setup.
- Seamless AI App Integration & Wi-Fi Syncing: Zero hidden fees. Connects via a built-in 2.4GHz Wi-Fi receiver to transmit granular, real-time energy analytics directly to the free Mango Power app with no monthly subscriptions.
Specifications
📦 What's Included in the Box

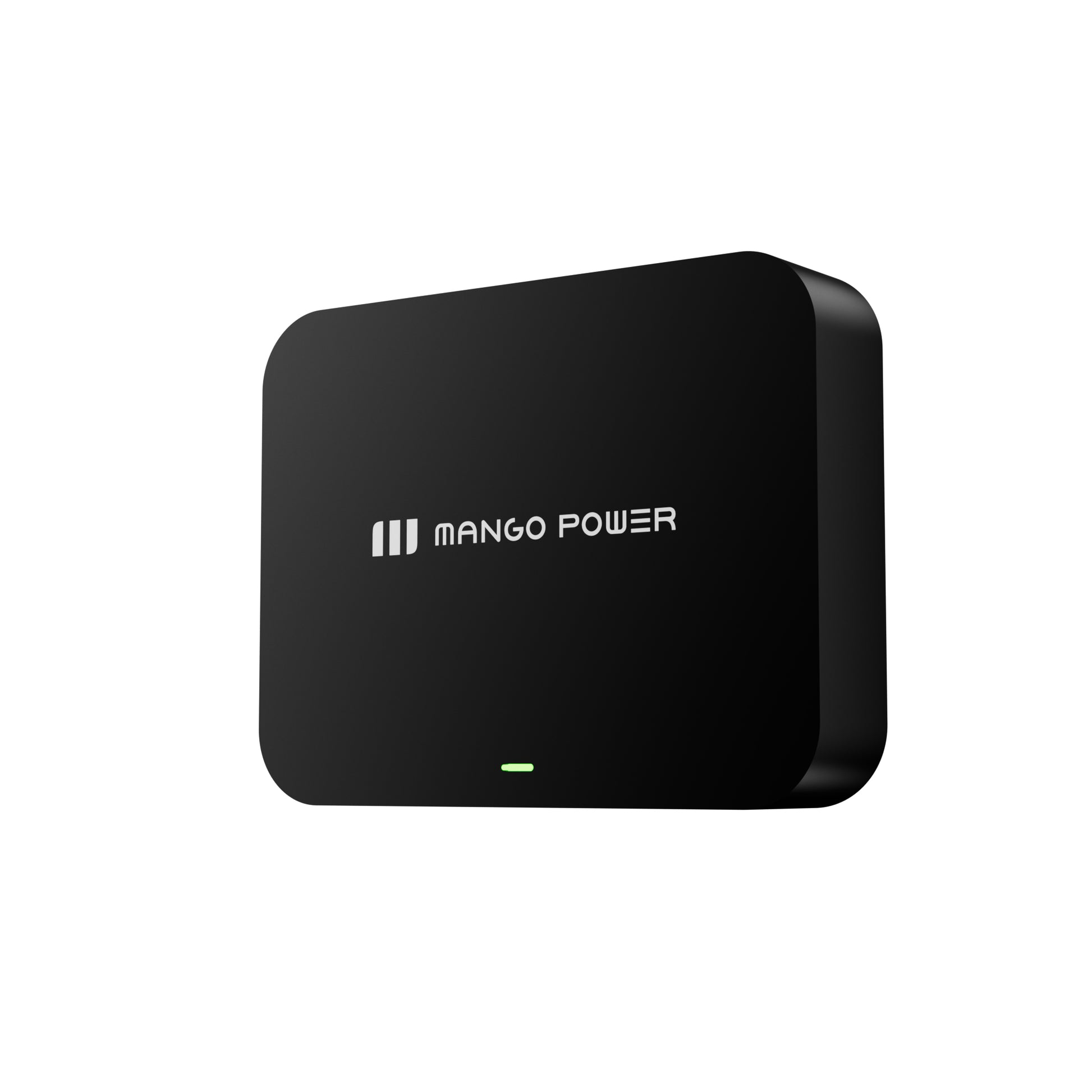

- Mango Power Smart Gateway Lite Core Unit (x1)

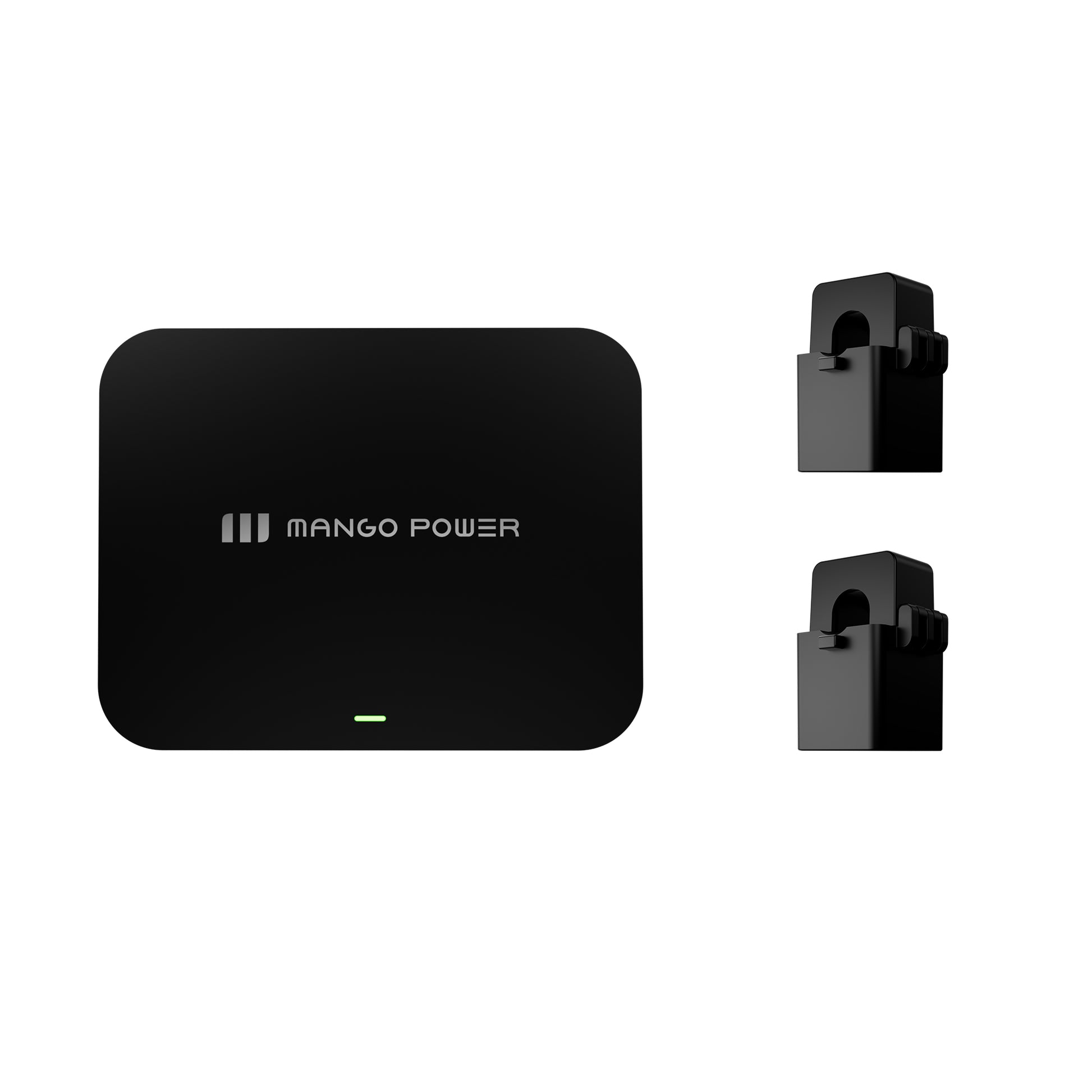

- High-Precision Current Transformers (CTs) & Wiring Accoutrements
- Comprehensive Installation & User Manual (x1)
- Official Manufacturer Warranty Card (x1)
|
Feature |
Specification Data |
Technical Advantage |
|
Product Classification |
Zero-Export Home Energy Management Gateway |
Required compliance hardware for out-of-state use |
|
Maximum Current Capacity |
200 Amps Continuous |
Tailored for standard residential electrical mains |
|
Anti-Backflow Speed |
≤0.25 Seconds (≤250ms) |
Near-instant export limitation to prevent grid errors |
|
Metering Precision |
±0.5% Voltage & Power Accuracy |
Revenue-grade tracking logs every watt reliably |
|
AC Input Voltage Window |
100V∼240V AC (Line-to-Neutral) |
Adapts easily across traditional household splits |
|
Mains Frequency Range |
45Hz∼65Hz (±0.2%) |
Native 60Hz calibration for standard North American grids |
|
Network Interface |
Wi-Fi (2.4GHz), Max RF Power <20dBm |
Connects smoothly to home routers for remote app use |
|
Ingress Shielding Rating |
IP20 Rated (Indoor Enclosure) |
Protected from dust; must be placed in dry locations |
|
Operating Temp Window |
-13°F to 131°F (-25°C to 55°C) |
Broad thermal operating range for indoor panels |
|
Form Factor Dimensions |
125.6×97.6×28.6 mm |
Ultra-compact, clean footprint takes up minimal wall space |
|
Physical Component Weight |
0.2 kg (0.44 lbs) |
Ultra-lightweight construction for clean mounting |
|
Ecosystem Compatibility |
Exclusively for Mango Power S PIPV Systems |
Custom communication protocol for native brand sync |
|
Warranty Backing |
3-Year Manufacturer Warranty |
Professional long-term hardware reliability guarantee |
