Mango Power S Pro 5000W Microinverter Set (10x) + Gateway

Maximum Harvest. Zero Grid Hassles.

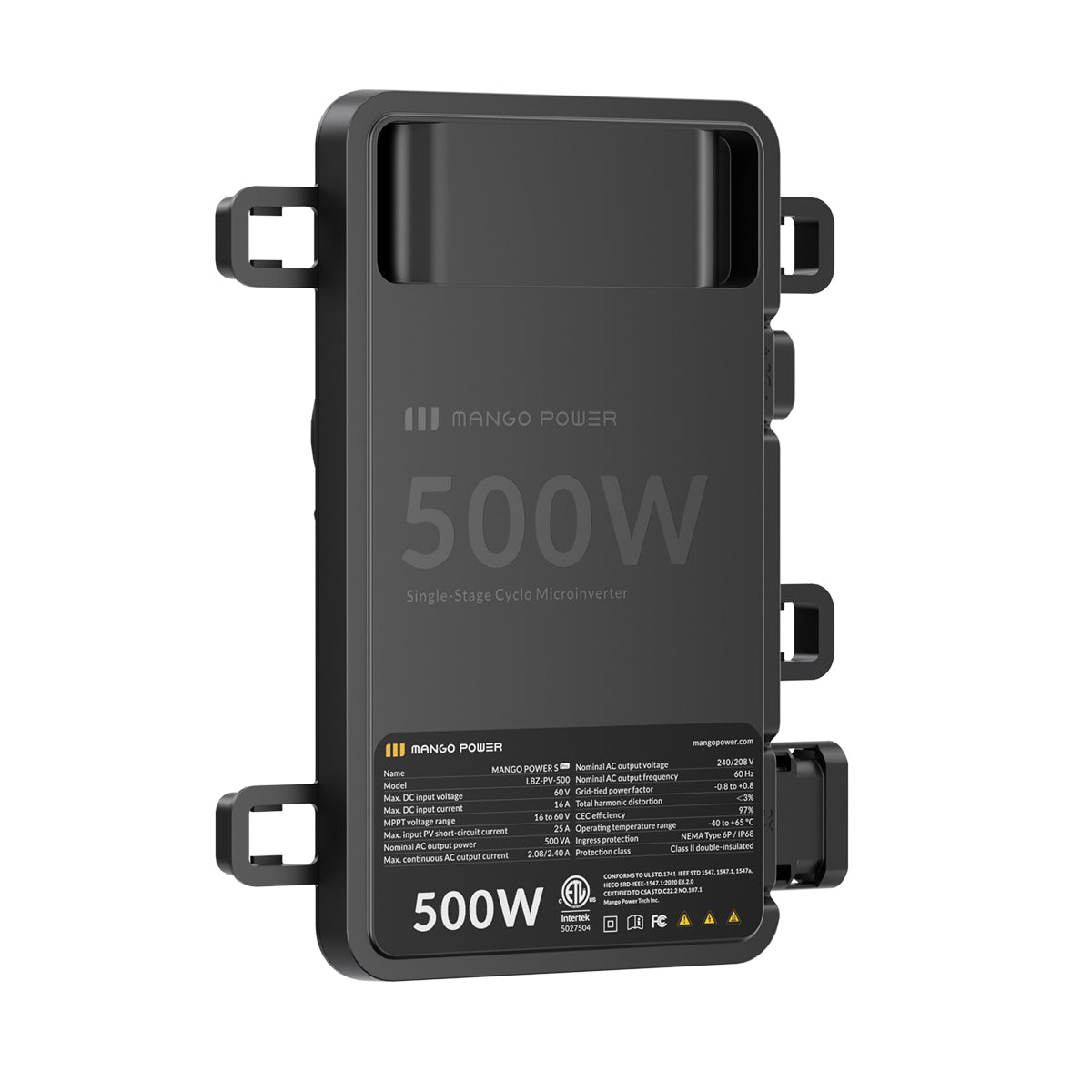

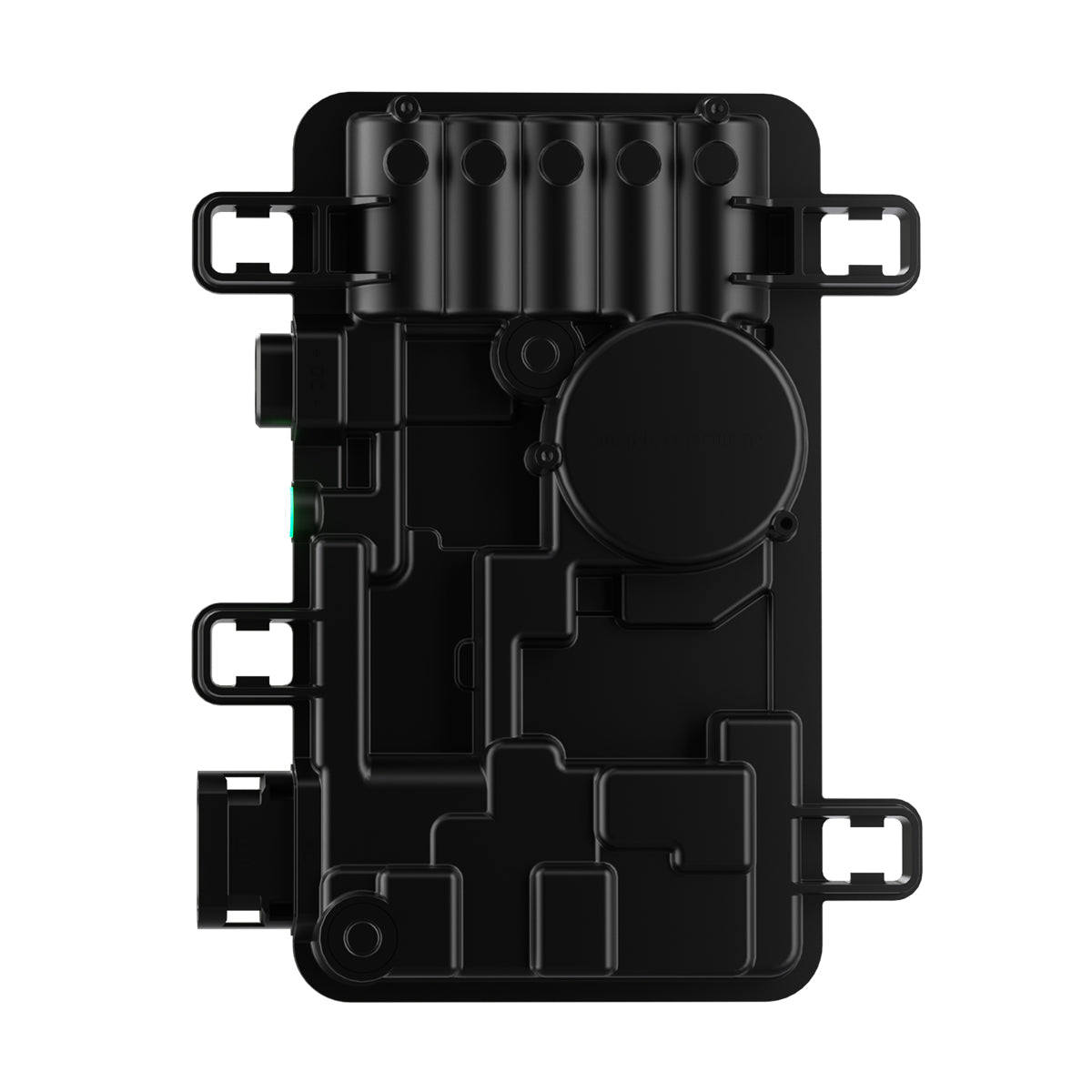

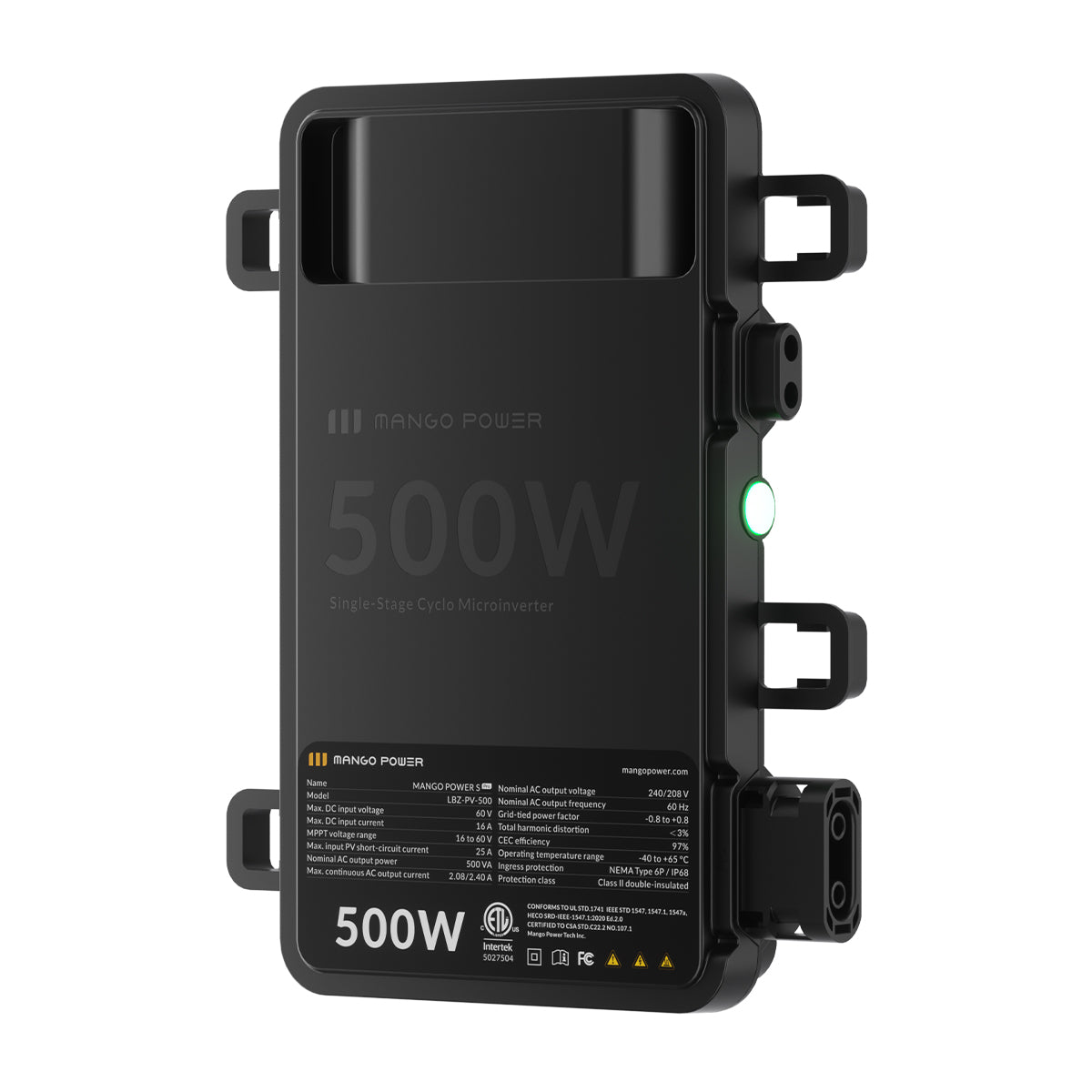

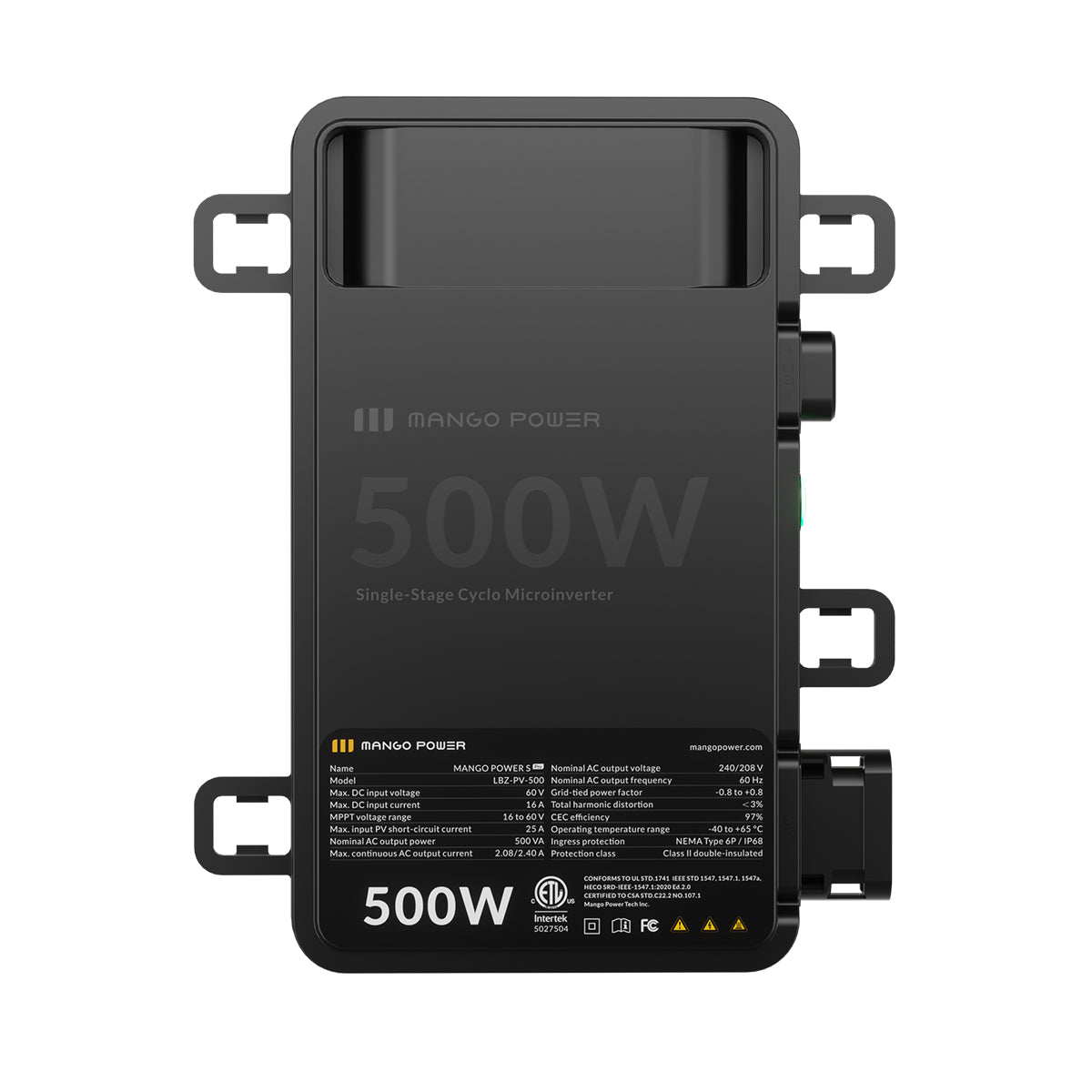

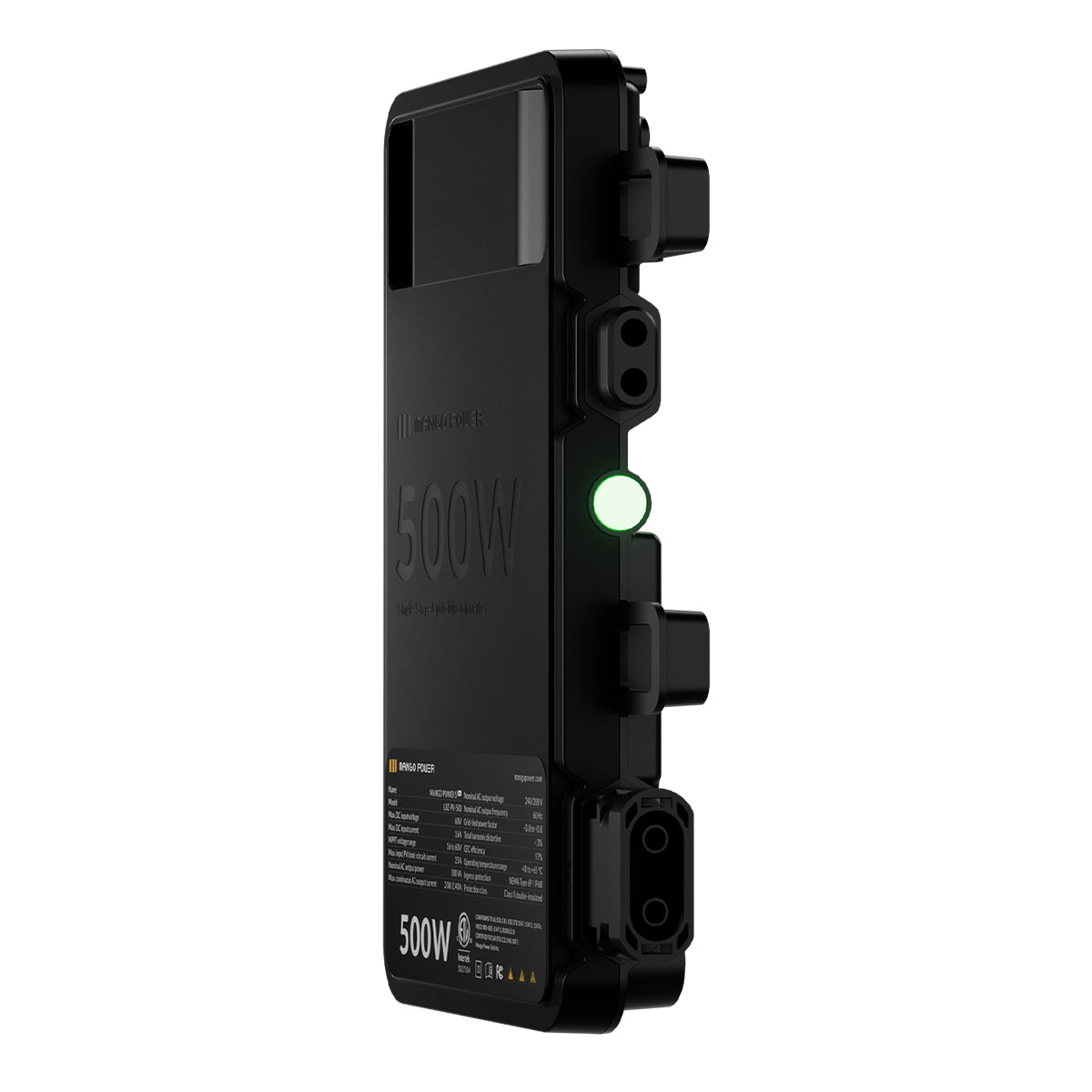

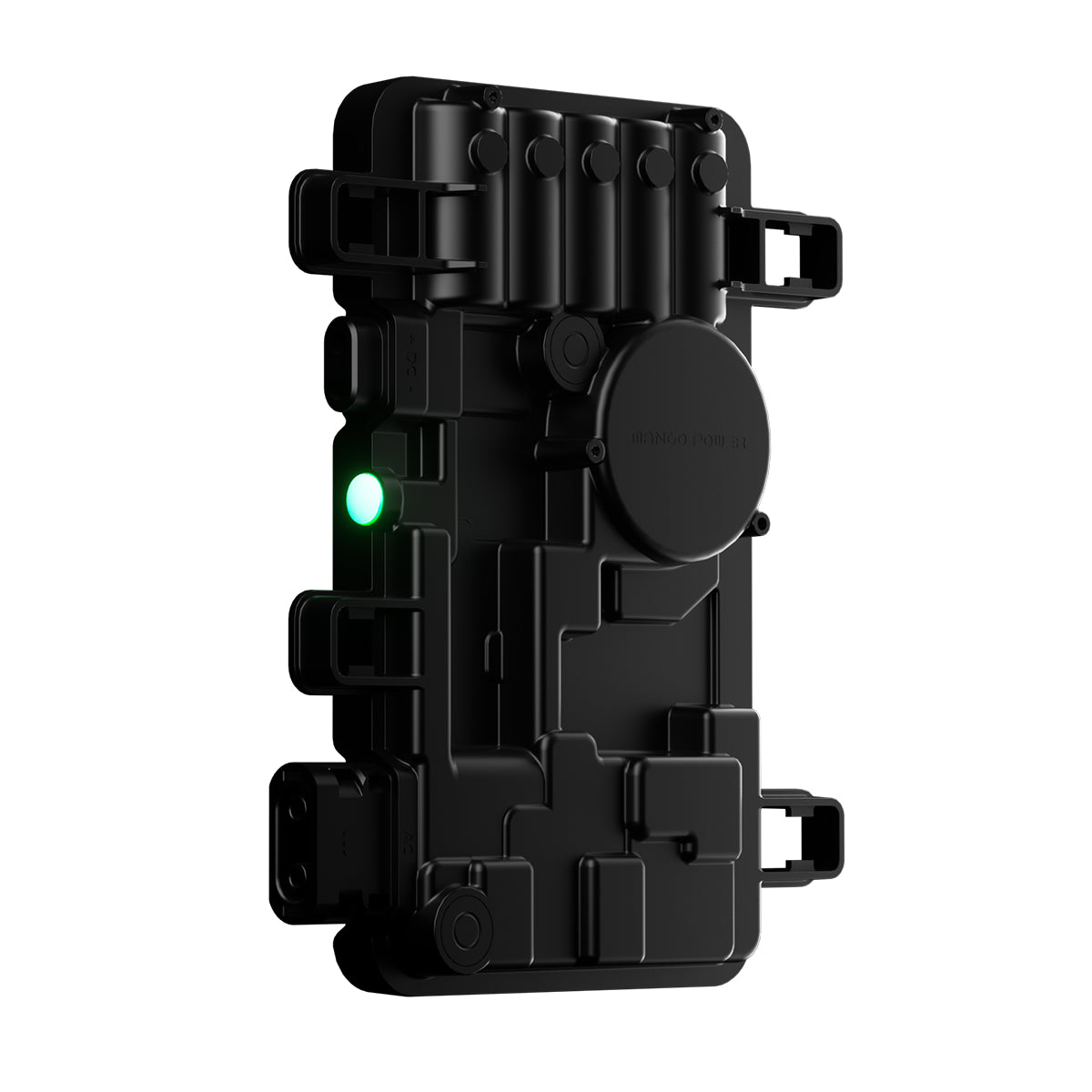

Scale your home solar with the ultimate rooftop optimization system. The Mango Power S Pro 5000W Microinverter Set includes ten high-performance 500W Single-Stage Cyclo Microinverters paired perfectly with the Mango Power 200A Zero-Export Smart Gateway.

Built to adapt to any roof layout, these microinverters isolate every single solar panel, ensuring that localized shading never throttles the rest of your system. Featuring a 30% reduction in internal components and a double-insulated chassis that requires no extra grounding wire, installation is dramatically simplified. With the included Gateway deploying ultra-fast 200ms anti-backflow protection, this bundle delivers a massive 5000W capacity while instantly satisfying strict nationwide utility regulations—no separate smart meter required.

• Single-Stage Cyclo Topology (2.5x Reliability): Simpler is stronger. By removing redundant power conversion stages, the microinverters establish a shorter, highly optimized energy path. Fewer parts mean 2.5x higher hardware reliability.

• No Grounding Wire Required: Save hours on installation. The low-voltage architecture utilizes a high-performance, weather-resistant plastic enclosure that provides natural Class II electrical insulation. Active monitoring ensures safe isolation without the need for extra grounding runs.
• Full-Spectrum 97% CEC Efficiency: Maximize solar harvesting from sunrise to sunset. While traditional inverters wait for high noon, this system wakes up earlier in the morning and runs later into the evening, extracting more usable power.

• Ultra-Fast 100μs Rapid Shutdown (RSD): Unmatched electrical safety. In the event of a grid anomaly, the system triggers an emergency shutdown in 100 microseconds—stopping power flow 300,000 times faster than standard national safety codes require.

• Hermetically Sealed NEMA Type 6P / IP68: Engineered to withstand the harshest environments. The ultra-lightweight (1.2 kg) fanless enclosure uses full potting sealing technology, allowing it to operate flawlessly even if temporarily submerged in water or subjected to -40°F freezes.

• Zero-Export Gateway Included: Delivers ultra-fast ≤ 200ms anti-backflow protection. It automatically throttles your export to match real-time home consumption so you stay fully compliant with local utility anti-backfeed rules.

Effortless Plug-and-Play Setup

Specifications

• Mango Power S Pro - Microinverter User Manual
• Mango Power S Pro - Quick Installation Guide

⚖️ Installation and State Regulations

Utah Residents: Due to Utah state legislation H.B. 340 (Solar Power Amendments), Mango Power systems are currently approved for standard plug‑and‑play sale and installation. (Note: The system meets all elite North American power grid certifications, including UL 1741 and IEEE 1547:2018).

All Other U.S. States: For customers outside of Utah, this hardware is fully compliant because it includes the Mango Power Smart Gateway. This gateway enables mandatory Zero Export functionality, blocking excess energy from feeding back into the public grid. Standard compliance still requires:

1. Professional Electrical Inspection: Depending on your local utility rules.
2. Successful Grid Interconnection Approval: Please verify specific installation requirements with your local government or utility provider.

FAQs

• Does the microinverter need an extra grounding wire? No. The microinverter case uses high-insulation composite material with electrical isolation and active monitoring, ensuring safe isolation between accessible parts and internal circuits. No extra grounding is required.
• Why does the microinverter use a plastic enclosure instead of metal? This is a design choice based on safety and durability, not cost reduction. The low-voltage single-stage architecture enables the use of a high-performance plastic enclosure that offers natural electrical insulation, corrosion resistance, and significantly reduced weight (only 1.2 kg).
• What is the difference between 120V (280W) and 240V (500W) configurations? By default, the microinverter firmware limits output to 280W when plugged into standard 120V outlets to maintain compliance with US plug-in solar safety limits. However, the hardware is fully capable of continuous 500W output. When hardwired to a 240V circuit by a licensed electrician (and upgraded via OTA kit upgrade), the unit auto-detects the 240V input and automatically switches to its full 500W power profile.
• If the grid goes down, will the microinverters keep pushing power? No. The Mango Power S Pro includes certified anti-islanding protection. If the grid loses power—whether due to a tripped breaker or a utility outage—the inverter immediately stops exporting power to protect utility workers. It will only resume operation once grid stability is restored and synchronized.
• Do I need to buy a separate smart meter to monitor my home's energy? No. This specific bundle includes the 200A Zero-Export Gateway. It provides whole-home energy monitoring (tracking your home usage, solar generation, and grid flow) in real-time, eliminating the need to purchase an expensive third-party smart meter.
