Turnkey Off-Grid Independence.

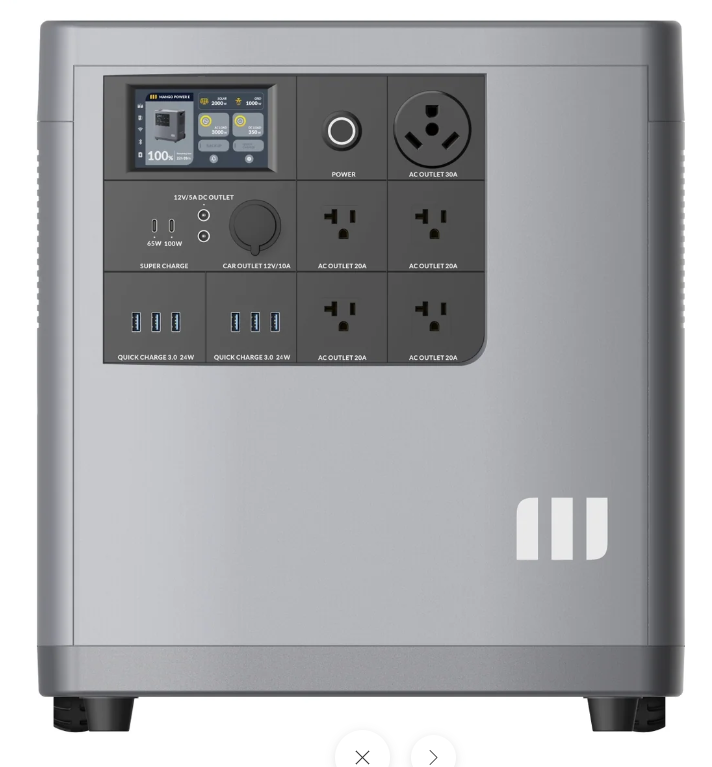

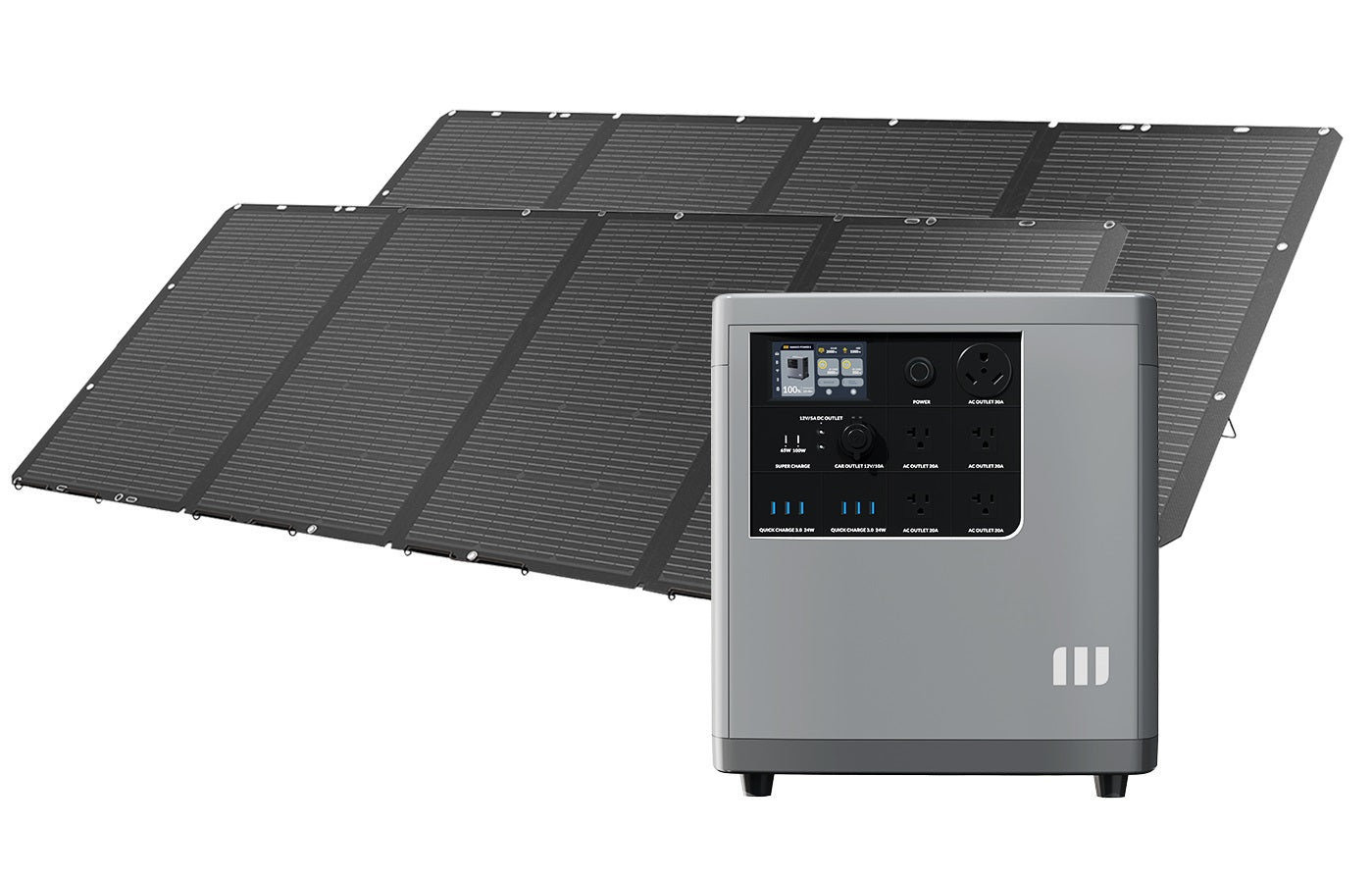

The Mango Power E 120V Solar Generator Kit pairs the industry’s most resilient battery backup station with two ultra-light, impact-resistant 200W solar panels. Delivering a robust 3.53kWh capacity and a continuous 3,000W / 120V pure sine wave output, this complete kit is engineered to sustain your essential household appliances for 2 to 3 days entirely off-grid.
Outfitted with an ultra-fast 20ms automatic backup transfer mode, it shields your home, medical equipment, and electronics from sudden power outages while harvesting clean solar energy all day to keep your family permanently protected.
- 2-3 Days of Complete Sustainable Backup: A turnkey renewable energy ecosystem. Combines 3,533Wh of storage with two 200W premium solar panels to run refrigerators, lighting, kitchen appliances, and well pumps without ever depending on the grid.
- Ultra-Fast 20ms Emergency UPS Switchover: Seamless outage defense. When the local grid drops, the Mango Power E automatically activates its backup mode in a blistering 0.02 seconds (20ms), keeping critical electronics running without a single reboot.

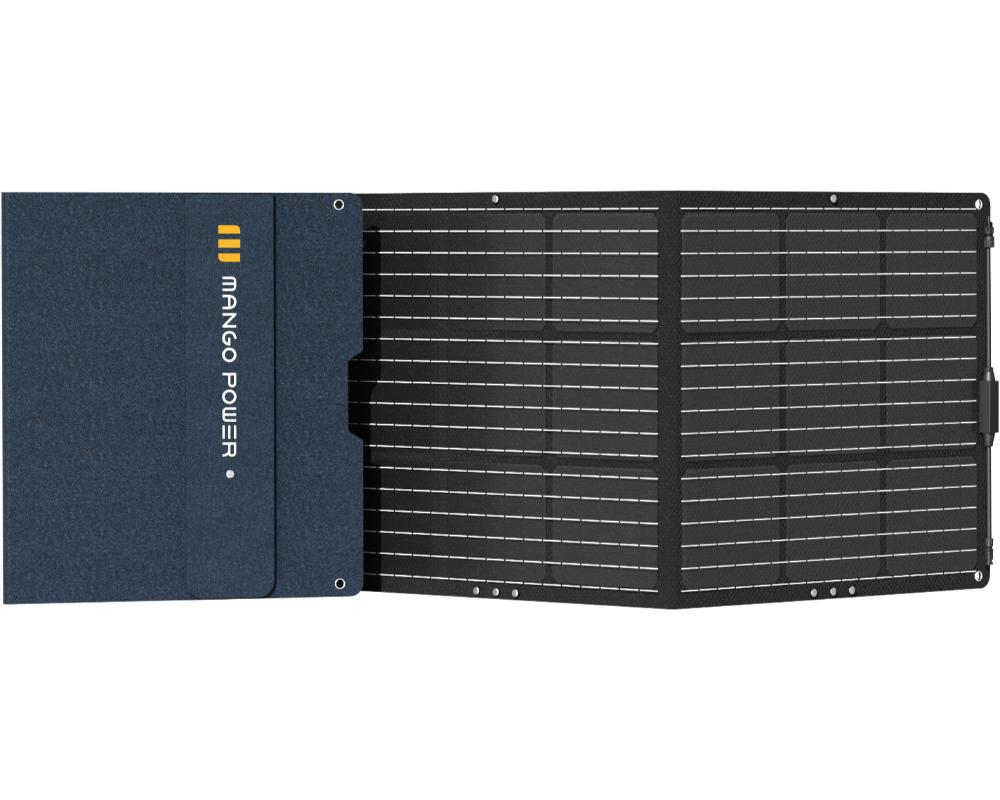

- Two High-Efficiency 200W Impact-Resistant Panels: Included standard. These premium solar arrays are engineered to be ultra-lightweight, highly efficient in low-light environments, and structurally reinforced against severe weather, heavy impacts, and outdoor wear.
- 20-Year Lifespan via CATL EV-Grade LFP Cells: Driven by world-class Lithium Iron Phosphate (LFP) chemistry trusted by top electric vehicle brands. Offers a massive 6,000 charge cycles and includes a manufacturer-backed 10-year battery cell warranty.
- High-Velocity Grid & Solar Recovery: Realize true energy flexibility. Using the standard included AC charging cables, safely top-off your battery station anywhere. To unlock ultimate blazing speeds—charging from 0% to 80% in just 60 minutes and a full 100% saturation in 1.5 hours—simply connect to a compatible 30A AC outlet via the specialized 30A fast charging cord (available separately).
- Optimized Plug-and-Play Solar Ingestion: Built to exploit high-voltage inputs. The integrated MPPT controller manages a wide solar input range (60V–150V, max 2,000W), charging the system from 0% to full in approximately 9 hours of direct daylight.
Specifications
📦 What's Included in This Bundle
- Mango Power E Portable Power Station (x1)
- High-Efficiency 200W Portable Solar Panels (x2)
- Standard AC Wall Charging Cable (x1)
- Solar Input Cable (x1)
- Quick-Start Operational Integration Guides
|
Feature |
Specification Data |
Bundle Technical Advantage |
|
System Classification |
Turnkey Portable Solar Generator Kit |
Immediate backup with zero assembly required |
|
Storage Base Capacity |
3,533Wh (3.53 kWh) |
Sustainable power for critical circuits |
|
Continuous Power Output |
3,000W Continuous / 120V Pure Sine Wave |
Safely runs heavy-duty standard appliances |
|
Solar Harvesting Array |
2x 200W Monocrystalline Panels |
Premium weather-proof, ultra-light layout |
|
UPS Automation Transfer |
20ms (0.02 Seconds) |
Instant seamless device protection |
|
Solar Input Window |
Max 2,000W Solar Allowance (60V–150V) |
High-velocity solar processing efficiency |
|
AC Charging Speed (Standard) |
~2 to 2.5 Hours to Full Charge |
Safe, reliable wall charging using included cables |
|
AC Charging Speed (Fast) |
90 Mins to Full Charge (1 Hour to 80%) |
Requires a 30A Fast Charging Cable (Sold Separately) |
|
Daylight Solar Charging |
~9 Hours under direct sunlight |
Reliable, zero-cost off-grid field recovery |
|
Battery Lifespan Cap |
6,000 Cycles to 70% Base Capacity |
Designed for over 20 years of active use |
|
Manufacturer Warranty |
10-Year CATL Battery Cell Warranty |
Industry-leading tier-one premium security |
|
Operational Temp Floor |
-4°F to 113°F (-20°C to 45°C) |
Engineered for extreme winter/summer defense |
|
Chassis Weight |
100.1 lbs / 45.4 kg (Station Unit) |
Built-in mobility wheels and transport arm |
Serial and Parallel Connection
The solar input voltage range for Mango Power E is 60V-150V, with a maximum input power of 2000W. Please connect a minimum of two solar panels in series, and up to three solar panels are supported. Parallel cables are included in the accessories list.
Complete Your Setup:
Maximize Your Charging Velocity: Want to achieve a full AC charge in just 90 minutes? The specialized Mango Power E 30A Fast Charging Cable is required to unlock the unit's maximum 3,000W AC input threshold. Don't get caught waiting on a slow charge during severe weather cycles—[Click here to add the 30A Fast Charging Cable to your cart].
Unlock Complete 240V Home Backup: Pair two Mango Power E units with the Mango Power mSocket Pro adapter to instantly upgrade your system into a split-phase 240V emergency power matrix capable of driving central air conditioning systems and major household appliances.
