Ultra-Light 2.6 lbs | Direct Device Charging | IP68 Waterproof

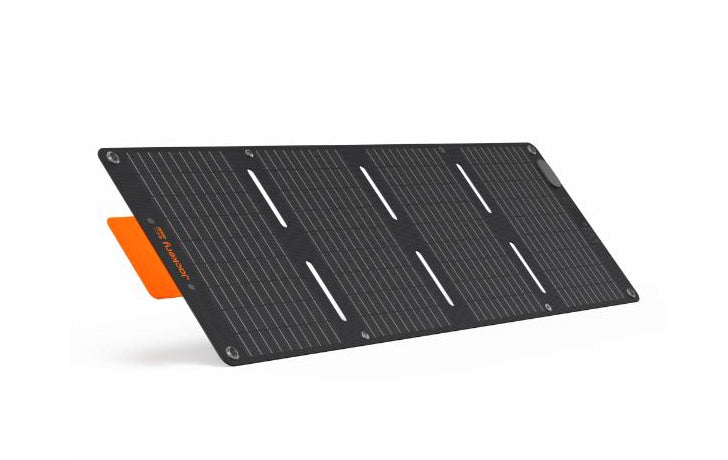

Power That Fits in Your Backpack The SolarSaga 40W is an ultra-portable, four-fold solar panel designed for hikers, anglers, and outdoor enthusiasts. Weighing just 2.6 lbs—roughly the same as a standard laptop—it provides a rugged, dependable power source for remote adventures without the bulk.
Why the SolarSaga 40W Mini Stands Out:

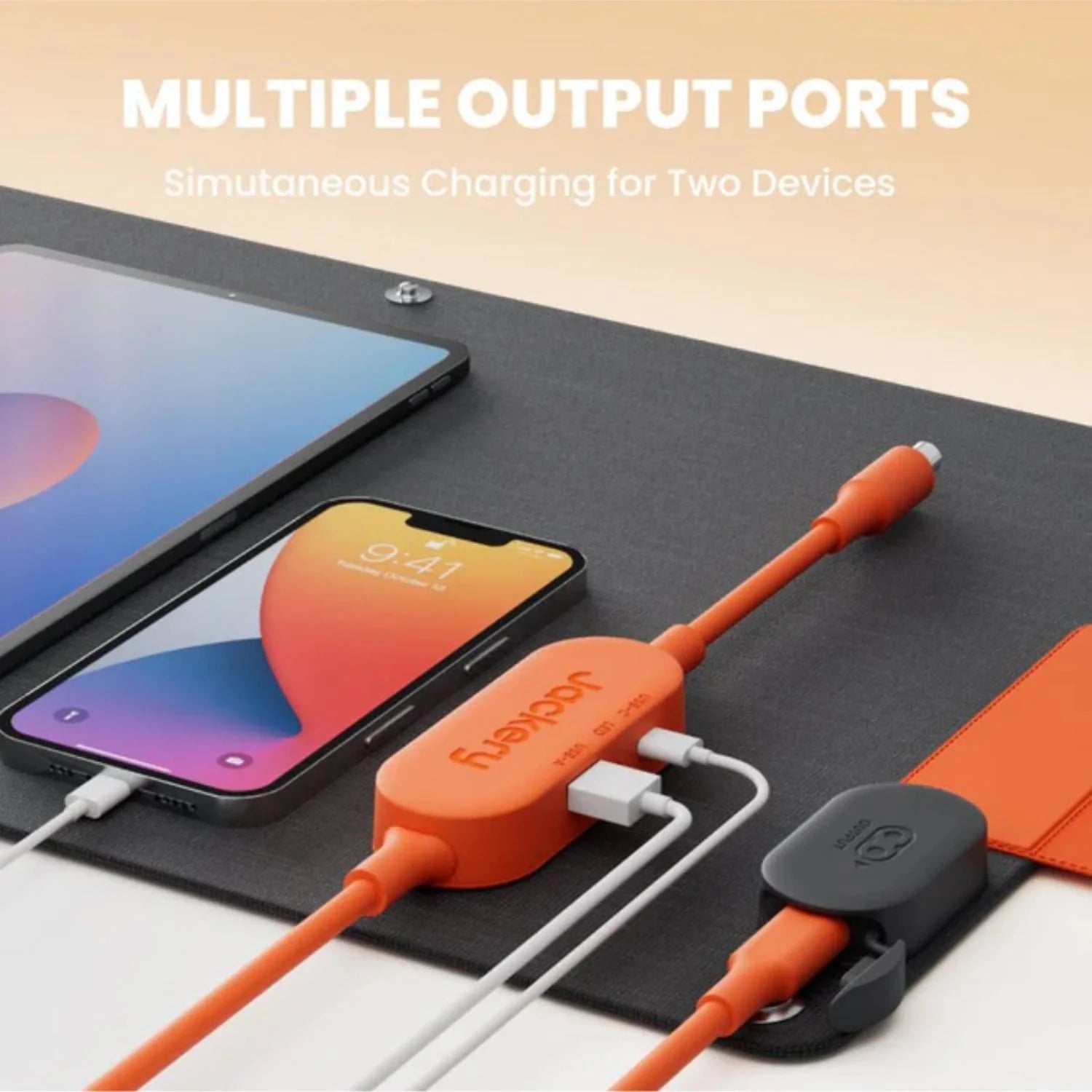

- Direct Device Charging: No power station? No problem. Use the built-in USB-C and USB-A ports to charge your phone, camera, or GPS directly from the sun.

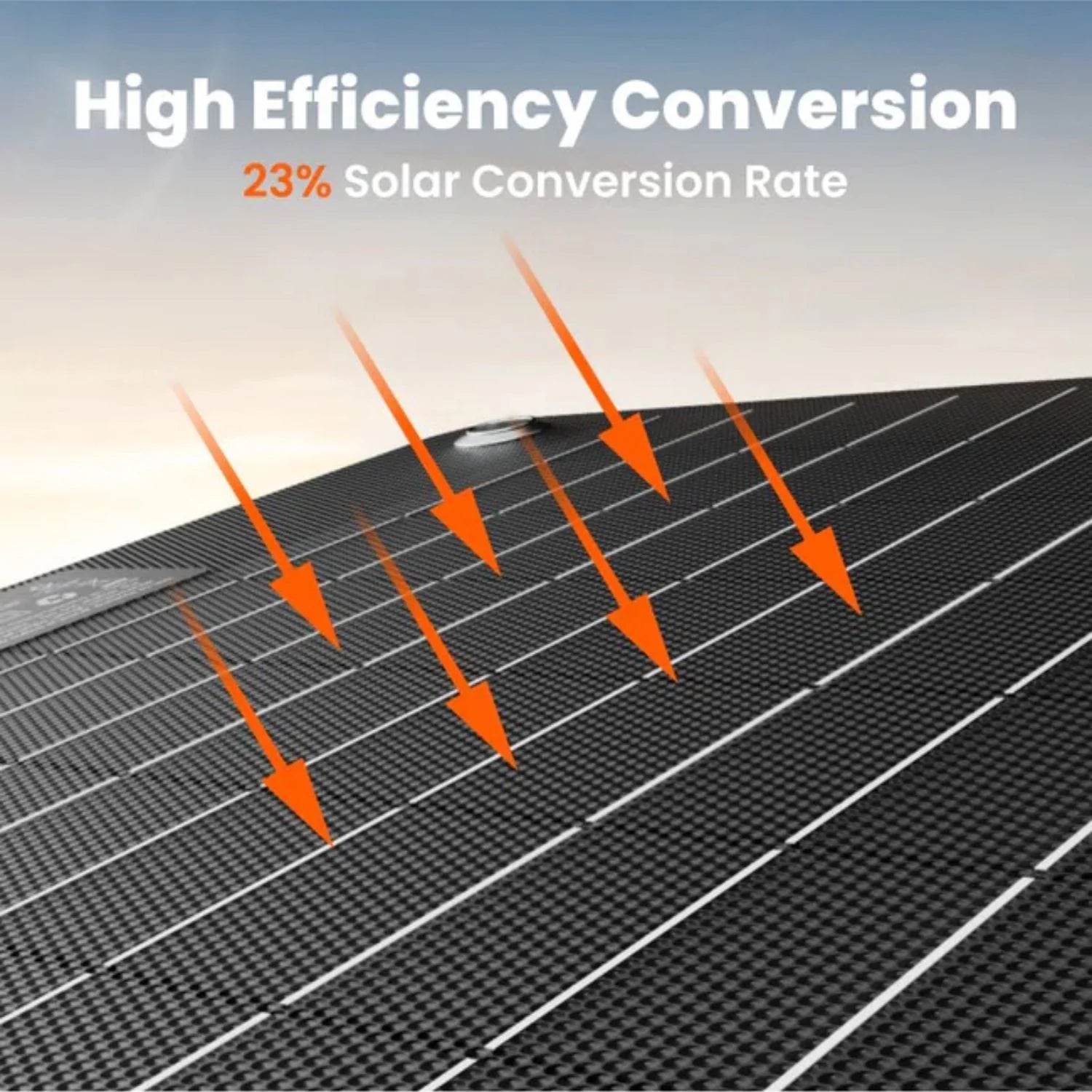

- High Efficiency: Featuring Monocrystalline PERC cells with a 23% conversion rate, it captures more energy even in limited sunlight.

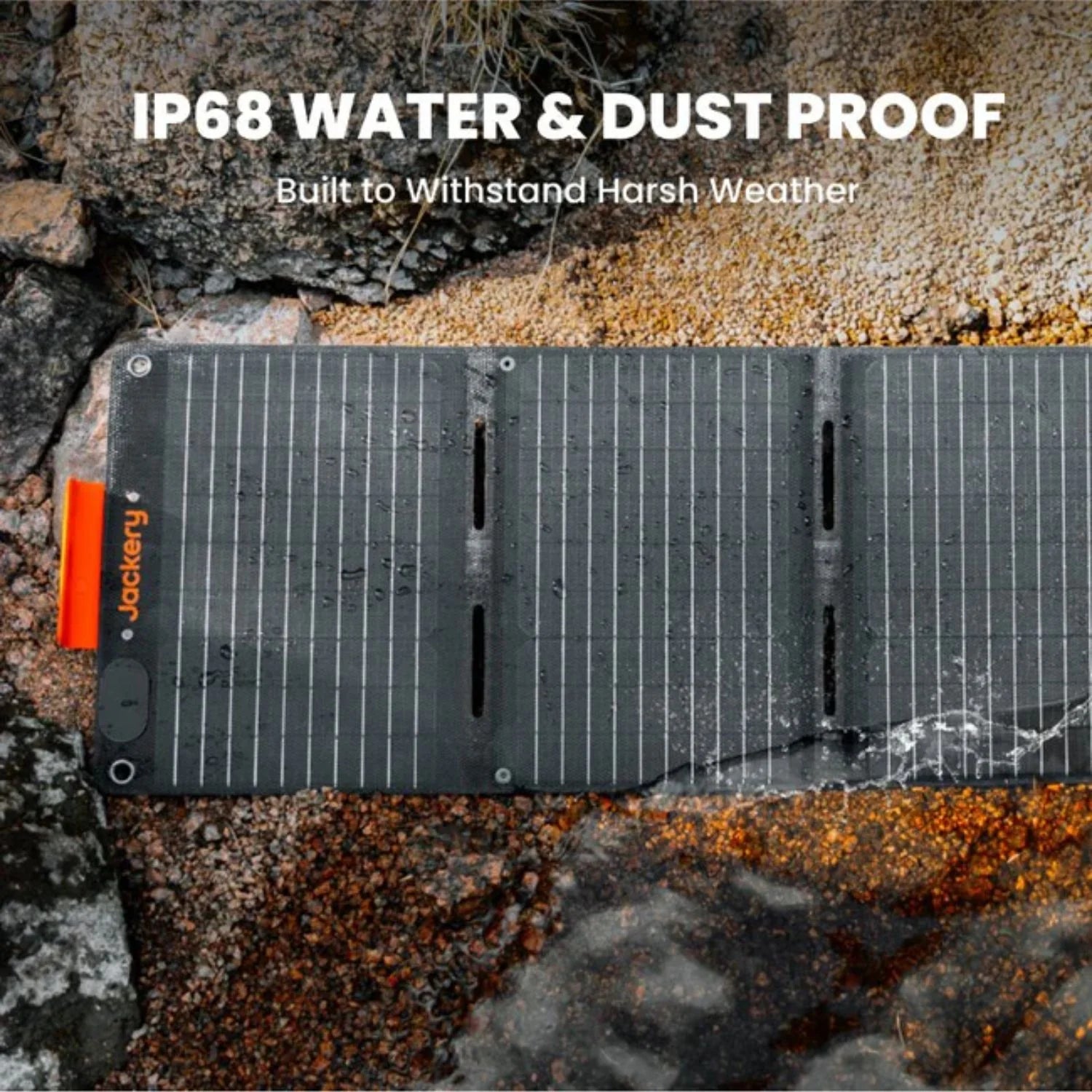

- Extreme Weather Rated: With an IP68 waterproof and dustproof rating, this panel is built to withstand rain, humid environments, and temperatures from -4°F to 149°F.
- Universal Mounting: The four-corner mounting system and included carabiners allow you to hang the panel on your backpack or strap it to your tent to charge while you move.
- Jackery Ecosystem Ready: Specifically designed for the Explorer 100 Plus, 240 v2, and 300 Plus.
Included in the box:
- SolarSaga 40 Air x 1
- Storage Bag
- Multifunctional Solar Charging Cable (5.9 ft/1.8m)
- DC8020 to DC7909 Adapter
Specifications & Manual
Engineered for durability with TÜV SÜD certification and verified through 8 rigorous IEC tests.
|
Category |
Specification |
|
Peak Power |
40W ±5% |
|
Conversion Efficiency |
23% |
|
Direct Output Ports |
1x USB-C (5V/3A), 1x USB-A (5V/2.4A) |
|
DC Output Port |
DC8020 (Compatible with 100 Plus/240 v2/300 Plus) |
|
Weight |
2.6 lbs (1.2 kg) |
|
Waterproof Rating |
IP68 |
|

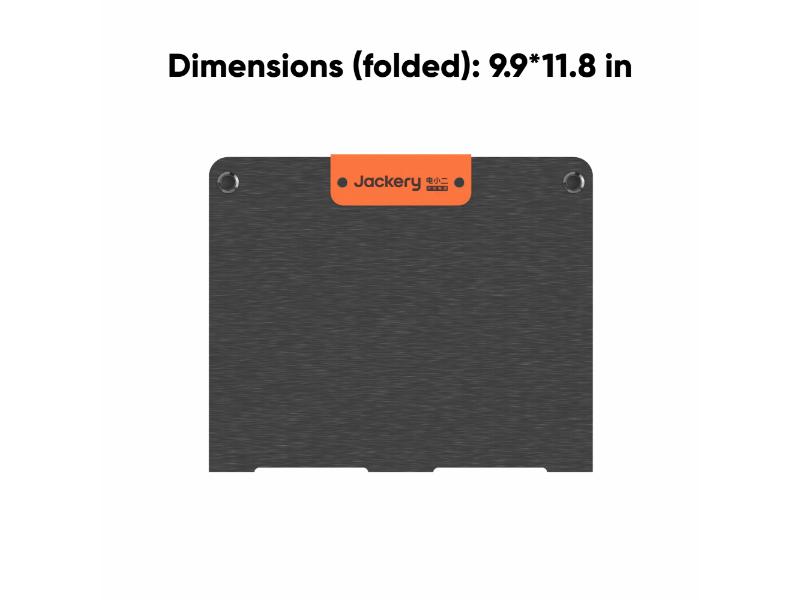

Folded Dimensions |
9.9 x 11.8 x 1.2 inches |
|
Unfolded Dimensions |
40.1 x 11.8 x 0.7 inches |
|
Warranty |
3 Years (1+2 Extension) |
FAQs
Usage & Support
-
Can I charge my phone directly from the panel?
- Yes! The standalone SolarSaga 40W Mini includes a multifunctional USB hub, allowing you to plug your charging cable directly into the panel's USB-C or USB-A ports.
-
Is this panel waterproof?
- It is IP68 rated, meaning it can withstand splashing and wet weather. However, the adapter output ports (DC8020/USB) are not waterproof; please keep the connection points dry.
-
Which Jackery models is this compatible with?
- It connects directly to the Explorer 100 Plus, 240 v2, and 300 Plus. To use it with older models (Explorer 290, 300, 500, 1000, etc.), a DC8020 to DC7909 adapter is required.
-
How do I clean the panel?
- Use a soft, damp cloth to remove dust or dirt. Remove any bird droppings or adhesive as soon as possible to maintain maximum conversion efficiency.
