The Jackery Solar Panel Connector (1-to-3) is the essential hub for high-capacity solar setups. Designed to bridge the gap between your panels and your power station, this connector allows you to link up to three solar panels simultaneously, maximizing your energy intake and significantly reducing your recharge times.
1 Male to 3 Female Design | Fire-Resistant PC Material | Weatherproof Switchable Cover
Maximize Your Solar Potential Take your solar charging to the next level with the Jackery Solar Panel Connector. This 3-port hub is specifically engineered to support the high-input demands of the Pro and Plus series units. By allowing two or three solar panels to be connected in a single stream, it provides a stable and efficient way to harness more sun without a messy tangle of wires.
Why Every Multi-Panel Setup Needs One:
- Versatile Connectivity: Compatible with the Solar Generator 3,000 Pro, 2,000 Pro, 1,500 Pro, 1,000 Pro, as well as the 2,000 Plus, 1,000 Plus, and 700 Plus models.
- Flexible 2-or-3 Configuration: The female connector features an integrated change-over cover. This allows you to toggle between using two or three solar panels easily, protecting unused ports from dust and moisture.
- Built for the Elements: Constructed with high-grade PC (Polycarbonate) material, this connector is fire-resistant and built to withstand harsh outdoor weather, from extreme heat to freezing campsites.
- Safe Series Connection: Engineered to maintain stable voltage and current across multiple panels, ensuring your portable power station is charged safely and efficiently.
- Compact & Rugged: A small footprint makes it easy to pack in your accessory bag, while the reinforced housing ensures it lasts through years of off-grid use.
Specifications
|
Category |
Specification |
|
Connector Type |
1 Male to 3 Female |
|
Compatibility |
Jackery Pro & Plus Series (1000/1500/2000/3000) |
|
Material |
Fire-Retardant PC (Polycarbonate) |
|
Special Feature |
Integrated Change-over Port Cover |
|
Configuration |
Supports 2-panel or 3-panel setups |
|
Environment |
Outdoor Rated / Weather Resistant |
|
Warranty |
Standard Jackery Warranty Coverage |
Installation
4 Steps to Get Connected:

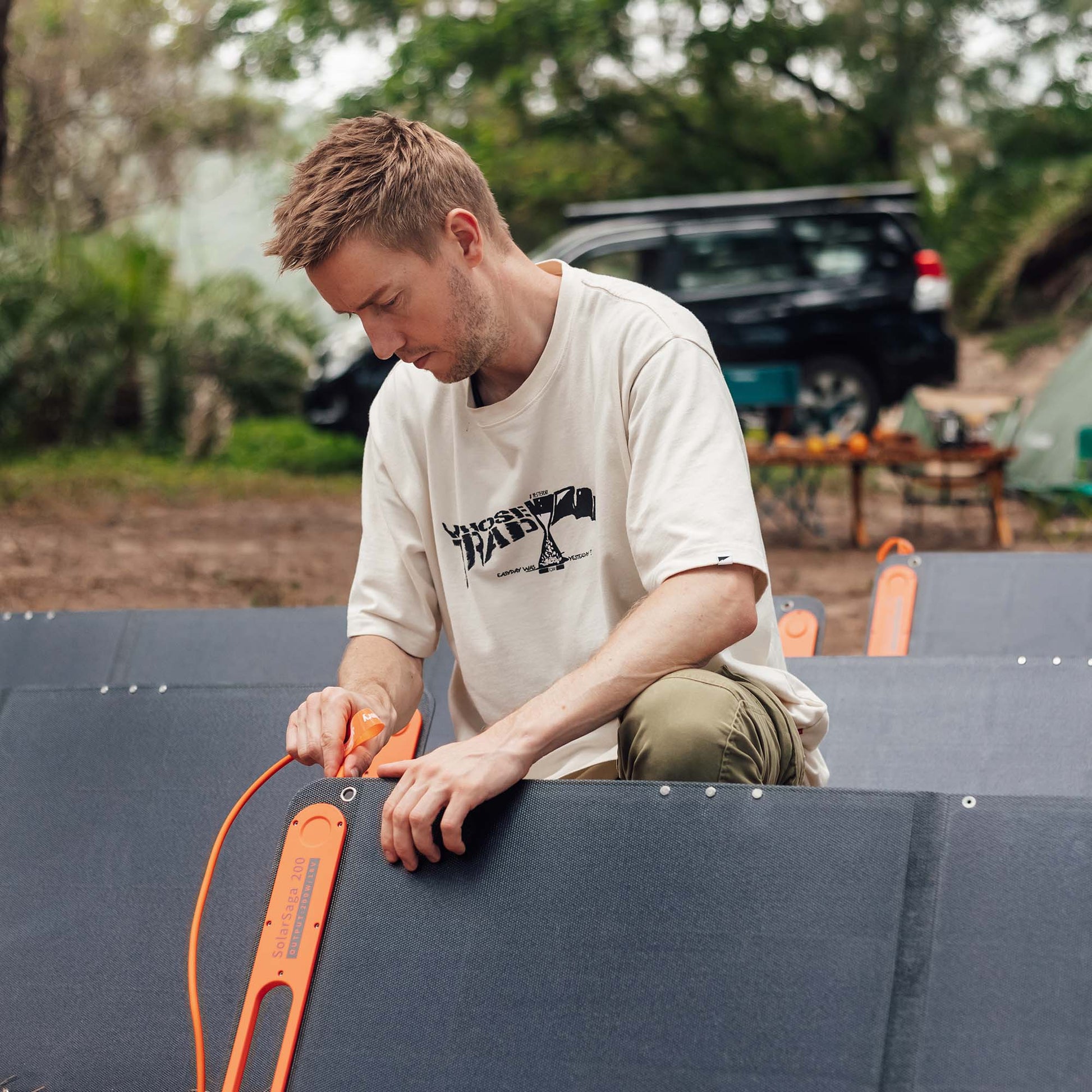

- Prepare Your Panels: Lay out your two or three Jackery solar panels in direct sunlight.
- Select Your Ports: If using only two panels, ensure the third port is sealed with the change-over cover.

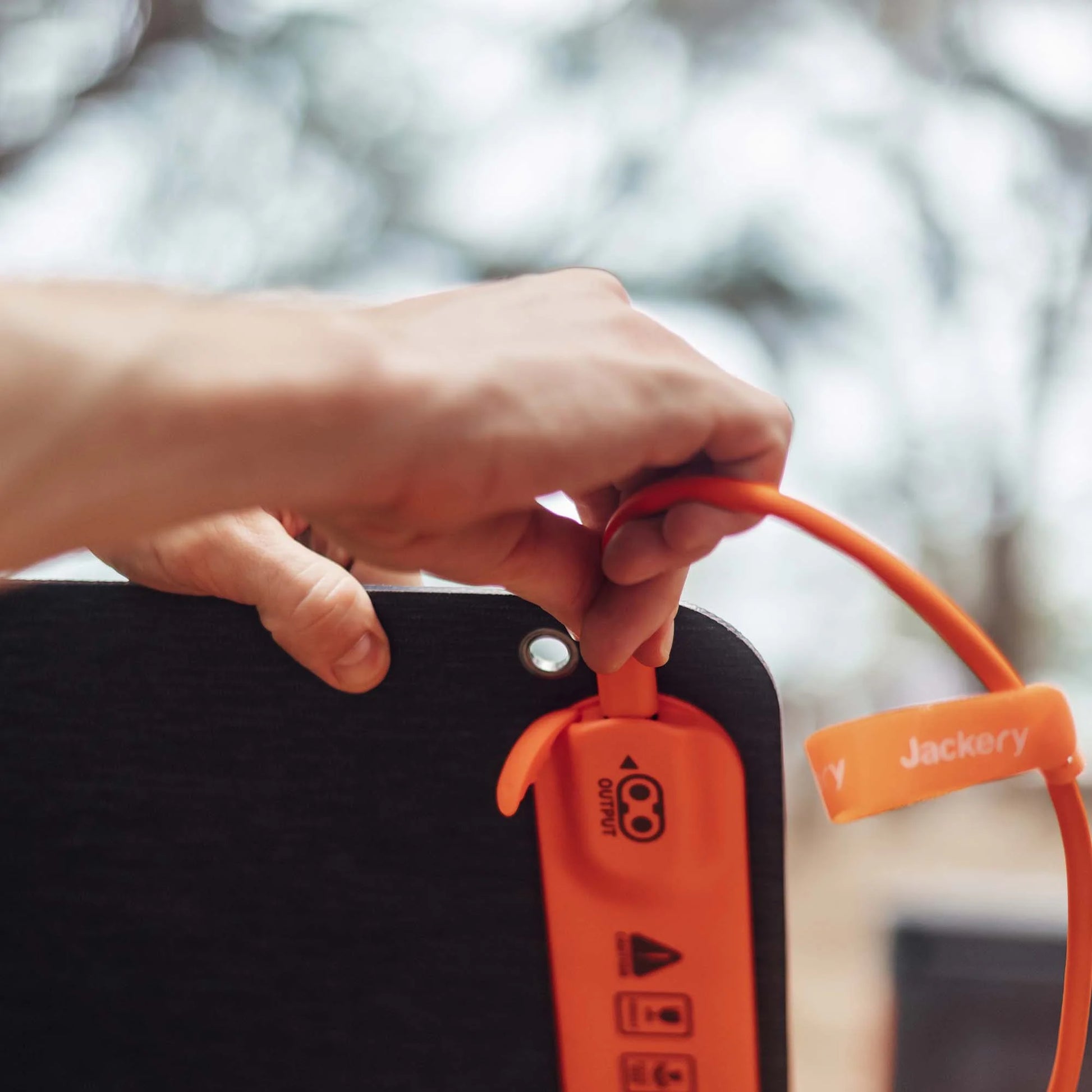

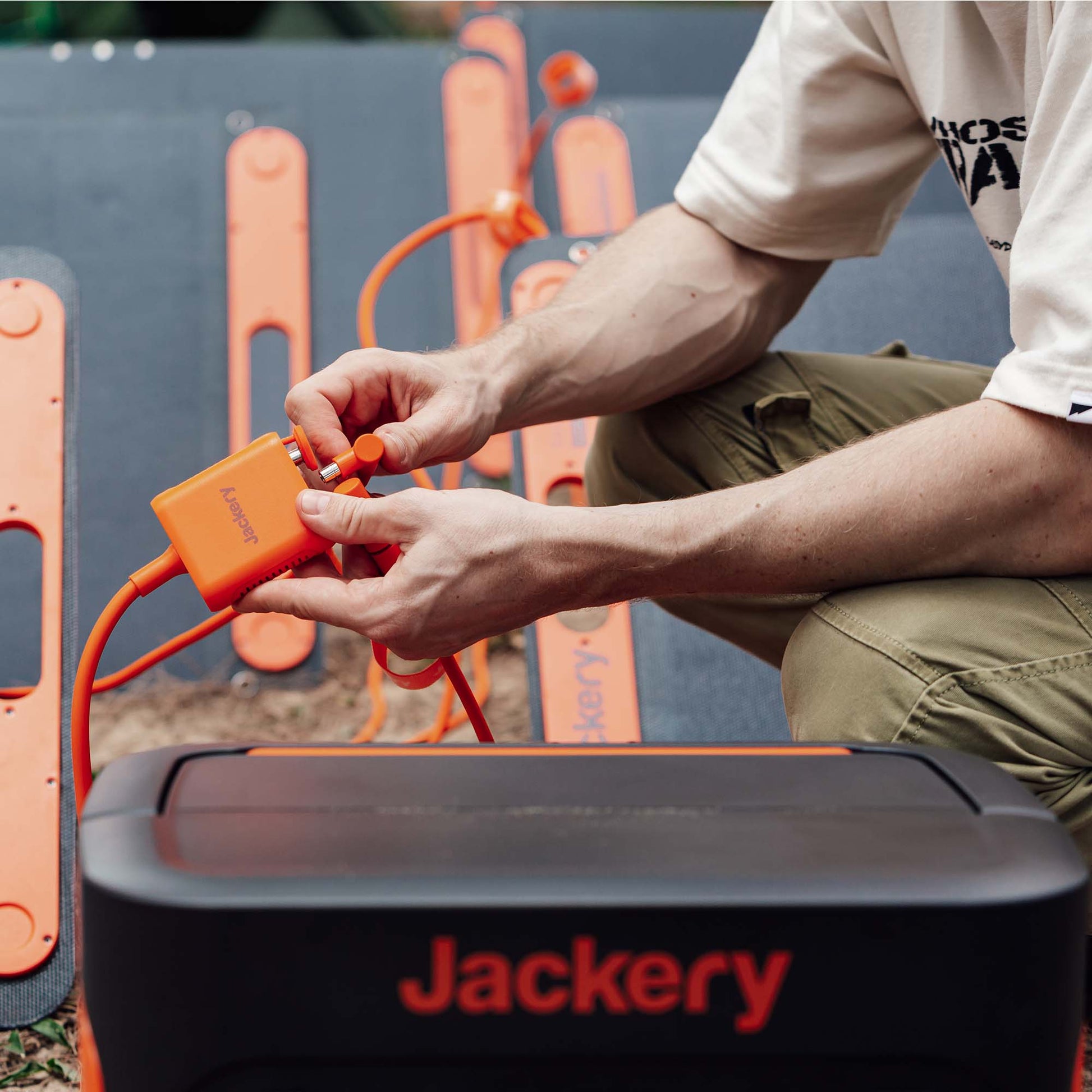

- Plug & Click: Insert the solar cables from each panel into the female ports of the connector.

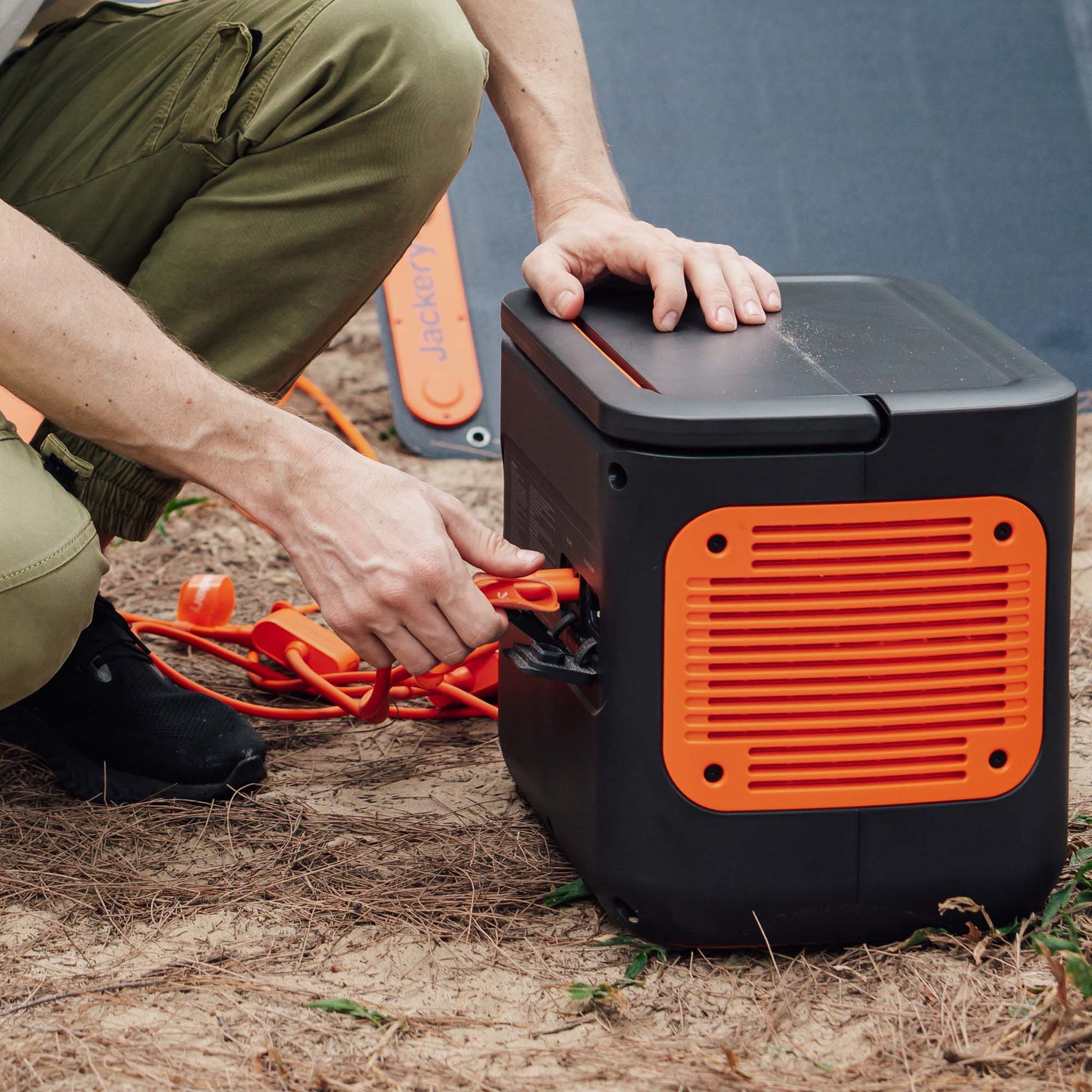

- Link the Station: Plug the single male end into the DC input port of your Jackery Portable Power Station.
FAQs
- Can I use this with the older Explorer 1000 or 500? This connector is specifically designed for the Pro and Plus series which use the DC8020 input. Please check your power station's input port; it may require an adapter for older 8mm (DC7909) models.
- Can I mix different wattage panels? For the most stable and efficient charging, it is highly recommended to use identical solar panels (e.g., three SolarSaga 200W panels) when using this connector.

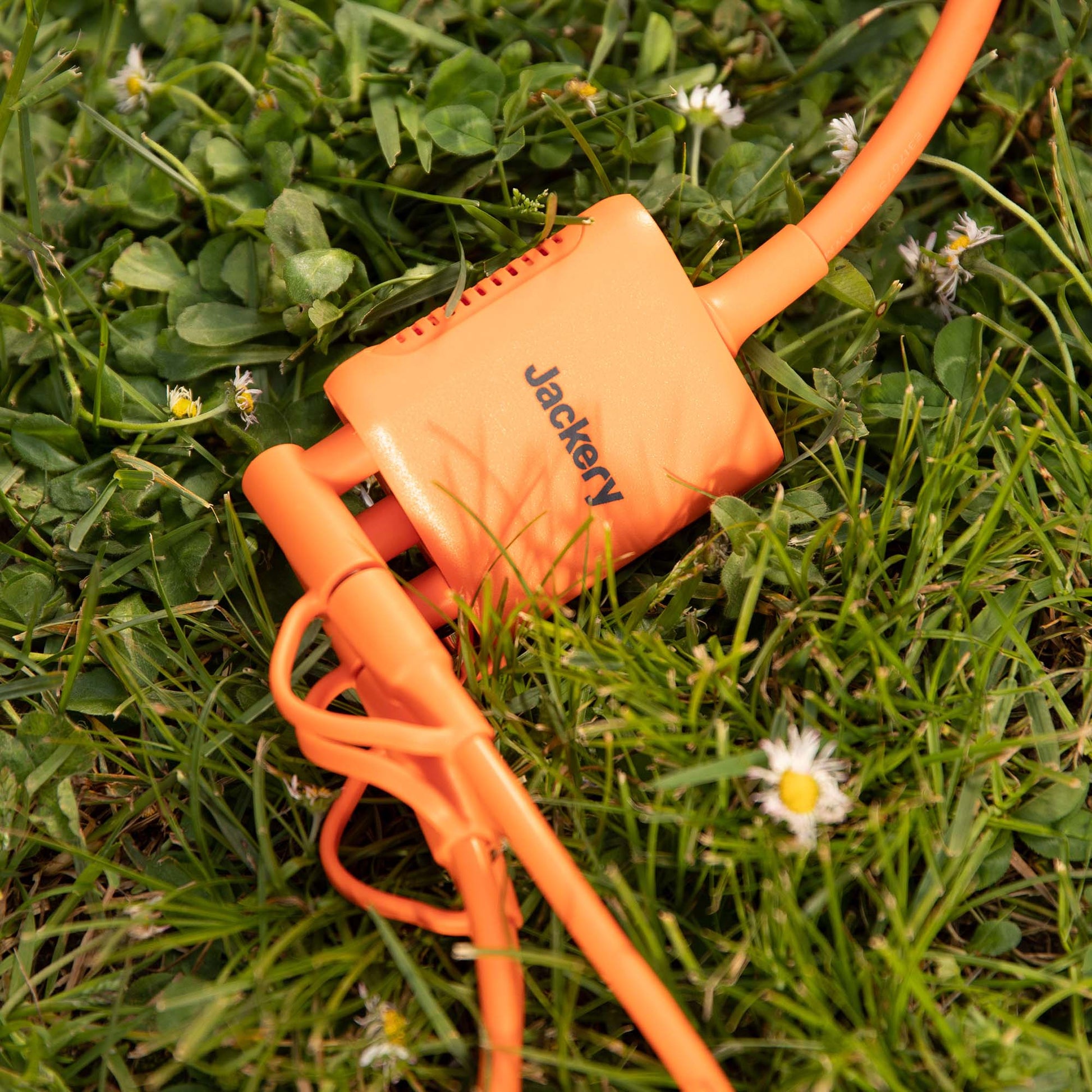

- Is the connector waterproof? It is weather-resistant and designed for outdoor use. However, like all electrical connections, we recommend keeping the hub off the ground and away from puddles or heavy rain.
- Do I need this if I only have one solar panel? No. This is specifically for users who want to combine multiple panels to increase their total solar wattage input.
