Jackery Manual Transfer Switch for Explorer 5000 Plus

Pre-Wired 240V 50A 10-Circuit Manual Transfer Switch for Explorer 5000 Plus

The Jackery Manual Transfer Switch (240V 50A) is a heavy-duty, pre-wired home backup solution engineered to safely connect your Jackery power station directly to your home's main electrical panel during utility outages. Designed specifically for direct connection with the Jackery Explorer 5000 Plus (and expandable to 2000 Plus / 3600 Plus systems via a parallel combiner setup), this 10-circuit transfer switch prevents dangerous power back-feeding and allows you to safely power essential 120V and 240V home circuits including well pumps, refrigerators, HVAC units, and lights.

• Direct Explorer 5000 Plus Compatibility: Plug-and-play home backup integration designed out of the box for the Jackery Explorer 5000 Plus power station.
• Pre-Wired for Quick & Easy Installation: Comes pre-wired with color-coded lead wires to significantly reduce installation complexity and electrician setup time.
• 240V / 50A Maximum Power Output: Supports up to 50A maximum continuous current at 125V/250V to handle high-draw 240V major home appliances.

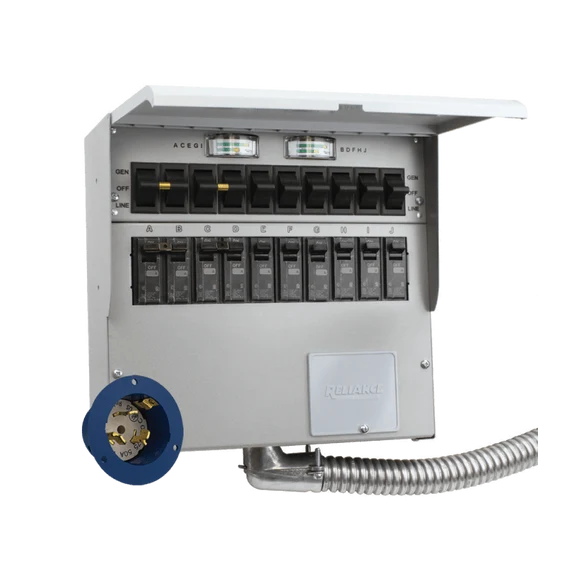

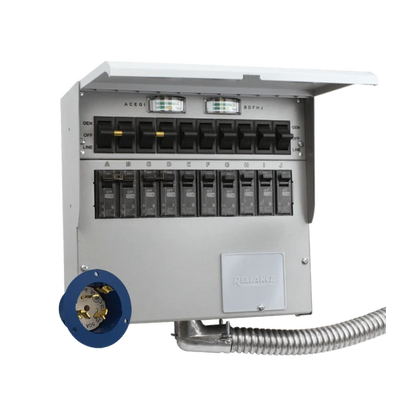

• 10 Total Breaker Circuits: Features 10 pre-configured circuits—(1) 2-Pole 30A, (1) 2-Pole 20A, and (6) 1-Pole 15A—allowing precise home load management.
• Prevents Utility Back-Feeding: Completely isolates backup battery power from the main grid to safeguard line workers and ensure code-compliant home operation.

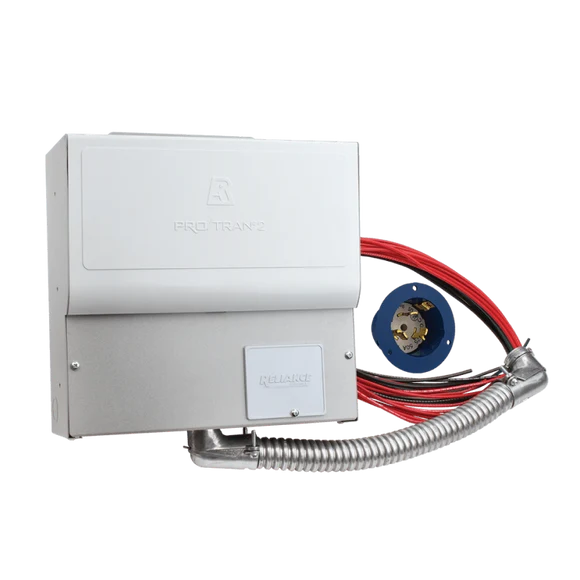

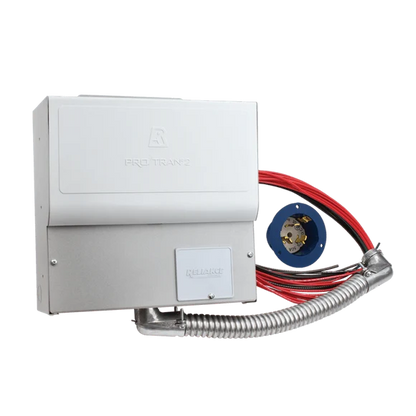

• Durable Indoor Metal Enclosure: Housed in a hardy gray steel cabinet with a protective hinged cover to shield switches and components from dust and damage.
• Integrated Wattmeters & NEMA SS2-50 Inlet: Includes dual color-coded analog wattmeters for real-time load monitoring and a CS6375 (NEMA SS2-50) power inlet for secure twist-lock cord connection.
• 5-Year Manufacturer Warranty: Backed by a 5-year warranty for long-term peace of mind and emergency power reliability.

Versatile Applications

• Whole-Home Emergency Backup: Connects your Explorer 5000 Plus power station directly to essential household branch circuits during severe storms and prolonged grid blackouts.
• 240V Heavy Appliance Management: Safely powers dual-pole 240V loads (well pumps, sumps, electric water heaters) alongside 120V household branch circuits.

Specifications & What's Included

What's Included:

• Box 1: 1x Reliance Manual Transfer Switch (10-Circuit) with CS6375 Power Inlet
• Box 2: 1x Heavy-Duty Power Cord

Jackery Manual Transfer Switch (240V 50A) Specifications

Frequently Asked Questions

• Which Jackery power station models are compatible with this 240V 50A switch?

  This manual transfer switch is directly compatible with the Jackery Explorer 5000 Plus. It can also be used with the Explorer 2000 Plus or two Explorer 3600 Plus units when using a Jackery parallel combiner setup.

• Do I need a professional electrician to install this manual transfer switch?

  Yes. While the switch features a pre-wired design for quick installation, connecting it to your main electrical panel should be completed by a licensed electrician to ensure local code compliance and safety.

• What power cord connection does this transfer switch use?

  It features an integrated CS6375 (NEMA SS2-50) power inlet box and includes the corresponding heavy-duty power cord in the box.

• Can this switch run 240V appliances?

  Yes. The switch includes 2-pole breakers designed specifically to power 240V household loads such as well pumps or water heaters alongside standard 120V circuits.
