Massive 7,200W Output | Dual 120V/240V | 0ms UPS Protection
The Ultimate Power Security for Your Home: The Jackery Explorer 5000 Plus is a beast of a power station designed to bridge the gap between portable power and permanent home backup. With a massive 5,040Wh capacity, 7,200W of continuous power (14,400W surge), and 120V/240V dual-voltage support out of the box, you aren't just charging phones—you’re running your well pump, electric dryer, central AC, and subpanels during a blackout.
Why it’s a Game Changer:
- True Home Backup: Delivers 120V/240V split-phase power natively. No complicated adapters needed for heavy-duty appliances like ovens, water heaters, or EVs.
- Instant Protection: Features a 0ms Online UPS mode for sensitive electronics (PCs and servers) and a 20ms mode for appliances, ensuring your fridge and lights stay on without a blink.
- Rapid Charging: Go from 0 to 80% in just 1.7 hours via AC or high-voltage solar panels. Utilizing ChargeShield 2.0, it automatically stops charging once full to protect cell lifespan.
- Expandable Ecosystem: Start with 5kWh and grow up to 60kWh with additional battery packs—enough to power a home for up to two weeks off-grid.
- Indoor Safe & Whisper Quiet: At only 30 dB, it operates quieter than a refrigerator with zero emissions, making it 100% safe for indoor use.
- Cost-Saving Smart App: Use the Jackery App to schedule charging during off-peak hours, lowering your utility bill while ensuring you are always prepared for storm blackouts.
- Luggage-Portable Ergonomics: Features integrated heavy-duty wheels and a telescopic pull handle for smooth transport around the garage, patio, or home.
Variant Options & What's Included in the Box
Choose the system configuration that best meets your home power demands:
| Variant Option | What's Included in the Box |
|---|---|
|

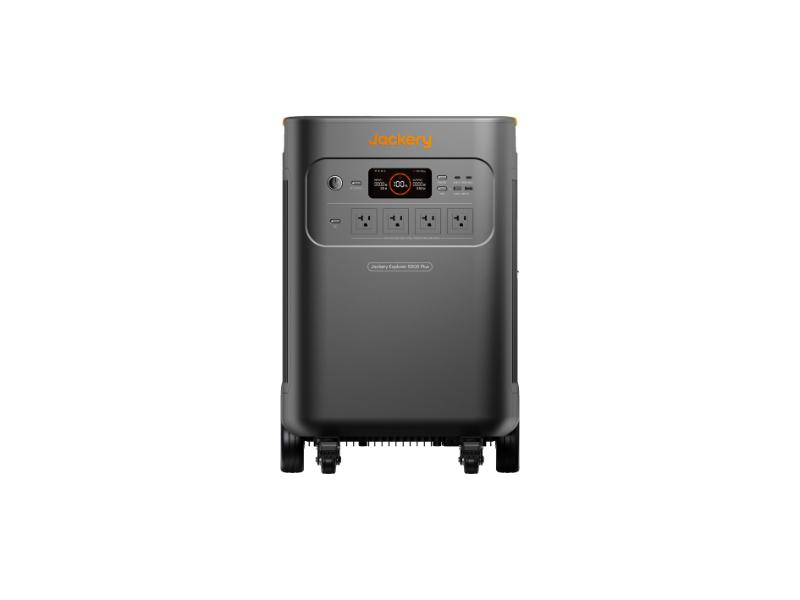

E5000Plus (Core Power Station) |
|
|

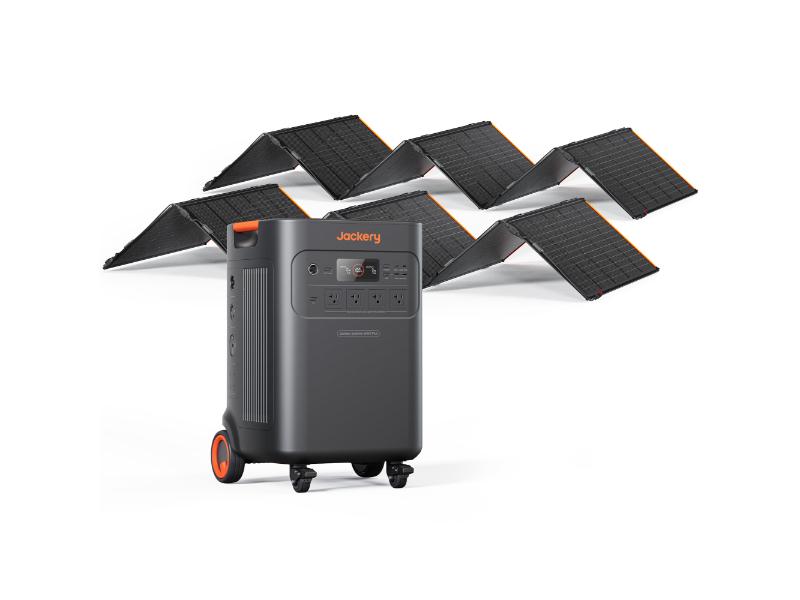

E5000Plus + 500Wx X2 (1000W Bifacial Solar Kit) |
|
|
E5000Plus + Battery Pack 5000 Plus (10.08kWh Expanded Capacity Kit) |
|
|

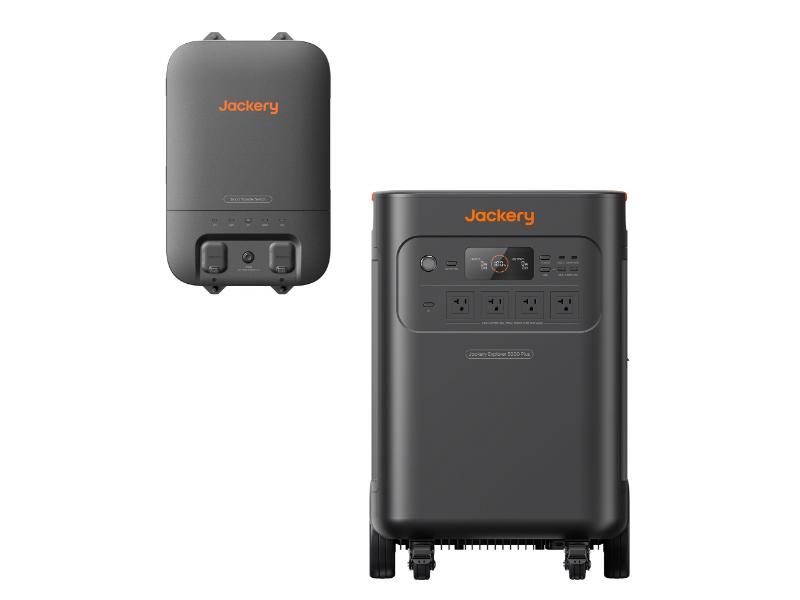

E5000Plus + Smart Transfer Switch (STS) (Smart Home Panel Integration Kit) |
|
|
E5000Plus + Battery Pack 5000 Plus + STS (10.08kWh Smart Home Backup Kit) |
|
|

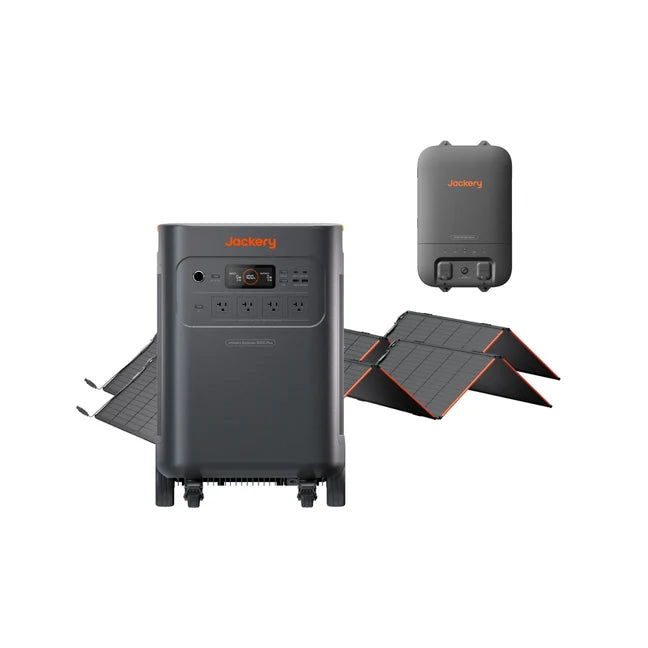

E5000Plus + STS + 500Wx X2 (1000W Solar + Smart Home Backup Kit) |
|
|

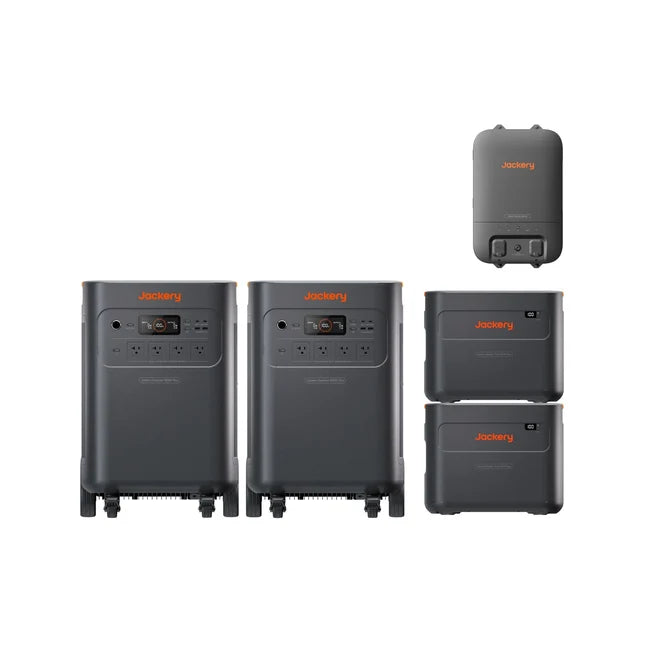

E5000Plus x2 + Battery Pack 5000 Plus x2 + STS (20.16kWh Ultimate Whole-Home System) |
|
Specifications & Owner's Manuals
Jackery Explorer 5000 Plus Technical Specifications
Features an optimized CTB (Cell-to-Body) structure for maximum thermal dissipation, safety, and durability.
|
Feature |
Specification |
|
Base Battery Capacity |
5,040Wh (Expandable up to 30kWh single / 60kWh parallel) |
|
AC Continuous Output |
7,200W Continuous Output (14,400W Peak Surge) |
|
Voltage Output |
Native Dual 120V / 240V Split-Phase Support |
|
Battery Chemistry |
EV-Grade LiFePO₄ (4,000+ Cycles to 70%+ capacity | 8–10 year lifespan) |
|
Recharging Times |
1.7 Hours to 80% (Hybrid/Smart Switch) / 3.5 Hours (AC Wall Outlet) |
|
AC Outlets |
(4x) 120V (20A), (1x) NEMA L14-30R, (1x) NEMA 14-50R |
|
USB Ports |
(2x) USB-C (100W PD), (2x) USB-A (18W QC3.0) |
|
UPS Switchover Speed |
0ms (Online Mode) / <20ms (Backup Mode) |
|
Solar Input |
4,000W Max (High-Voltage PV Input) |
|
Noise Level |
Whisper Quiet (~30 dB) |
|
Operating Temp Range |
Discharge: 5°F to 113°F (-15°C to 45°C) |
|
Weight & Dimensions |
134.5 lbs (61 kg) | 16.5 x 15.5 x 25.0 in |
|
Warranty |
5 Years Standard (Up to 7 Years total via registration) |
Jackery Battery Pack 5000 Plus Expansion Module Specifications
The Jackery Battery Pack 5000 Plus is the high-capacity storage solution designed specifically for the Explorer 5000 Plus. Utilizing innovative Cell-to-Body (CTB) technology, this pack delivers a massive 5,040Wh of energy in a compact, rugged frame.
⚠️ NOTICE: This is an expansion battery module. It is compatible only with the Jackery Explorer 5000 Plus. It does not feature AC outlets and cannot be used as a standalone power source.
|
Feature |
Specification |
|
Capacity |
5,040Wh (45Ah / 112V DC High-Voltage Architecture) |
|
Battery Chemistry |
LiFePO4 (LFP) | 4,000+ Cycles to 70%+ Capacity |
|
CTB Technology |
Space-Saving Lightweight Integrated Cell-to-Body Structure |
|
DC Expansion Ports |
Input: 80.5V - 126V ⎓ 41A Max | Output: 80.5V - 126V ⎓ 98A Max |
|
Safety Certifications |
UL 1973 Standard Certified with 12-layer BMS Protection |
|
Weight & Dimensions |
81.57 lbs (37 kg) | 16.5 x 13.5 x 13.2 in |
|
Operating Temp |
-15°C to 45°C (5°F to 113°F) | Cold-Weather Extreme Rated |
|
Warranty |
5 Years Total Warranty |
General Frequently Asked Questions
-
What is the difference between 0ms and 20ms UPS modes?
The 0ms Online UPS mode is engineered for high-sensitivity gear like desktop PCs and servers where even a microsecond drop causes a restart. The 20ms Backup mode is optimized for larger appliances like refrigerators and fans.
-
How long will the Explorer 5000 Plus run my refrigerator?
The 5,040Wh capacity can power a standard, energy-efficient home refrigerator for up to 7 days under typical usage. When paired with solar panels, this runtime can be extended indefinitely.
-
Can I use the Battery Pack 5000 Plus with the Explorer 2000 or 3000 Plus?
No. Due to its high-voltage architecture (112V DC), the Battery Pack 5000 Plus is exclusive to the Explorer 5000 Plus system.
-
Can I leave the system plugged in all the time?
Yes. Keeping the unit plugged in allows it to function as an active UPS (Uninterruptible Power Supply), ensuring your home is protected the instant a blackout occurs.
-
Is it safe to run indoors?
Absolutely. Unlike gas generators, the Explorer 5000 Plus produces zero emissions and operates at a whisper-quiet 30 dB. It is 100% safe for indoor use in living rooms, bedrooms, or home offices.
-
What can I control with the Jackery App?
The app allows you to monitor real-time input/output, schedule charging during off-peak hours to save on electricity costs, and toggle the UPS modes remotely from your phone.
-
Can Jackery power stations be used with medical devices or life-support equipment?
No. Jackery portable power stations are not recommended for use with medical devices, life-support equipment, data servers, or critical public infrastructure where a power interruption could result in personal injury, loss of life, or significant property damage.
