Massive 7,200W Output | Dual 120V/240V | 0ms UPS Protection

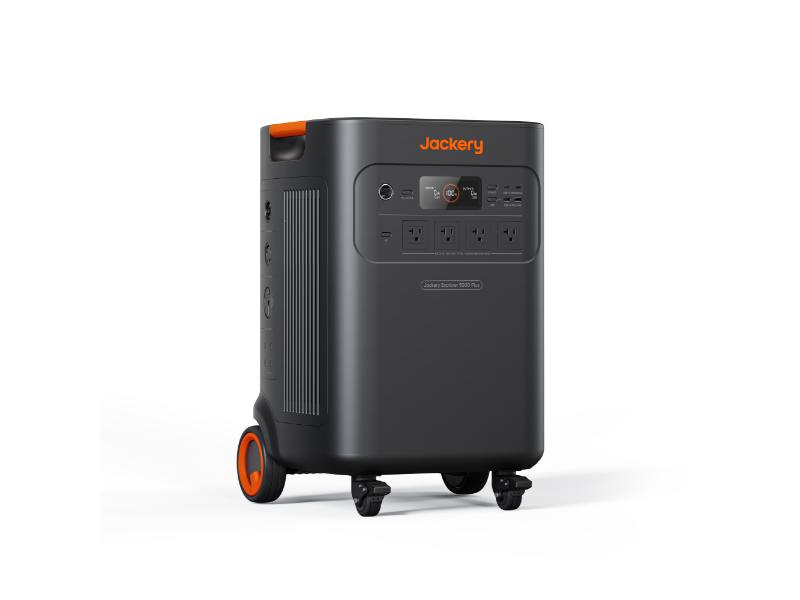

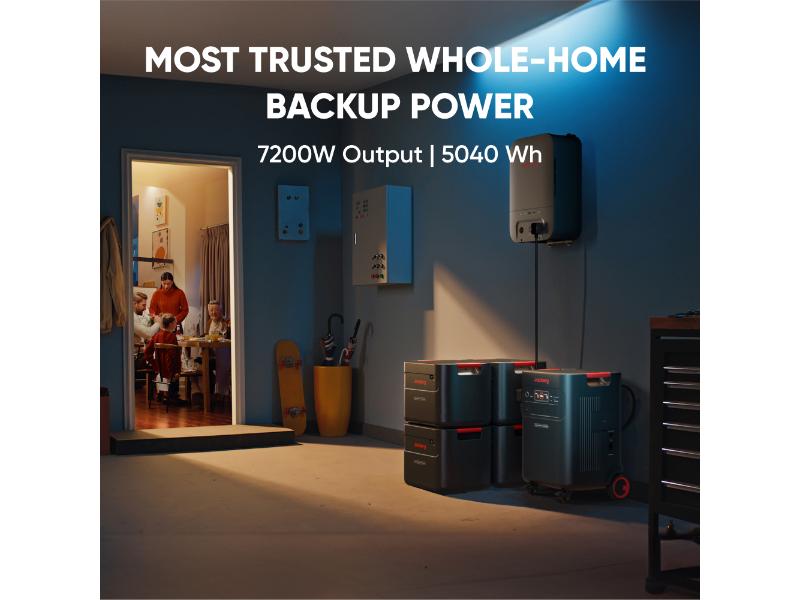

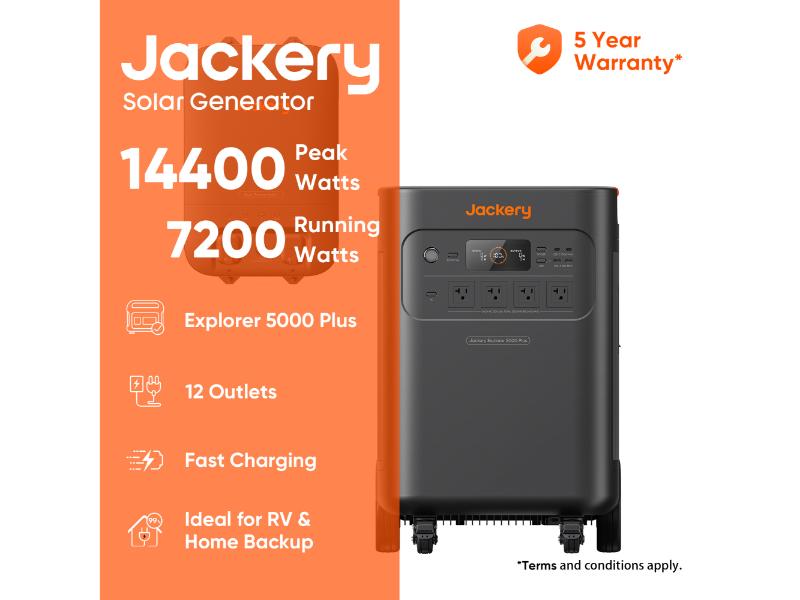

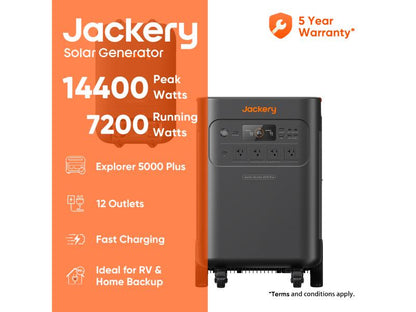

The Ultimate Power Security for Your Home The Jackery Explorer 5000 Plus is a beast of a power station designed to bridge the gap between portable power and permanent home backup. With a massive 5040Wh capacity and 7200W of continuous power, and 120V/240V dual-voltage support, you aren't just charging phones—you’re running your well pump, electric dryer, and central AC during a blackout.
Why it’s a Game Changer:

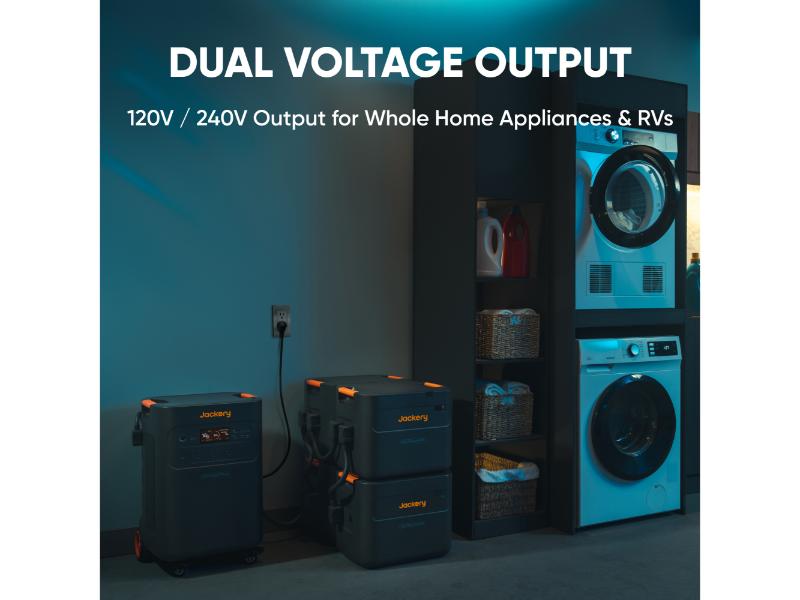

- True Home Backup: Delivers 120V/240V power out of the box. No complicated adapters needed for heavy-duty appliances like ovens or EVs.
- Instant Protection: Features a 0ms Online UPS mode for sensitive electronics (PCs and servers) and a 20ms mode for appliances, ensuring your fridge and lights stay on without a blink.
- Rapid Charging: Go from 0 to 80% in just 1.7 hours via AC or high-voltage solar panels. Utilizing ChargeShield 2.0, automatically stopping the charge once the battery is full to protect its lifespan.
- Expandable Ecosystem: Start with 5kWh and grow up to 60kWh with additional battery packs—enough to power a home for up to two weeks.
- Indoor Safe & Whisper Quiet: At only 30 dB, it operates quieter than a refrigerator with zero emissions, making it 100% safe for indoor use.

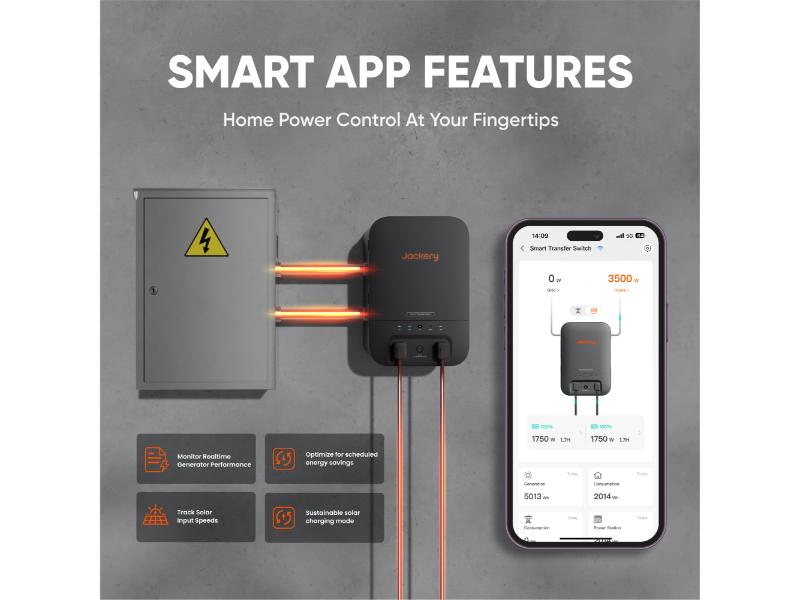

- Cost-Saving Smart App: Use the Jackery App to schedule charging during off-peak hours, lowering your electricity bill while ensuring you're always prepared for a storm.
Included in box:
- Explorer 5000 Plus
- AC Charging Cable
- MC4 Wrench
- Owner's Manual
Specification & Manual
The 5000 Plus uses an optimized CTB (Cell-to-Body) structure for better heat dissipation and durability.
|
Feature |
Specification |
|
Capacity |
5040Wh (Expandable up to 60kWh) |
|
AC Output |
7200W Continuous (14,400W Surge) |
|
Voltage |
Dual 120V / 240V Support |
|
Battery Type |
LiFePO4 (4,000+ Cycles to 70%+) |
|
Charging Time |
1.7 Hours (Hybrid/Smart Switch) / 3.5 Hours (Wall AC) |
|
AC Outlets |

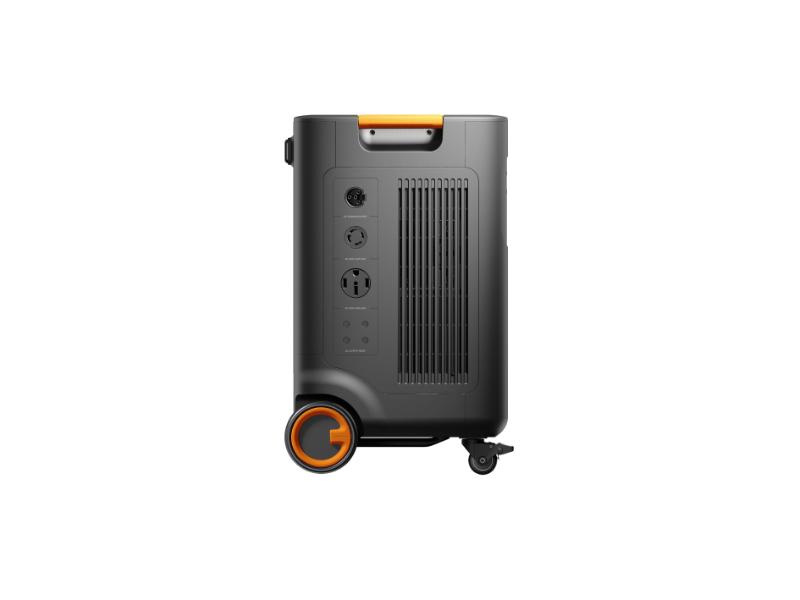

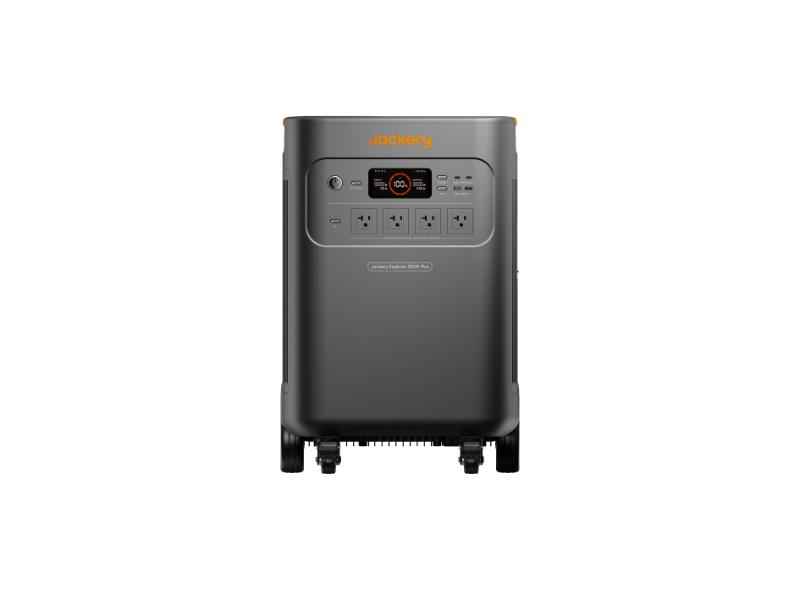

4x 120V (20A), 1x NEMA L14-30R, 1x NEMA 14-50 |
|
USB Ports |
2x USB-C (100W PD), 2x USB-A (18W QC3.0) |
|
UPS Switchover |
0ms (Online Mode) / <20ms (Backup Mode) |
|
Solar Input |
4,000W Max (High-Voltage PV) |
|
Noise Level |
Whisper Quiet (~30 dB) |
|
Operating Temp |
Discharge: 5°F–113°F (-15°C–45°C) |
|
Weight |
134.5 lbs (61 kg) |
|
Dimensions |
16.5 x 15.5 x 25 inches |
|
Warranty |
5 Years Standard (Up to 7 Years total) |
FAQs
Reliable Backup for 8–10 Years
- What is the difference between 0ms and 20ms UPS? The 0ms Online UPS is for high-sensitivity gear like desktop computers and Wi-Fi routers; the power never "drops" even for a microsecond. The 20ms Backup mode is optimized for larger appliances like refrigerators and fans.
- Can I charge this while using it? Yes, the 5000 Plus supports pass-through charging. You can keep it plugged into your solar panels during the day while it powers your home.
- How does the expansion work? Through the dedicated AC/DC Expansion ports, you can daisy-chain additional battery packs to increase your storage from 5kWh all the way to 60kWh for long-term outages (up to 2 weeks).
- Is it easy to move? Despite its industrial power, it features integrated wheels and a pull handle, making it "luggage-portable" for moving around the garage or patio.
- How long does the Jackery 5000 Plus last? The unit is powered by next-gen LiFePO4 (LFP) cells rated for 4,000+ cycles to 70% capacity. Under normal use, this provides 8–10 years of dependable daily backup.
- How long will the 5000 Plus run a refrigerator? The 5040Wh capacity can power a standard, energy-efficient refrigerator for up to 7 days under typical usage. When paired with solar panels, this runtime can be extended indefinitely.
- What is the difference between 0ms and 20ms UPS? The 0ms Online UPS is designed for ultra-sensitive gear like desktop PCs and servers where even a micro-blink causes a crash. The 20ms mode is optimized for appliances like fridges and fans, ensuring they stay running without putting unnecessary strain on the battery.
- Can I overcharge my Jackery? No. All Jackery units feature a sophisticated Battery Management System (BMS) that regulates voltage and current, automatically stopping the charge once the battery is full to protect its lifespan.
- Can I leave it plugged in all the time? Yes. Keeping the unit plugged in allows it to function as an active UPS (Uninterruptible Power Supply), ensuring your home is protected the instant a blackout occurs.
- Is it safe to use indoors? Absolutely. Unlike gas generators, the Explorer 5000 Plus produces zero emissions and operates at a whisper-quiet 30 dB. It is perfectly safe for use in living rooms, bedrooms, or home offices.
- What can I control with the Jackery App? The app allows you to monitor real-time input/output, schedule charging during off-peak hours to save on electricity costs, and toggle the UPS modes remotely from your phone.
