Double Your Power | 240V Output Capability | 6000W-7200W Support

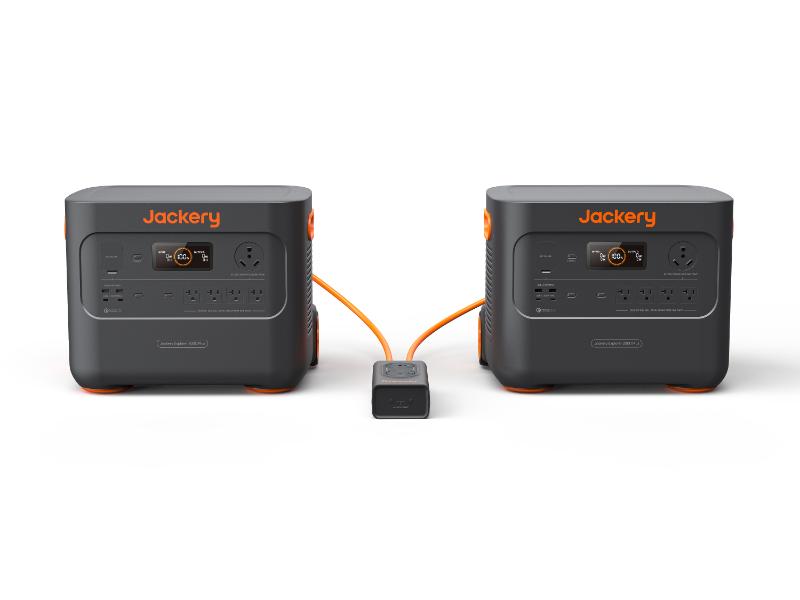

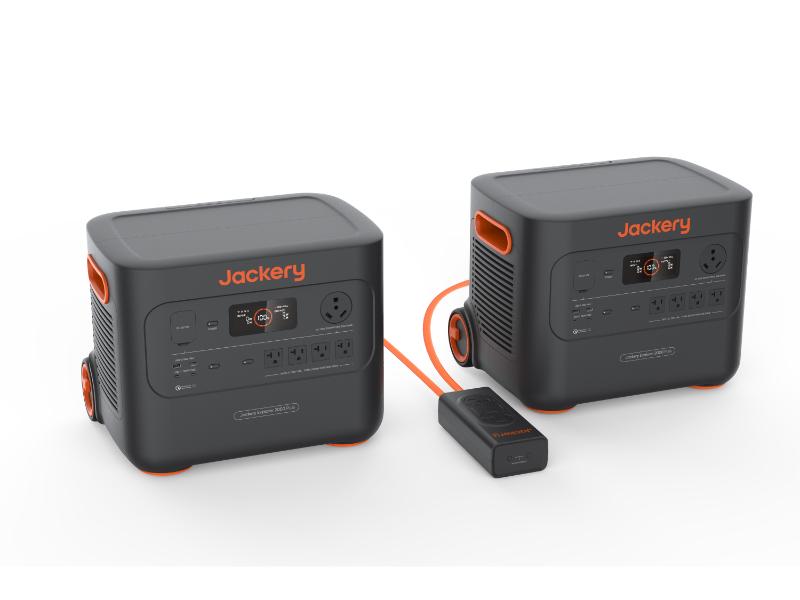

Unlock Professional Home Backup The Jackery Connector is the essential bridge for high-demand energy needs. By linking two identical Jackery power stations, you don't just double your capacity—you unlock the ability to run heavy-duty 240V appliances like well pumps, electric dryers, and central AC units.

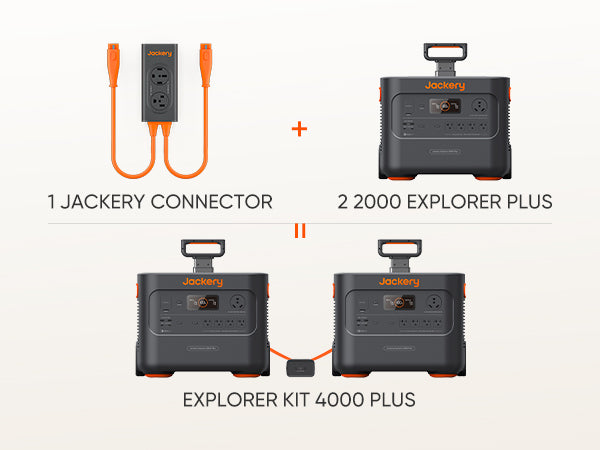

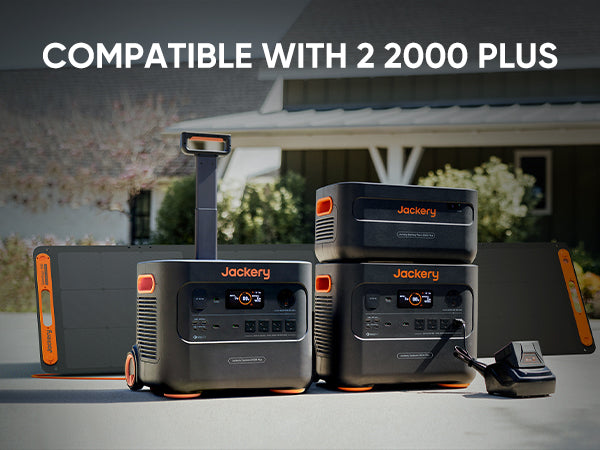

- Massive Output Boost: Link two Explorer 2000 Plus units for 6000W of power, or two HomePower 3600 Plus units for a staggering 7200W.
- Dual Voltage (120V/240V): The only way to achieve true 240V output for heavy-duty household loads.
- Extreme Weather Rated: Built to perform in harsh conditions with low-temperature tolerance down to -20°C (-4°F).
- Plug-and-Play Simplicity: Designed specifically for the Plus series ecosystem; no complex wiring or external inverters required.
Note: For the Explorer 2000 Plus, dual units deliver 4000W-6000W output for 220V/240V appliances. For standard 120V loads, power is supplied by the primary unit and its connected battery packs.

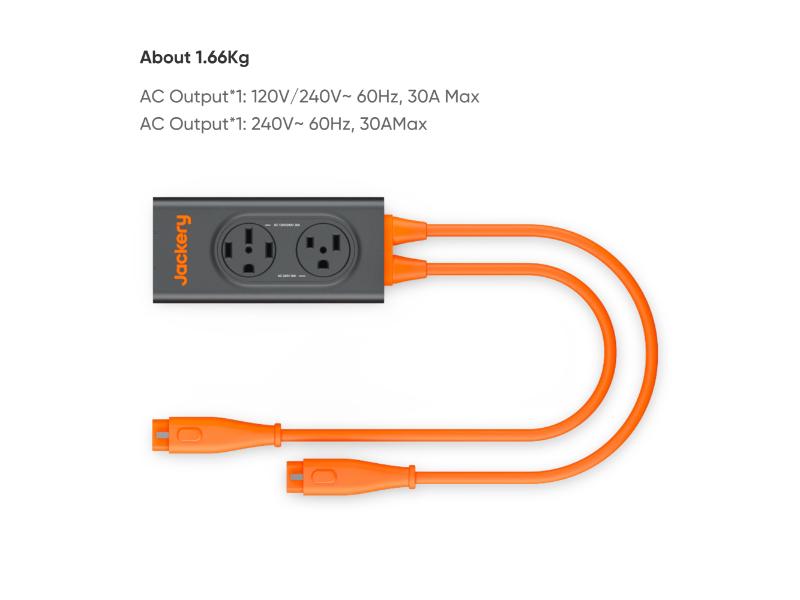

Specifications & Manual
|
Feature |
Specification |
|
Compatibility |
Jackery Explorer 2000 Plus / HomePower 3600 Plus |
|
Max Parallel Output |
6000W (2000 Plus) / 7200W (3600 Plus) |
|
Input Voltage/Current |
120V~ 60Hz, 30A Max |
|
Output Voltage |
120V / 240V Dual Voltage Support |
|
Output Port |
AC Output x1 (30A Max) |
|
Operating Temp |
-4°F to 113°F (-20°C to 45°C) |
|
Product Weight |
3.66 lbs (1.66 kg) |
|
Warranty |
5 Years (3 Standard + 2 Extended) |
FAQs
- Which models are compatible with this connector? It is exclusively designed for the Jackery Explorer 2000 Plus and the Jackery HomePower 3600 Plus. You must link two of the same model (e.g., two 2000 Plus units).
- Do I need this to use expansion batteries? No. Expansion battery packs plug directly into the side of the main unit. You only need this Connector if you are linking two main power stations together to increase voltage and wattage.
- Can I run my 240V well pump with this? Yes. This connector allows the two units to work in sync to provide the 240V power required by large pumps and appliances.
- What is the shipping date for pre-orders? Pre-ordered Jackery Connectors are scheduled to begin shipping on June 3.
- Is it safe to use in the snow? Yes, it features a low-temperature tolerance of -20°C (-4°F), making it ideal for winter emergency backup.

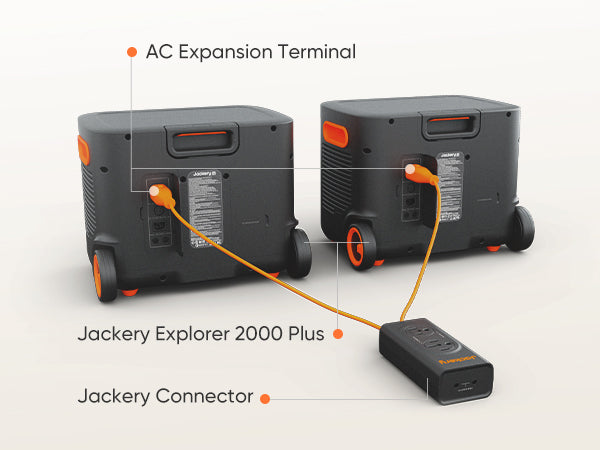

How to Connect: Parallel Setup Guide
Setting up your parallel power system is simple and requires no tools. Follow these steps to safely double your output:
- Power Off: Ensure both Jackery power stations (Explorer 2000 Plus or HomePower 3600 Plus) are turned off before connecting.
- Plug in the Connector: Insert the parallel cables from the Jackery Connector into the dedicated AC ports on the back of each unit.
- Secure the Connection: Ensure the plugs are firmly seated and locked into place.
- Power On: Turn on both power stations. The units will automatically communicate and synchronize their output.
- Connect Your Load: Plug your heavy-duty 240V or high-wattage appliance directly into the AC outlet on the Jackery Connector box.
⚠️ Important Safety Note: Only link two units of the same model. Do not attempt to mix an Explorer 2000 Plus with a HomePower 3600 Plus.
