Heavy-Duty Connectivity | Compatible with 100 Prime & 500X
Professional Solar Scaling Made Simple
The Jackery Anderson ecosystem is designed for users looking to build a permanent or high-power solar array. Whether you need more distance from your panels or you are linking multiple SolarSaga 100 Prime panels together, these connectors provide a secure, weatherproof, and "click-locked" connection. Please ensure the total system voltage does not exceed 120V.
- Secure "Click" Lock: Precision-engineered Anderson connectors provide an audible click to confirm a weather-resistant, secure link.
- High-Tolerance Design: Built to withstand outdoor exposure and maintain high-efficiency energy transfer.
- Direct Compatibility: Specifically tailored for the SolarSaga 100 Prime and SolarSaga 500X flagship panels.
Available Components, sold separately
- The Anderson Y Parallel Connector: Links two panels to increase current (Amps) while maintaining voltage. Ideal for faster charging in standard setups. Length is 7.5 inches.
- The Anderson Y Series Connector: Links two panels to increase voltage (Volts). Perfect for professional-grade high-voltage systems. Length is 7.5 inches.
Specifications
Jackery SolarSaga 100 Prime Installation Guide
Heavy-gauge wiring designed for minimal power loss over distance.
|
Accessory Type |
Length / Specification |
Compatibility |
|

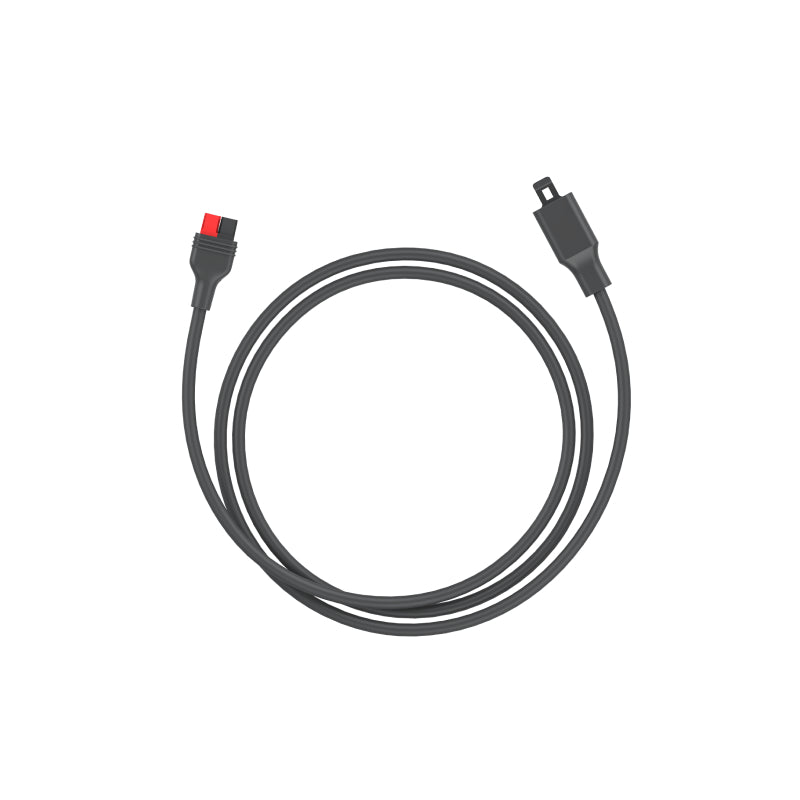

Anderson Extension Cable |
10 Feet (3.04 Meters) |
100 Prime / 500X |
|
Anderson Y Parallel Connector |
7.5 Inches |
100 Prime |
|
Anderson Y Series Connector |
7.5 Inches |
100 Prime |
|
Connector Type |
Industrial Anderson |
All "Prime" Series |
|
System Limit |
Max 120V Total System Voltage |
- |
|
Operating Temp |
-40°F to 185°F |
Extreme Weather Rated |
FAQs
- Which solar panels work with these cables? These are designed specifically for the SolarSaga 100 Prime and SolarSaga 500X. They utilize specialized Anderson connectors rather than the standard 8mm DC ports.
-
What is the difference between Series and Parallel connectors?
- Use Parallel to increase the charging current (ideal for most Jackery power stations).
- Use Series to increase the system voltage (required for specific high-voltage off-grid configurations).
- How do I know the connection is safe? The Anderson connector is designed to "click" into place. Simply attach the male head of the solar panel to the corresponding female head of the connector. Once you hear the "click," the connection is secure and locked.
- Can I link more than two panels? Yes, but please ensure your total system voltage does not exceed 120V to protect your power station and cables.
- Is the cable waterproof? The cable insulation is weather-resistant, but we recommend keeping the connector heads protected from direct submersion or standing water for long-term durability.
Visual Setup
Enhance your energy setup with ease and precision using these essential connectors
When you need to boost your system's voltage or current, the Jackery Anderson Y Parallel Connector and Jackery Anderson Y Series Connector are your go-to solutions. Designed exclusively for the Jackery 100 Prime, these connectors offer seamless and reliable connectivity. Simply attach the male head of the solar panel to the corresponding female head of the connector. Once you hear the satisfying "click" of the Anderson Connector, you can be confident that your connection is secure.
Applicable models: Explorer 600 Plus/ Explorer 1000 V2
A single DC input port supports a maximum of 2 SolarSaga 100 Prime panels in series. The Explorer 600 Plus supports up to 2 SolarSaga 100 Prime panels, and the Explorer 1000 V2 supports up to 4 SolarSaga 100 Prime panels. The connection diagram is as follows:
Applicable model: Explorer 1500
A single DC input port supports a maximum of 2 SolarSaga 100 Prime panels in parallel. The Explorer 1500 supports up to 4 SolarSaga 100 Prime panels. The connection diagram is as follows:
Applicable model: Explorer 1000 Plus
A single DC input port supports a maximum of four SolarSaga 100 Prime panels in a series–parallel combination. The Explorer 1000 Plus supports up to eight SolarSaga 100 Prime panels. The connection diagram is as follows:
Applicable models: Explorer 2000 Plus/Explorer 2000 Pro/Explorer 3000 Pro
A single DC input port supports a maximum of 6 SolarSaga 100 Prime panels in series and parallel combination. The Explorer 2000 Plus/Explorer 2000 Pro/Explorer 3000 Pro supports up to 12 SolarSaga 100 Prime panels. The connection diagram is as follows:
