200W Output | 25% Topcon Efficiency | IP68 Waterproof

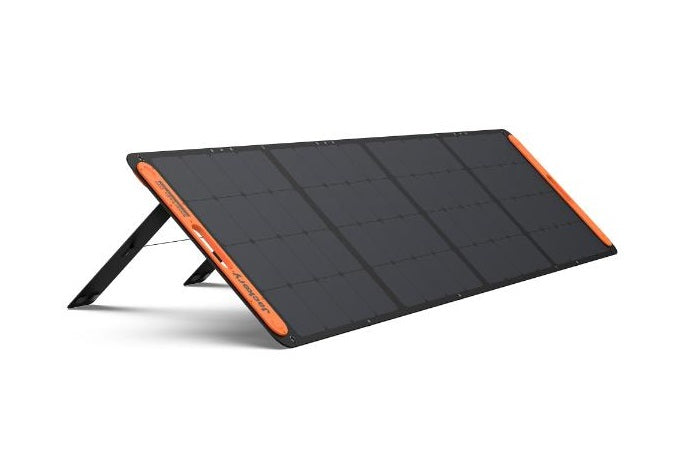

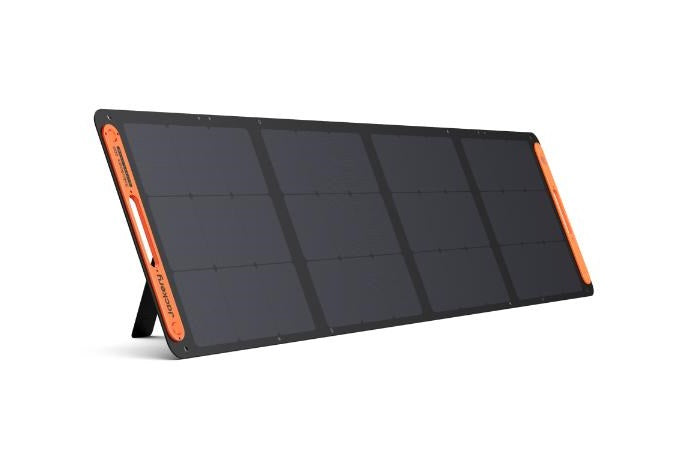

Maximize Your Off-Grid Potential The SolarSaga 200W is built for those who need rapid recharging in any environment. Utilizing industry-leading Topcon technology, it captures more energy in low-light and partially cloudy conditions than standard panels. Its bifacial design further enhances output by capturing reflected sunlight from the ground, ensuring your Jackery power station stays topped up faster.
Why Choose the SolarSaga 200W?
- Ultra-High Efficiency: Advanced Topcon cells deliver a ~25% conversion rate, turning more sunlight into usable power even on winter days or in hazy conditions.

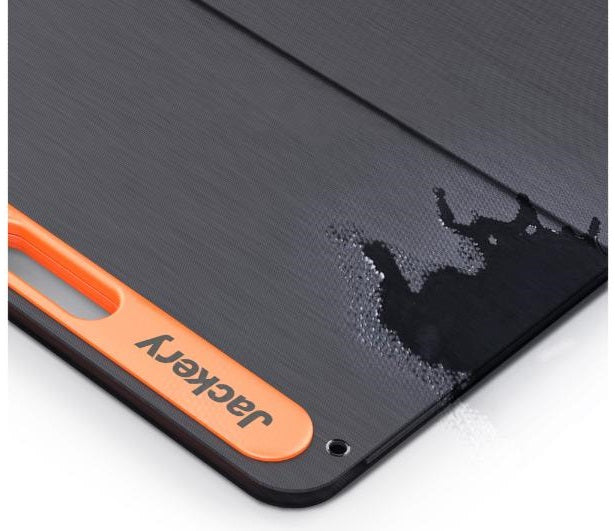

- IP68 All-Weather Ready: Fully dustproof and waterproof. It is designed to withstand rain, snow, and sand—making it the perfect match for the Explorer 1500 Ultra.
- Streamlined Portability: The newest 200W model eliminates the need for a separate bag. It features magnetic pads that snap the panel shut and an integrated handle for "grab-and-go" convenience.
- SolarTarget Alignment: Includes the built-in SolarTarget gauge, allowing you to manually angle the panel perfectly toward the sun for maximum absorption.
- Direct Device Charging: Includes a 3-meter multi-functional cable with built-in USB-A and USB-C ports, letting you charge phones or tablets directly from the panel without a power station.
- Rugged Build: Constructed with an ETFE-laminated case for enhanced durability and a wide operating temperature range (14°F to 149°F).
Specifications & Manual
Charging Estimates (Full Sunlight)
- Explorer 2000 Pro (via 6x 200W): ~2.5 Hours
- Explorer 1500 Ultra (via 4x 200W): ~2.7 Hours
- Explorer 1000 (via 1x 200W): ~7.5 - 9 Hours
Optimized for the Explorer 2000 Pro/Plus and 1500 Ultra series.
|
Category |
Specification |
|
Peak Power (Pmax) |
200W ± 5% |
|
Cell Type |
Topcon Monocrystalline |
|
Conversion Efficiency |
~25% |
|
Waterproof Rating |
IP68 |
|
Output Ports |
1x USB-C, 1x USB-A (on included hub) |
|
Voltage (Vmp) |
20V ± 5% |
|
Current (Imp) |
10A ± 5% |
|
Folded Size |
24.2 x 21.7 x 1.6 in |
|

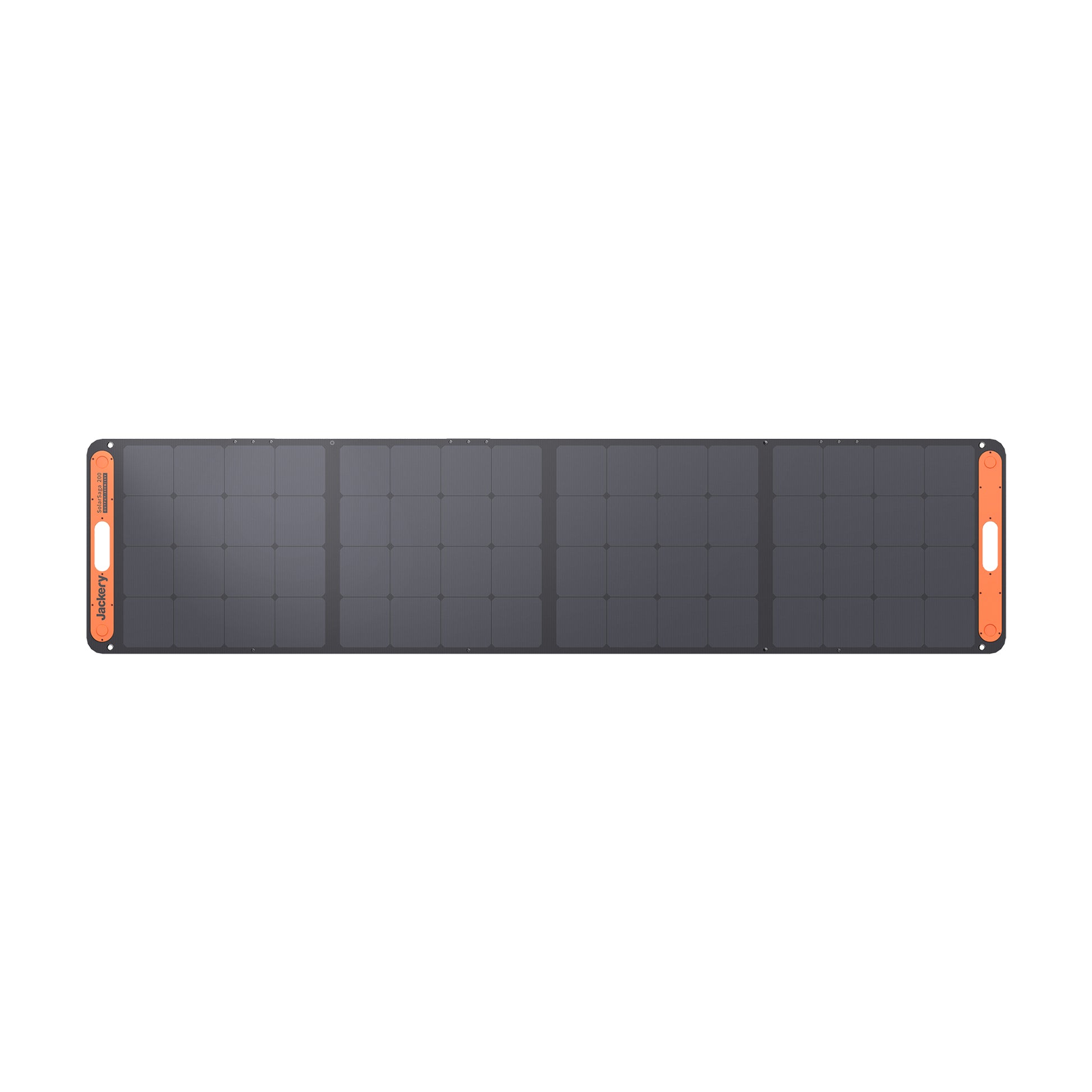

Unfolded Size |
92.1 x 21.7 x 1.0 in |
|
Weight |
14.1 lbs (6.4 kg) |
|
Warranty |
5 Years (3 Standard + 2 Extension) |
FAQs
- Why am I not getting a full 200W of power? 200W is a laboratory rating. Real-world output depends on sunlight intensity, panel angle, and temperature. Use the SolarTarget to ensure the panel is directly perpendicular to the sun for the best results.
- Is this the version with the bag and 3 legs? No. Jackery has updated this model to enhance portability. The new version features 2 support legs and a magnetic folding design with a built-in handle. It no longer requires an external bag, making it faster to deploy.
- Is it safe to leave in the rain? It is IP68 rated, meaning it is highly water-resistant and protected against splashes. However, do not submerge it in water, and ensure the zipper on the cable pocket is closed to protect the ports.
- Can I charge my phone directly? Yes. The included 3-meter cable features a hub with USB-C and USB-A ports, allowing you to charge small electronics without needing a power station.
-
How do I clean the surface? Use a soft, damp cloth to remove dust. For stubborn debris like bird droppings, clean them immediately to avoid "hot spots" that can reduce the panel's efficiency.
