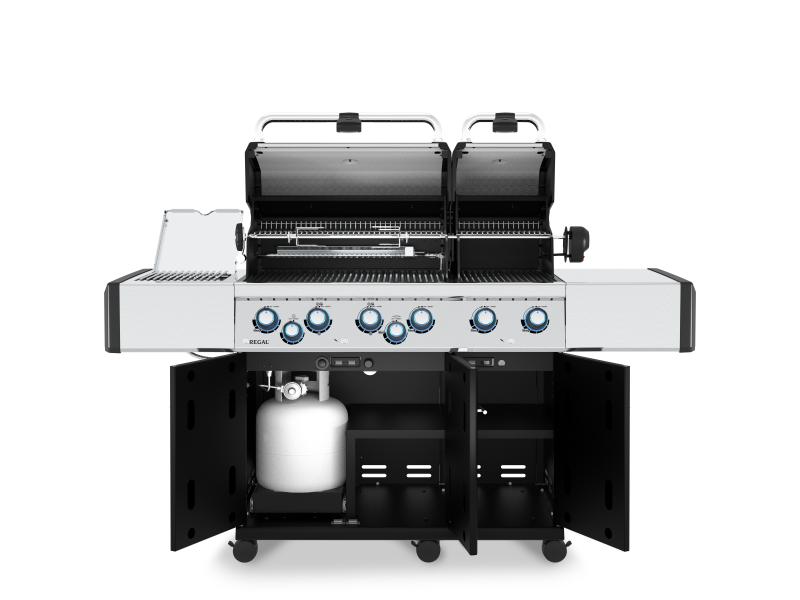

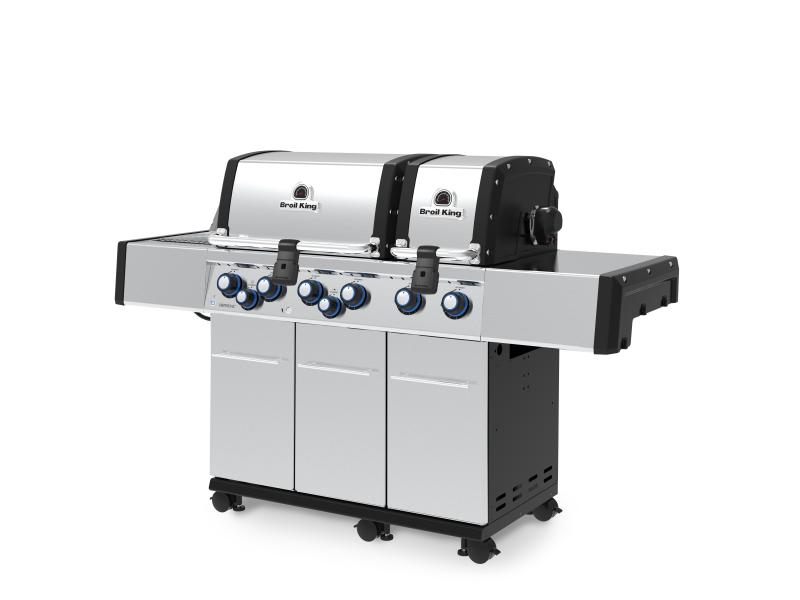

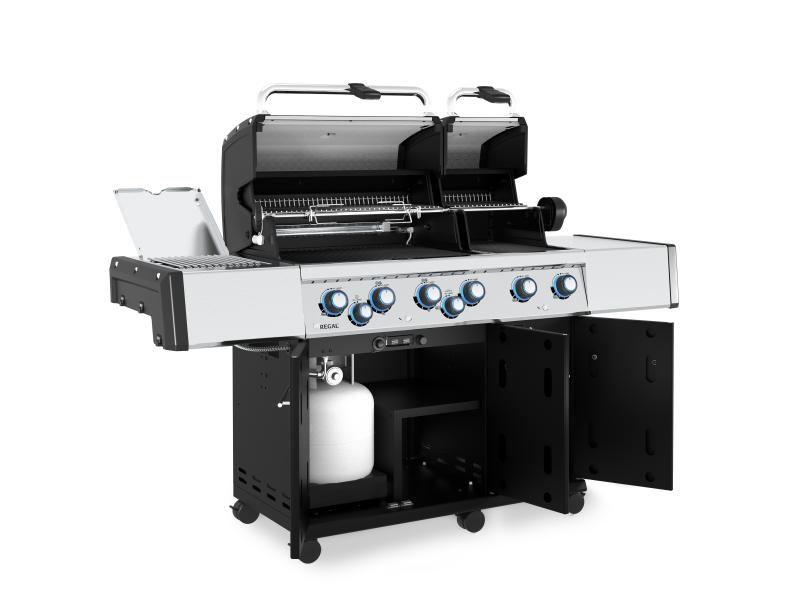

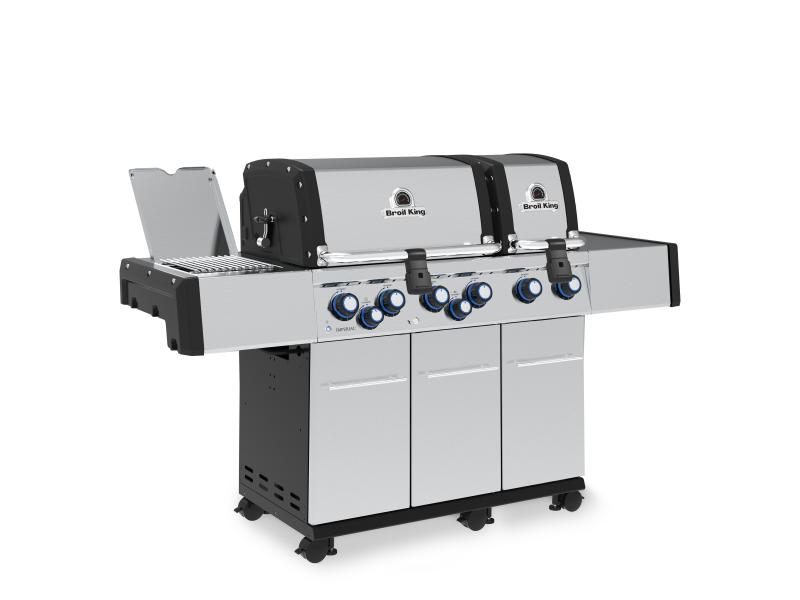

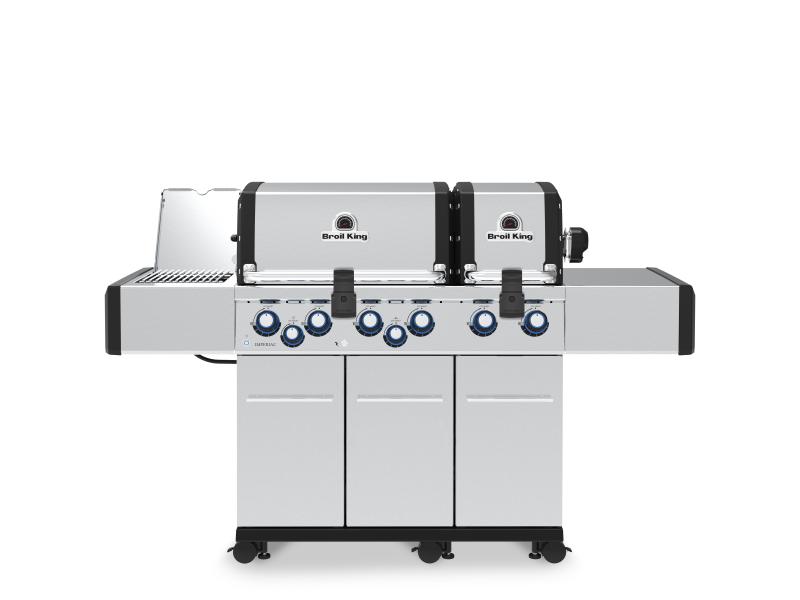

The Broil King Regal™ S 690 Pro Infrared is designed for the griller who demands versatility without compromise. Featuring two completely independent ovens, this powerhouse allows you to roast a whole chicken in one chamber while searing steaks at high heat in the other. With high-performance Dual-Tube™ burners and a sophisticated infrared system, it delivers professional results every time.
- Dual-Oven Design: Two separate cookboxes for ultimate temperature flexibility.
- Massive Capacity: 1,030 sq. in. of total cooking space, perfect for large gatherings.
- Pro-Grade Grids: Includes both solid 9mm stainless steel and heavy-duty reversible cast iron grids.
- Night Vision: Integrated control knob lights for effortless grilling after sunset.
Model #'s
- Propane: BK957944
- Natural Gas: #BK957947
Features
- Independent Ovens: Separate lid and burner systems for simultaneous high and low-temp cooking.
- Infrared Technology: Advanced infrared side burner for steakhouse-quality searing.
- Flav-R-Wave™ System: Stainless steel vaporization system that protects burners and enhances BBQ flavor.
- Illuminated Knobs: Built-in control knob lights for precision heat adjustment in low light.
- Side Shelves: Premium 304 Stainless Steel for durability and easy cleaning.
- Burner Tech: Dual-Tube™ burners engineered for consistent front-to-back flame and heat distribution.
- Mobility: Heavy-duty locking casters for easy placement on your patio or deck.
- Durability: High-grade stainless steel components designed to withstand the elements year-round.
Specifications & Manuals
Regal S 690 Propane Owner's Manual
Regal S 690 Natural Gas Owner's Manual
|
Feature Category |
Specification Details |
|
Total Cooking Space |
1,150 sq-in / 7,419 sq cm (Includes IR grid & warming racks) |
|
Primary Large Cookbox |
500 sq-in / 3,225 sq cm |
|
Primary Small Cookbox |
250 sq-in / 1,613 sq cm |
|
Main Burner Output |
60,000 BTU |
|
Burner Type |
Six stainless steel Dual-Tube™ burners |
|
Side Burner |
10,000 BTU Infrared + 8 mm stainless steel grid |
|
Rotisserie Burner |
15,000 BTU Stainless steel rear burner + Premium Kit |
|
Cooking Grids |
Solid 9mm stainless steel cooking grids |
|
Flavour System |
304 stainless steel Flav-R-Wave™ |
|
Cookbox Design |
Two completely separate cookboxes |
|
Cookbox Construction |
304 stainless steel with cast aluminum end caps |
|
Lid Design |
Roll-action lids with cast aluminum end caps |
|
Heat Control |
Linear-flow™ valves with 180° precision control |
|
Ignition |
Sure-Lite™ electronic ignition system |
|
Cabinet & Doors |
Rigid steel cabinet with stainless steel doors and lids |
|
Side Shelves |
304 stainless steel side shelves |
|
Lighting |
Two COB light strips and durable resin construction |
|
Thermometer |
Premium integrated thermometer |
|
Mobility |
Large 3-in / 7.6 cm locking casters |
|
Tank Storage |
Pull-out tank drawer (Propane models) |
|
Build Quality |
Rust-resistant zinc-coated steel / Premium powder-coat finish |
Warranty
