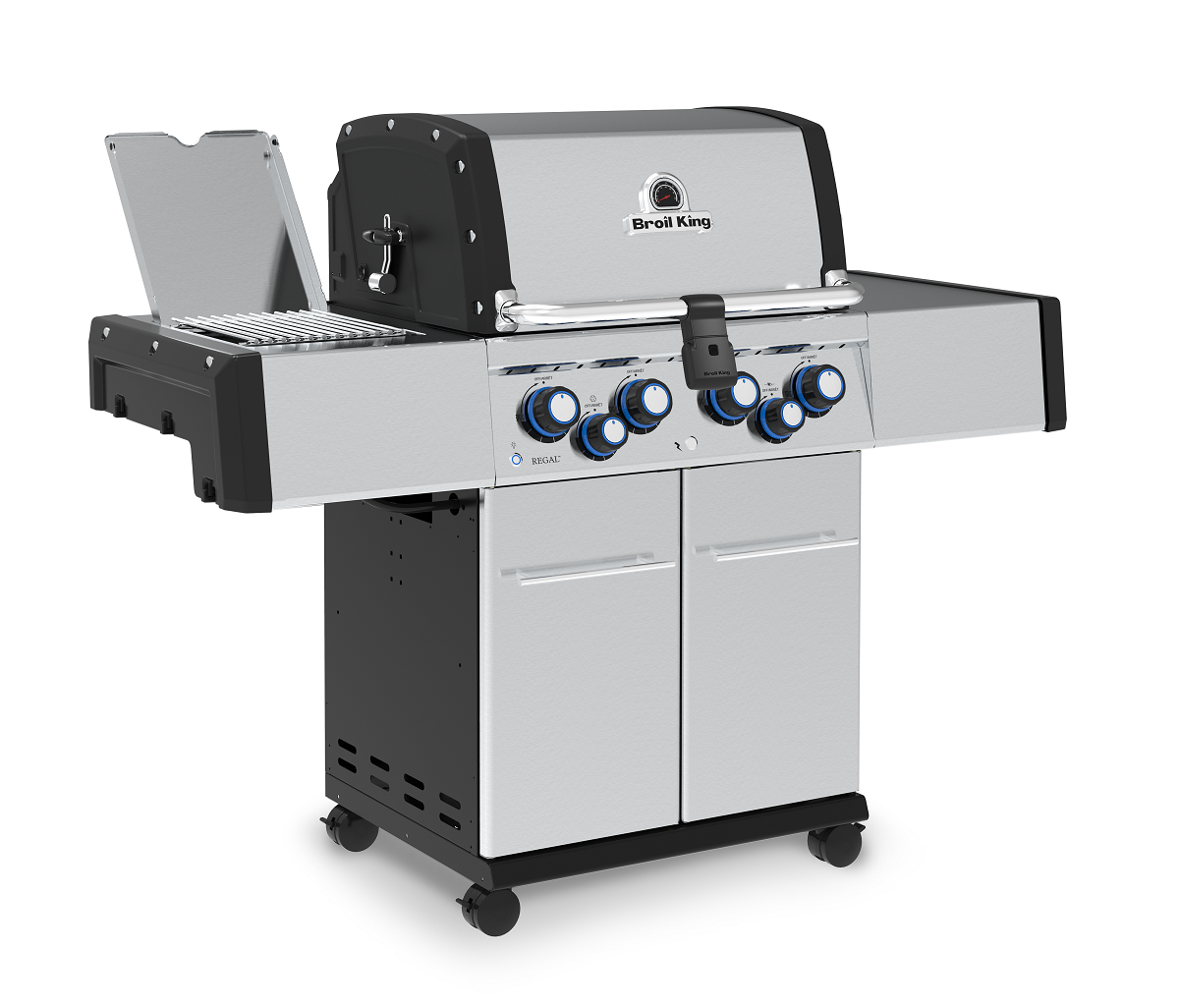

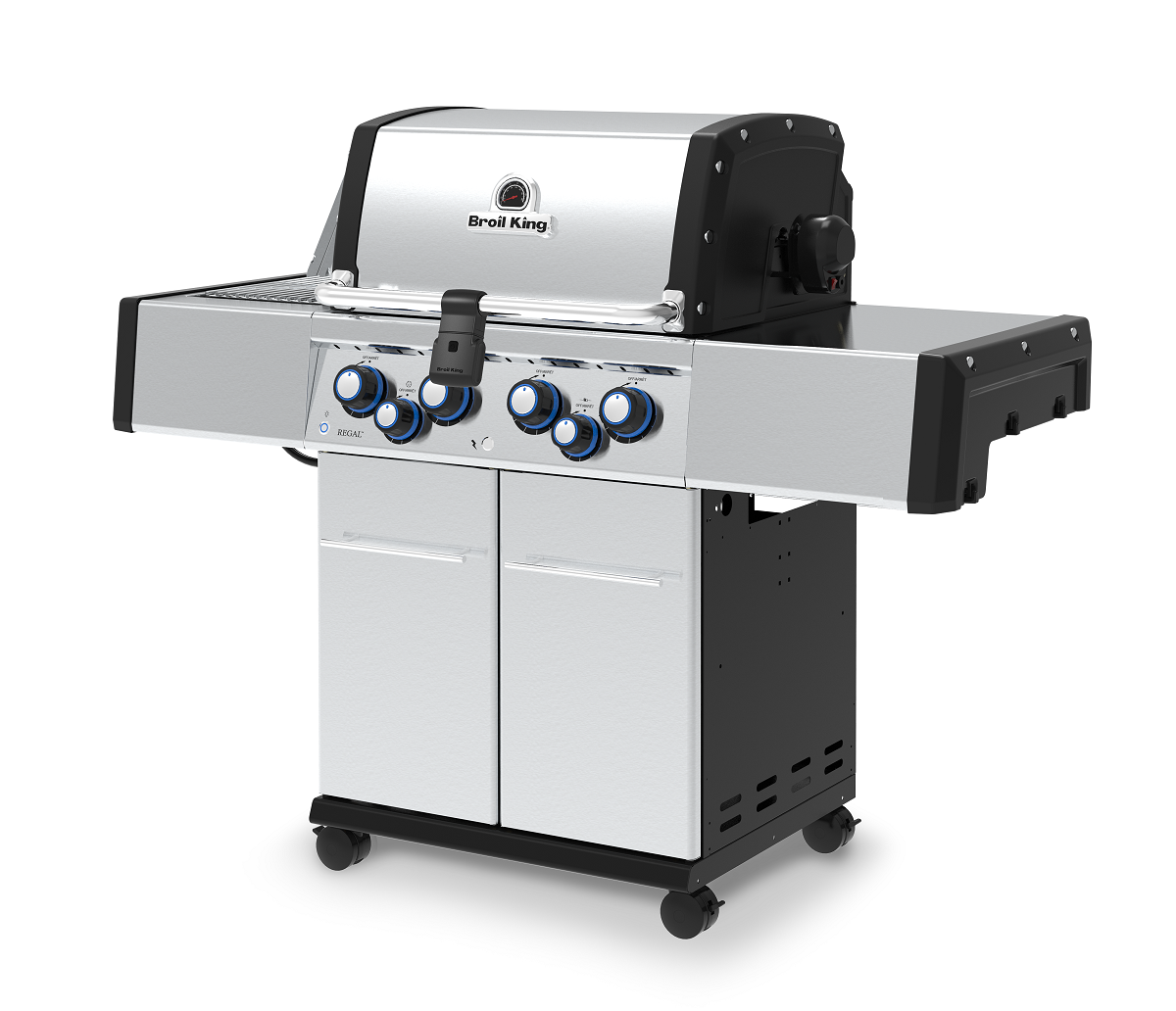

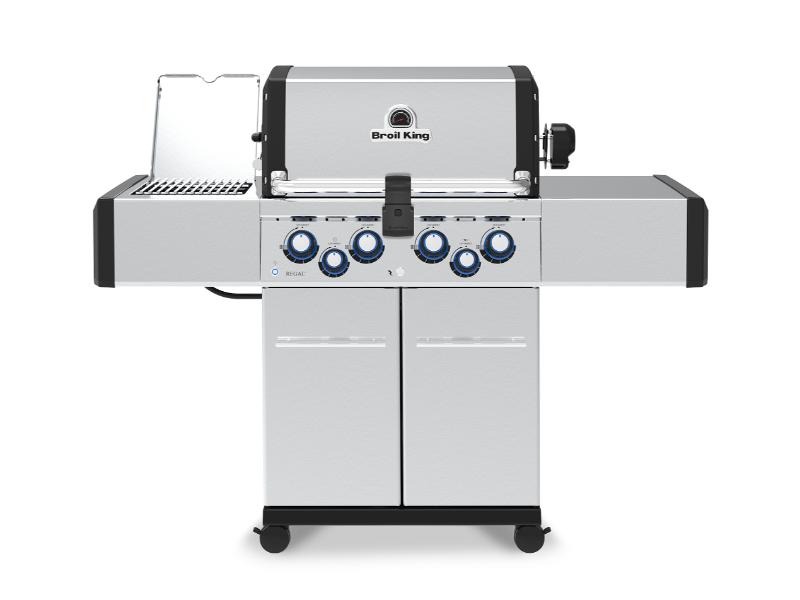

Premium Construction & Cooking Performance
- Made in the USA with die-cast aluminum and high-grade stainless steel for exceptional durability and heat retention.
- 695 sq. in. total cooking area, including a porcelain-coated warming rack for added convenience.
- Solid 9mm stainless steel cooking grids provide outstanding heat transfer and long-lasting strength.
- Deep, durable cook box is designed to maintain even, consistent heat for reliable, precise cooking control.
Powerful Burner System

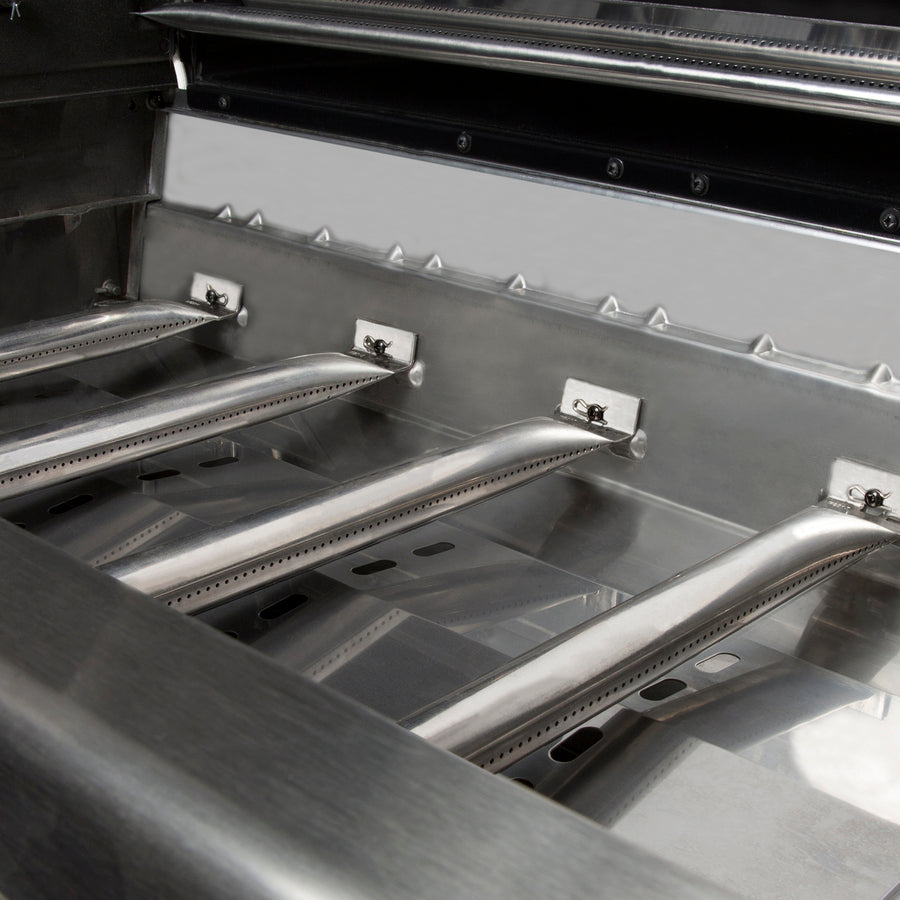

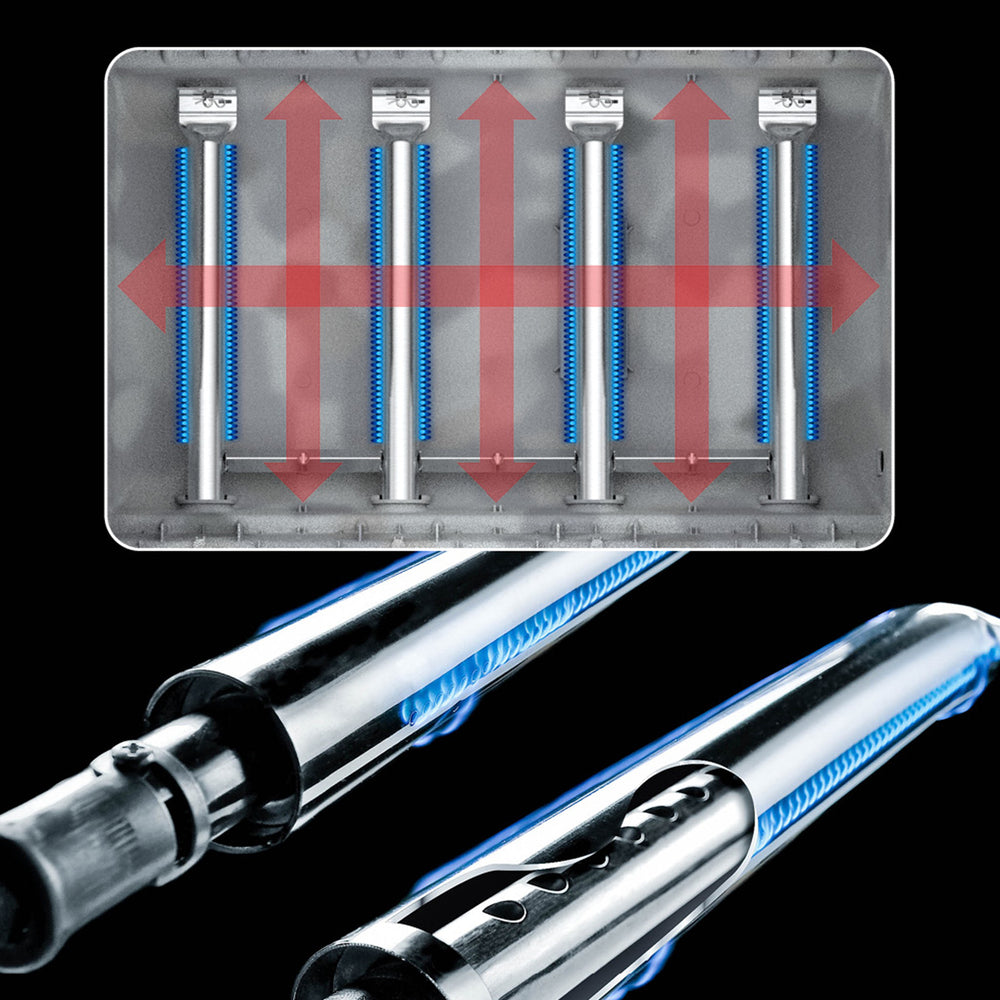

- Equipped with four patented Dual-Tube™ stainless steel burners for superior, even heat distribution.
- Each burner delivers two rows of flame, minimizing hot spots and maximizing coverage across the grill surface.

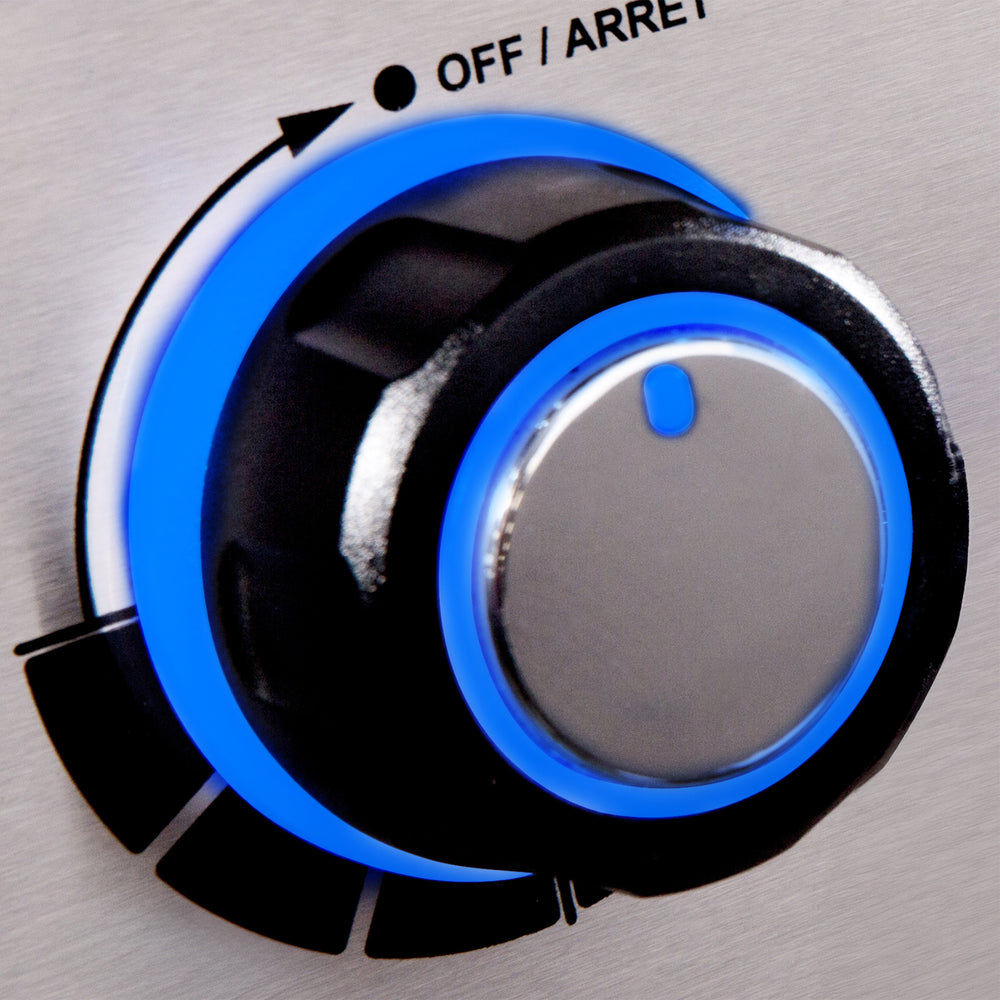

- Linear-Flow™ valves with 180° Sensi-Touch™ control knobs allow infinite heat adjustment for searing, roasting, or low-and-slow cooking.
Enhanced Flavor & Heat Technology
- Signature Flav-R-Wave™ cooking system distributes heat evenly, protects burners from drippings, and vaporizes juices for authentic smoky barbecue flavor.
- Built for consistent performance across the entire cooking surface.
Rotisserie & High-Heat Searing Power

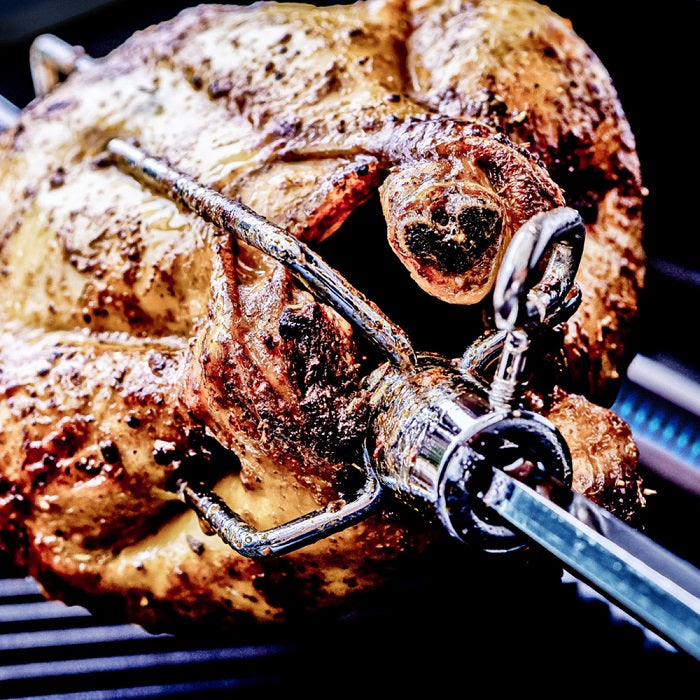

- 15,000 BTU stainless steel rear rotisserie burner with premium spit rod and motor for perfectly even roasting.

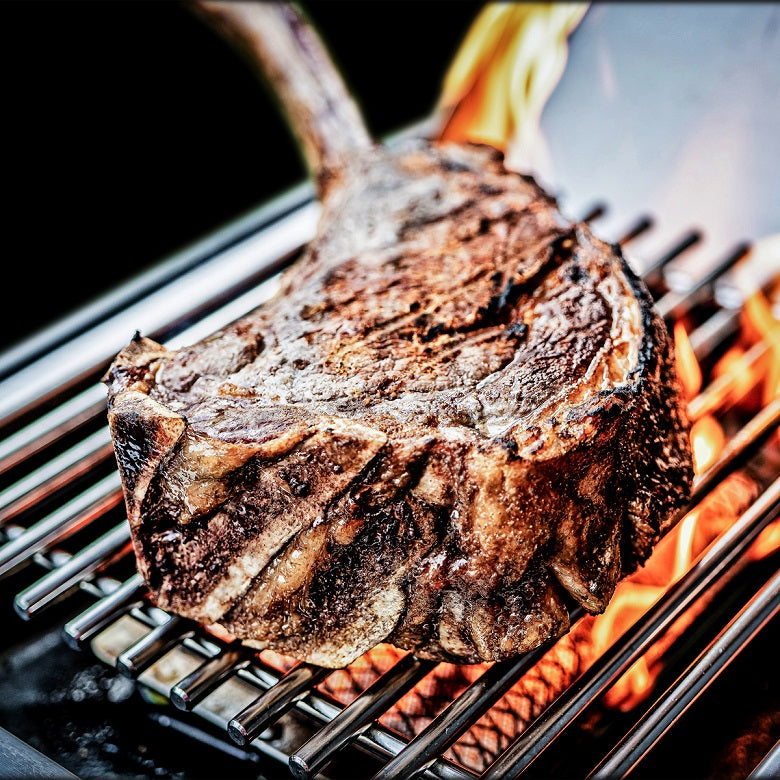

- 15,000 BTU infrared searing side burner with a heavy 9mm stainless steel grate—reaching up to 1,700°F for restaurant-quality searing.
Dimensions
Assembled:
- Height: 49.2"
- Width: 56.3"
- Depth: 23.8"
Boxed:
- Height: 26.5"
- Width: 40"
- Depth: 24.25"
Weight: 189.0 lbs
Specifications
|
Performance |
50,000 BTU main burner output |
|
Burners |
Four stainless steel Dual-Tube™ burners |
|
Side Burner |
10,000 BTU infrared side burner with solid 8 mm stainless steel cooking grid |
|
Rotisserie Burner |
15,000 BTU stainless steel rear rotisserie burner and premium rotisserie kit |
|
Cooking Grids |
Solid 9mm stainless steel cooking grids |
|
Flavour System |
304 stainless steel Flav-R-Wave™ cooking system |
|
Total Cook Space |
815 sq-in / 5,258 sq cm total cooking space including infrared cooking grid and warming racks |
|
Primary Cook Space |
500 sq-in / 3,226 sq cm primary cook space |
|
Thermometer |
Premium thermometer for accurate temperature readings |
|

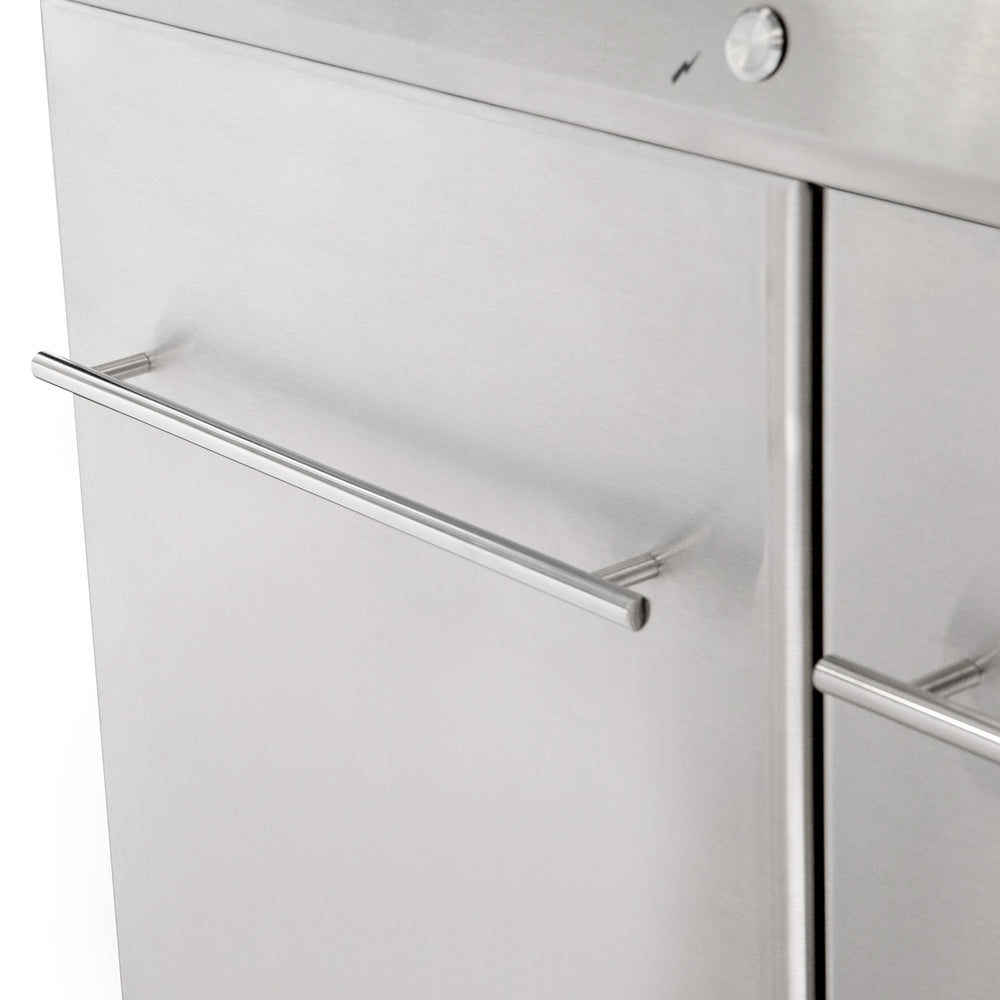

Cabinet and Lid |
Rigid steel cabinet with stainless steel doors and lids |
|
Heat Control |
Linear-flow™ valves with 180° precision control |
|

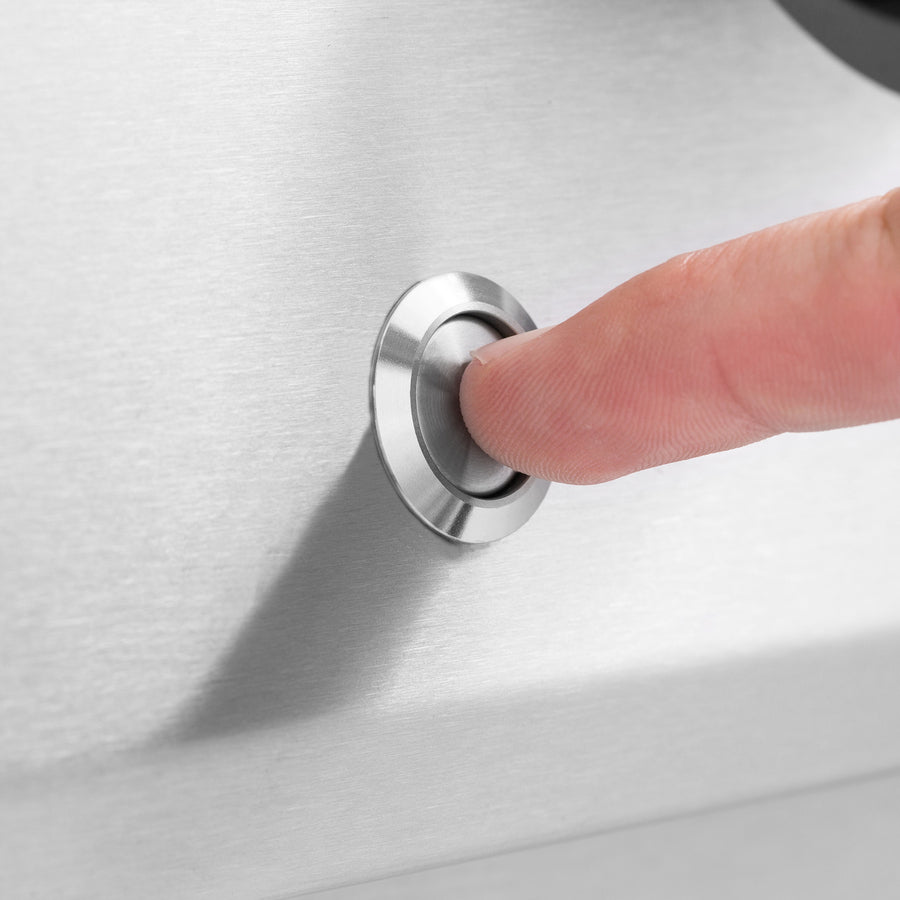

Ignition |
Sure-Lite™ electronic ignition system |
|
Durability |
304 stainless steel cookbox with cast aluminum end caps |
|
Lid Design |
Roll-action lids with cast aluminum end caps |
|

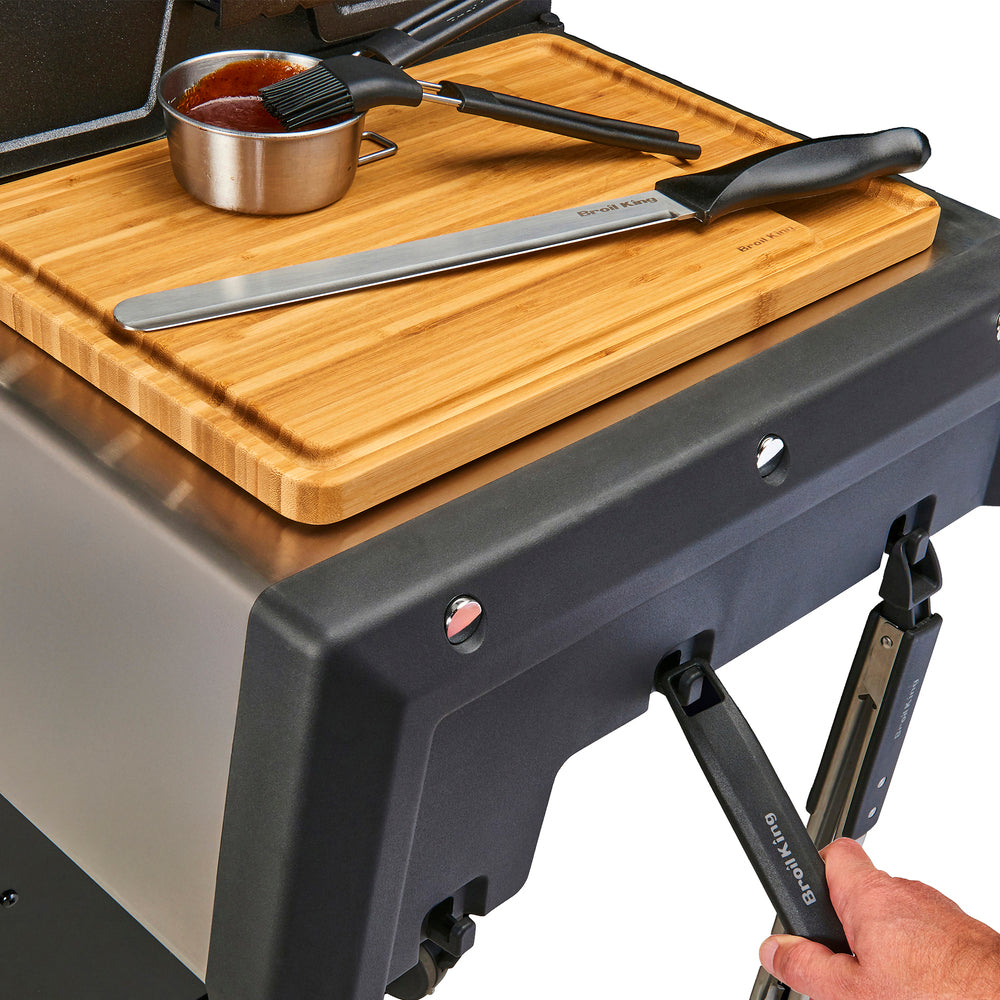

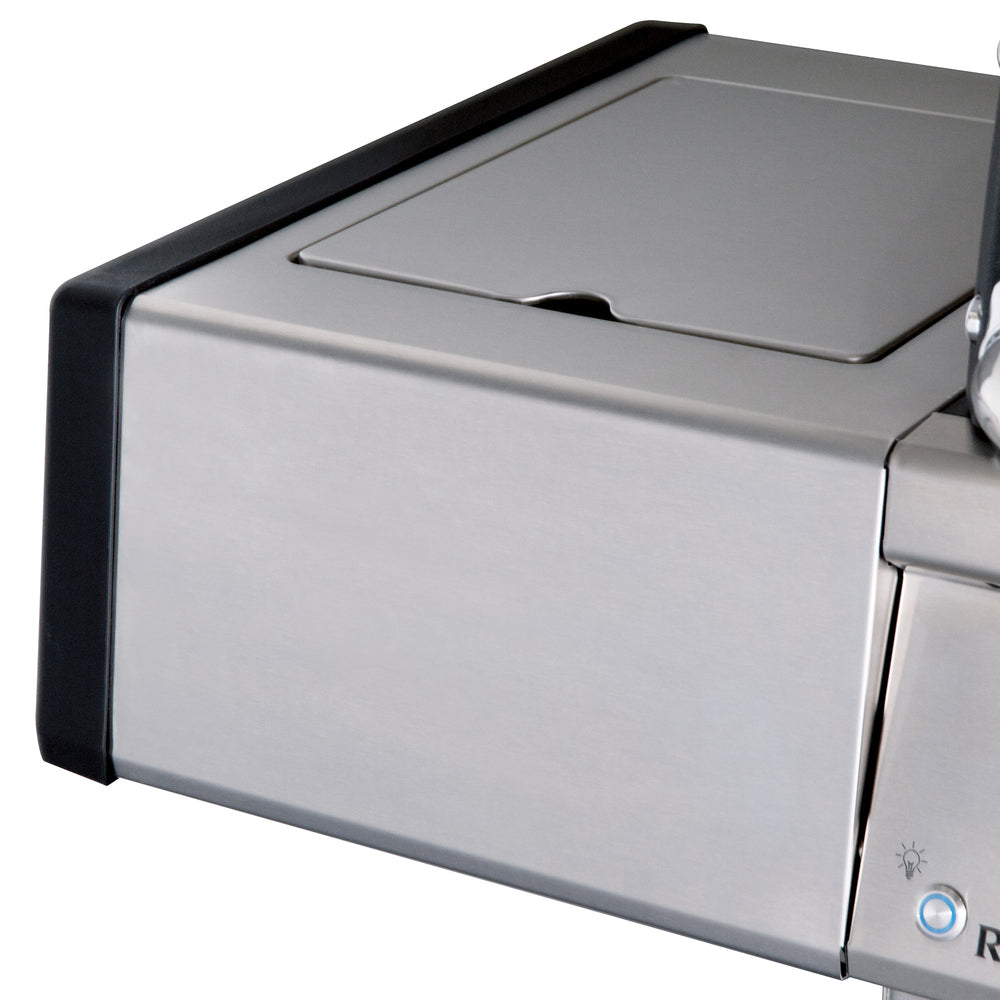

Side Shelves |
304 stainless steel side shelves |
|

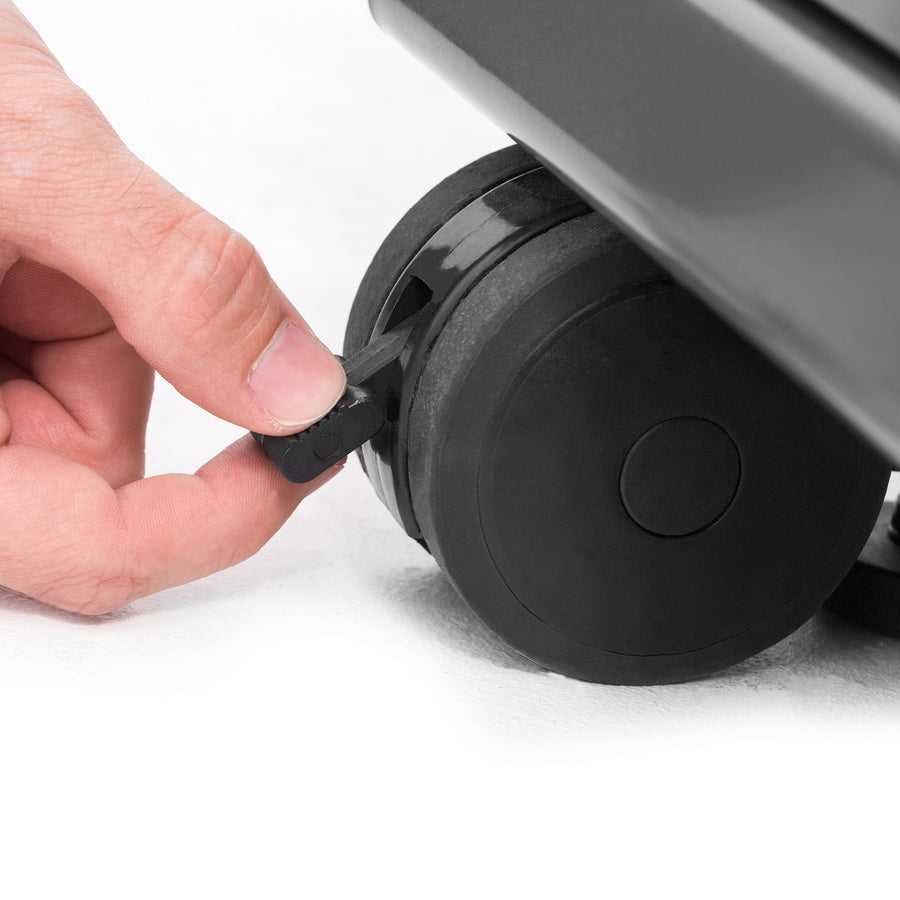

Casters |
Large 3-in / 7.6 cm locking casters |
|
Construction |
Rust-resistant zinc-coated steel components |
|
Tank Drawer |
Propane models have a pull-out tank drawer |
|

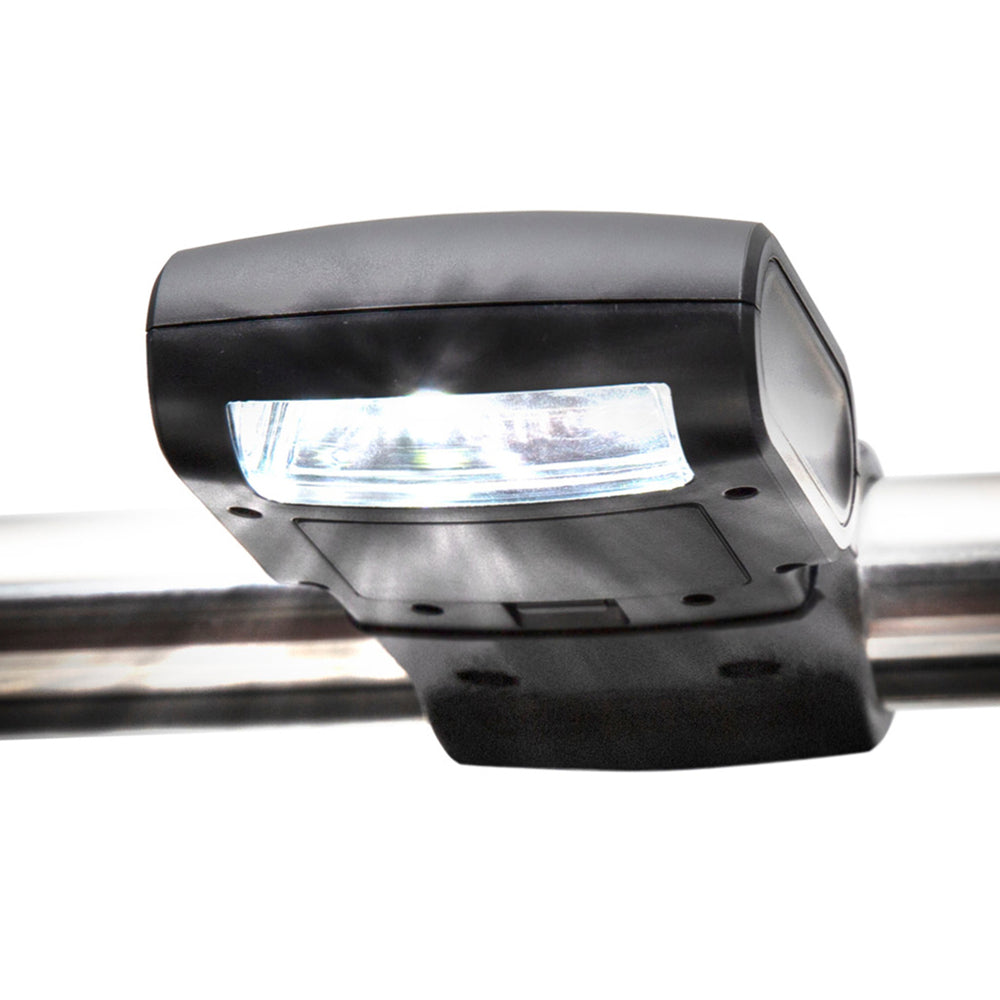

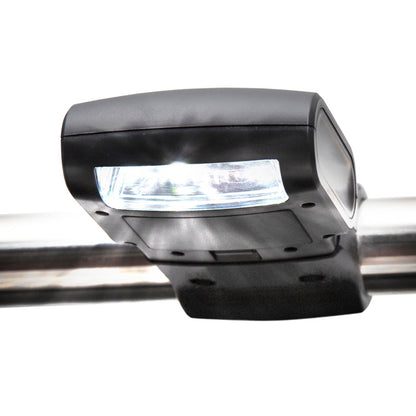

Built-in Lights |
Two COB light strips and durable resin construction |
Manuals
Broil King S490 - Propane Manual (BK956944)
Broil King S490 - Natural Gas Manual (BK956947)
